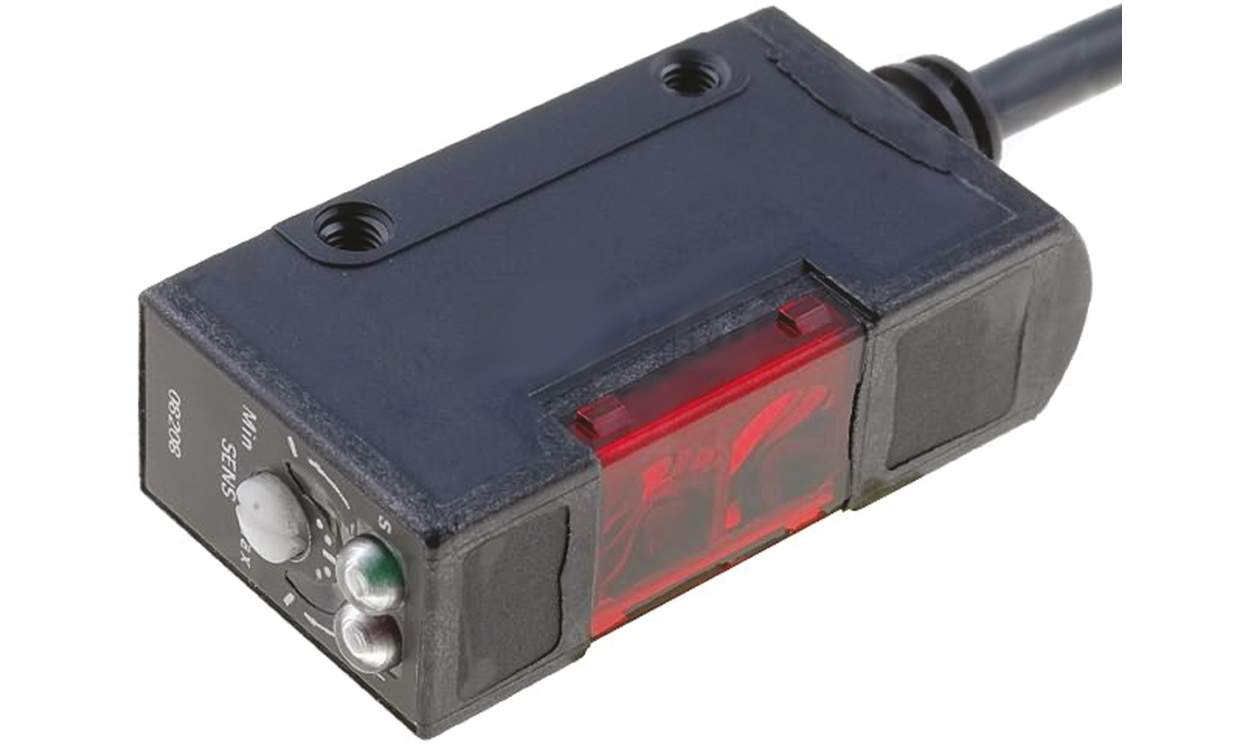

OMRON E3S-AD82 | Diffuse Photoelectric Sensor | 700 mm, PNP, Pre-Wired Cable
A block-style diffuse photoelectric sensor from OMRON, the E3S-AD82 offers a 700 mm detection range. Output is PNP, with a pre-wired cable. Operating temperature spans -25°C to +55°C; the housing is PBT and protection is IP67. The sensor uses an infrared light source and responds in 500 μs.
- Maximum DC voltage: 30V
- Maximum current: 100 mA
- Series: OMRON E3S
- Detection range: 700 mm
- Output: PNP
- Connection: pre-wired cable
- Detailed Description
- Specifications
- Downloads
E3S-A High Performance Sensors
PBT Housing, denaturated polyallyate lens, IP67 sealed
PNP and NPN output configurations
Light ON/dark ON operation
Two-turn sensitivity adjustor
Light and stability LED indication
Operating temperature range -25° → +55°C
Short circuit and reverse polarity protection
Mounting bracket with fasteners included
| Brand | Omron |
| Series | E3S |
| Detection Type | Diffuse |
| Detection Range | 700 mm (27.6 in) |
| Sensor Style | Block |
| Output Type | PNP |
| Light Source | Infrared |
| Response Time | 500 μs |
| Maximum DC Voltage | 30V |
| IP Rating | IP67 |
| Maximum Current | 100 mA |
| Minimum Operating Temperature | -25 °C (-13 °F) |
| Housing Material | PBT |
| Maximum Operating Temperature | +55 °C (131 °F) |
| Terminal Type | Pre-Wired |
