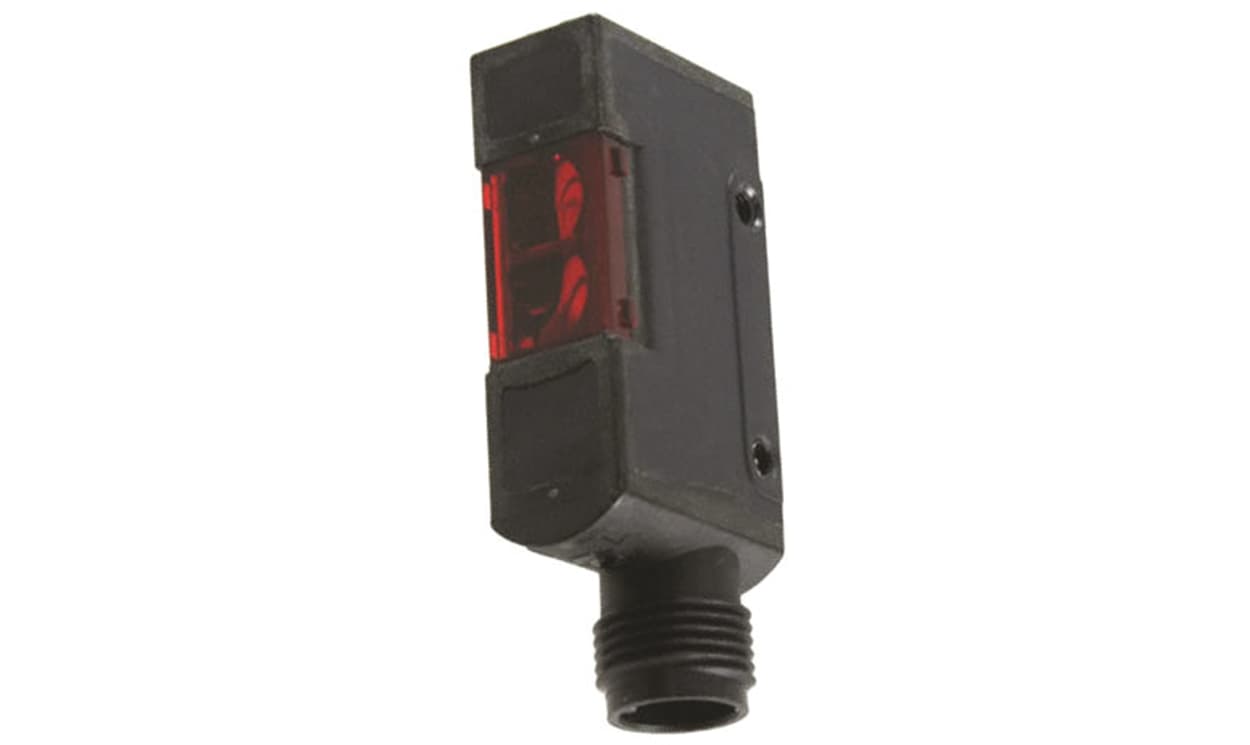

Omron E3S-AD86, Diffuse Photoelectric Sensor, Block Sensor, 10 mm → 200 mm Detection Range

Part Number : E3S-AD86

Availability: Sold out

Detailed Description
Specifications
Downloads

Omron E3S Series Photoelectric Sensor, 10mm to 200mm Detection Range, IP67 - E3S-AD86

This photoelectric sensor is designed for advanced detection, making it suitable for a range of automation applications. It operates effectively within a detection range of 10mm to 200mm, crucial for precise positioning and object sensing in industrial settings. Its robust construction allows for dependable performance in challenging conditions.

Features & Benefits

• Utilises a diffuse detection method for enhanced accuracy
• Incorporates a PNP output for effortless integration
• Compatible with M12 connectors for straightforward installation
• Offers an IP67 rating for protection against dust and water
• Features a quick response time of 500μs for efficient operations
• Operates across a wide temperature range for versatility

Applications

• Used for object detection in packaging machinery
• Employed in conveyor systems for accurate item tracking
• Suitable for presence detection in assembly lines
• Applied in robotic automation for precise positioning
• Ideal for foreign object detection in production processes

How do I install this device?

Align it correctly with the sensor’s detection area and connect to the M12 connector, following the provided wiring instructions.

Can it be used with existing automation systems?

Yes, it features a PNP output and M12 connectivity that facilitate easy integration with various current setups.

What is the maximum voltage it can handle?

This device can manage a maximum DC voltage of 30V, making it suitable for a variety of systems.

Brand	Omron
Sensor Style	Block
Detection Type	Diffuse
Detection Range	10 mm → 200 mm
Output Type	PNP
Electrical Connection	M12 Connector
Switching Mode	Light / Dark switching
Maximum DC Voltage	30V
Terminal Type	4 Pin Connector
Light Source	LED
IP Rating	IP67
Maximum Current	30 mA
Response Time	500 μs
Housing Material	PBT
Maximum Operating Temperature	+55°C
Series	E3S
Minimum Operating Temperature	-25°C
Standards Met	CE
Thread Size	M12

Omron E3S-AD86, Diffuse Photoelectric Sensor, Block Sensor, 10 mm → 200 mm Detection Range

DOWNLOAD CATALOG

E3S-AD86 Datasheet 0900766b81398ef6
