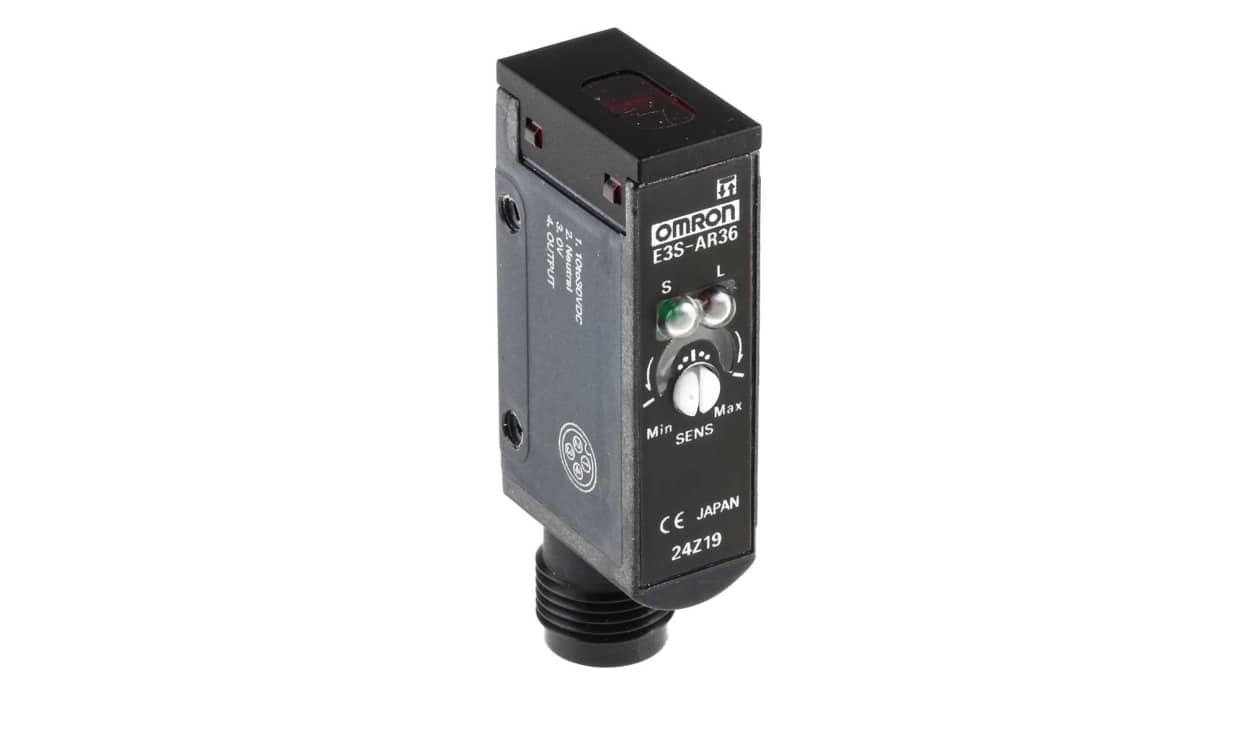

OMRON E3S-AR36 | Retroreflective Photoelectric Sensor | 100 mm to 2 m, PNP, M12 Connector
A block-style retroreflective photoelectric sensor from OMRON, the E3S-AR36 offers a 100 mm to 2 m detection range. Output is PNP, with an M12 connector. Operating temperature spans -25°C to +55°C; the housing is PBT and protection is IP67. The sensor uses an LED light source and responds in 500 μs.
- Maximum DC voltage: 30V
- Maximum current: 100 mA
- Series: OMRON E3S
- Detection range: 100 mm to 2 m
- Output: PNP
- Connection: M12 connector
- Detailed Description
- Specifications
- Downloads

Omron E3S Series Photoelectric Sensor, 100mm to 2m Detection Range, PNP Output Type - E3SAR36
Features & Benefits
• LED photoelectric sensor delivers reliable performance in various conditions
• High temperature sensor operates in environments up to +55°C
• Response time of 500μs ensures quick object detection
• Compact design permits easy integration into existing systems
Applications
• Ideal for automation in assembly lines and conveyor systems
• Utilised in quality control processes for accurate inspections
• Can be used in robotics for precise positioning
• Suitable for use in temperature-sensitive environments
What type of connection does the sensor support?
What is the maximum current specification for this device?
How does this sensor perform in harsh environmental conditions?
What kind of maintenance does this sensor require?
Can the sensitivity be adjusted based on different applications?
| Brand | Omron |
| Series | E3S |
| Detection Type | Retroreflective |
| Detection Range | 100 mm → 2 m |
| Sensor Style | Block |
| Output Type | PNP |
| Electrical Connection | M12 Connector |
| Light Source | LED |
| Response Time | 500 μs |
| Maximum DC Voltage | 30V |
| IP Rating | IP67 |
| Maximum Current | 100 mA |
| Minimum Operating Temperature | -25 °C (-13 °F) |
| Housing Material | PBT |
| Maximum Operating Temperature | +55 °C (131 °F) |
