Omron E3S-DBP22T, Retroreflective Photoelectric Sensor, Block Sensor, 0 → 700 mm Detection Range

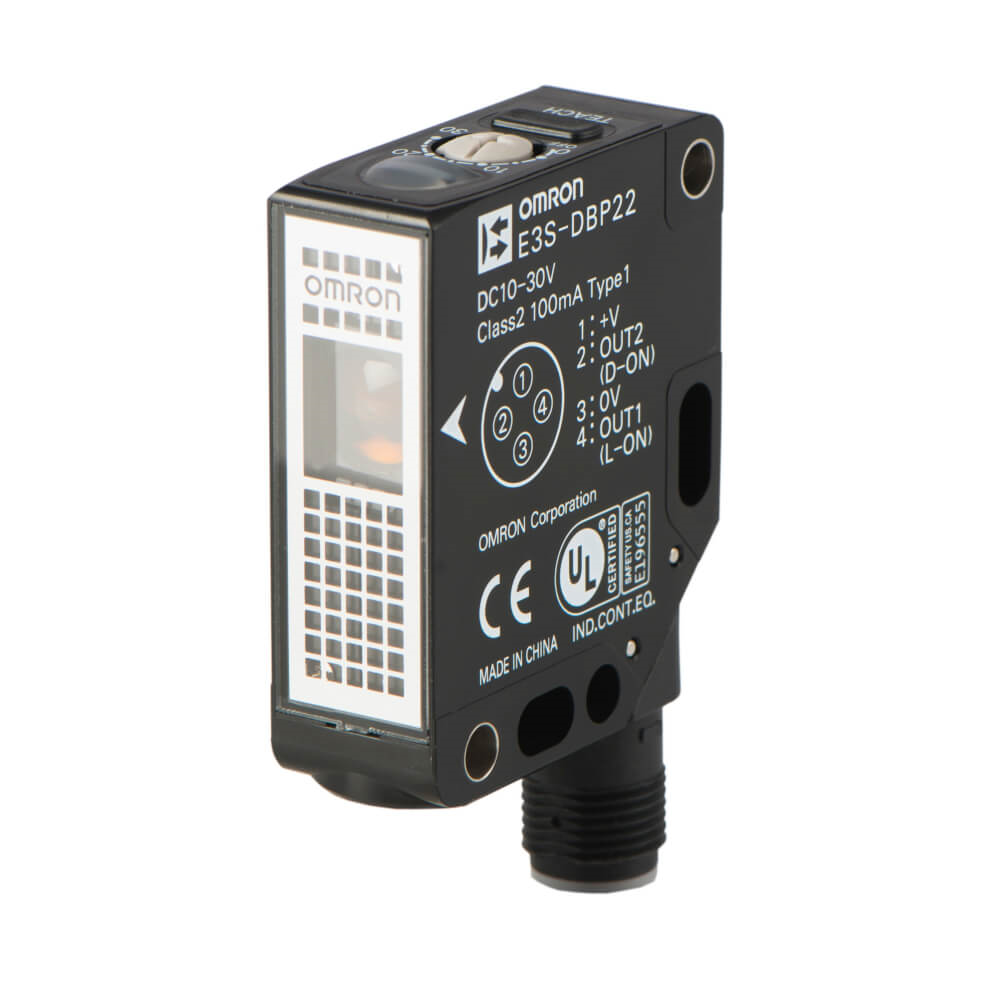

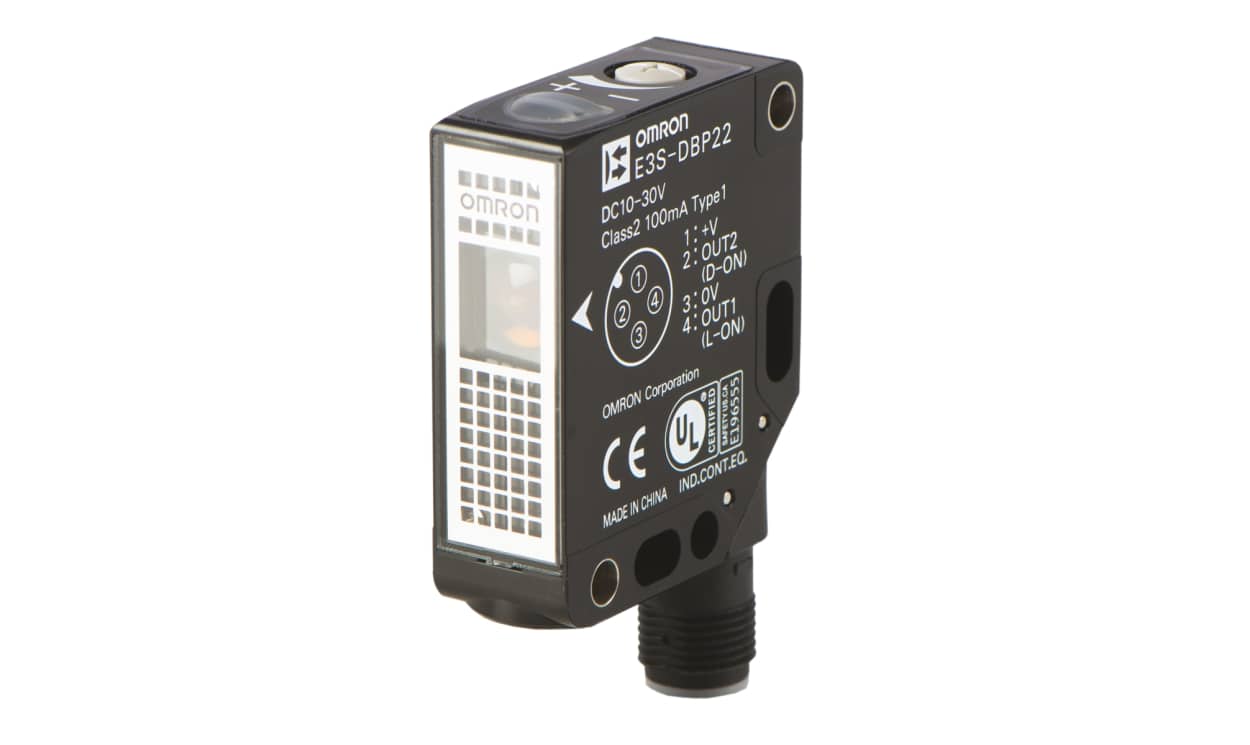

Name: Omron E3S-DBP22T, Retroreflective Photoelectric Sensor, Block Sensor, 0 → 700 mm Detection Range
Brand: OMRON
SKU: E3S-DBP22T
Availability: OutOfStock

Part Number : E3S-DBP22T

Photoelectric sensor, rectangular shape, red LED, transparent object detection, narrow beam, multi-turn trimmer, 0.7m, PNP, antivalent output, M12 conn.

Availability: Sold out

Detailed Description
Specifications
Features

E3S-DB Photoelectric Sensors

With outstanding detection performance, the Omron E3S-DB sensors offer the most reliable detection of all transparent objects such as PET bottles, glass bottles or transparent trays.

SmartTeach for fast set up and optimum threshold setting
Sensing distance up to 4.5m
Narrow beam types with 2 mm spot detecting smallest gaps
Proven for environments in Food & Beverage industry

Note

Reflectors required for Retro-reflective Sensors.
Reflector/Mounting bracket ordered separately.

Brand	Omron
Sensor Style	Block
Detection Type	Retroreflective
Detection Range	0 → 700 mm
Output Type	PNP
Electrical Connection	M12 4 Pin Connector
Maximum DC Voltage	30V
Terminal Type	Cable
Light Source	LED
IP Rating	IP67, IP69
Maximum Current	100 mA
Response Time	500 μs
Series	E3S
Housing Material	ABS, PBT
Maximum Operating Temperature	+60°C
Minimum Operating Temperature	-25°C

Photoelectric sensor, rectangular shape, red LED, transparent object detection, narrow beam, multi-turn trimmer, 0.7m, PNP, antivalent output, M12 conn.
