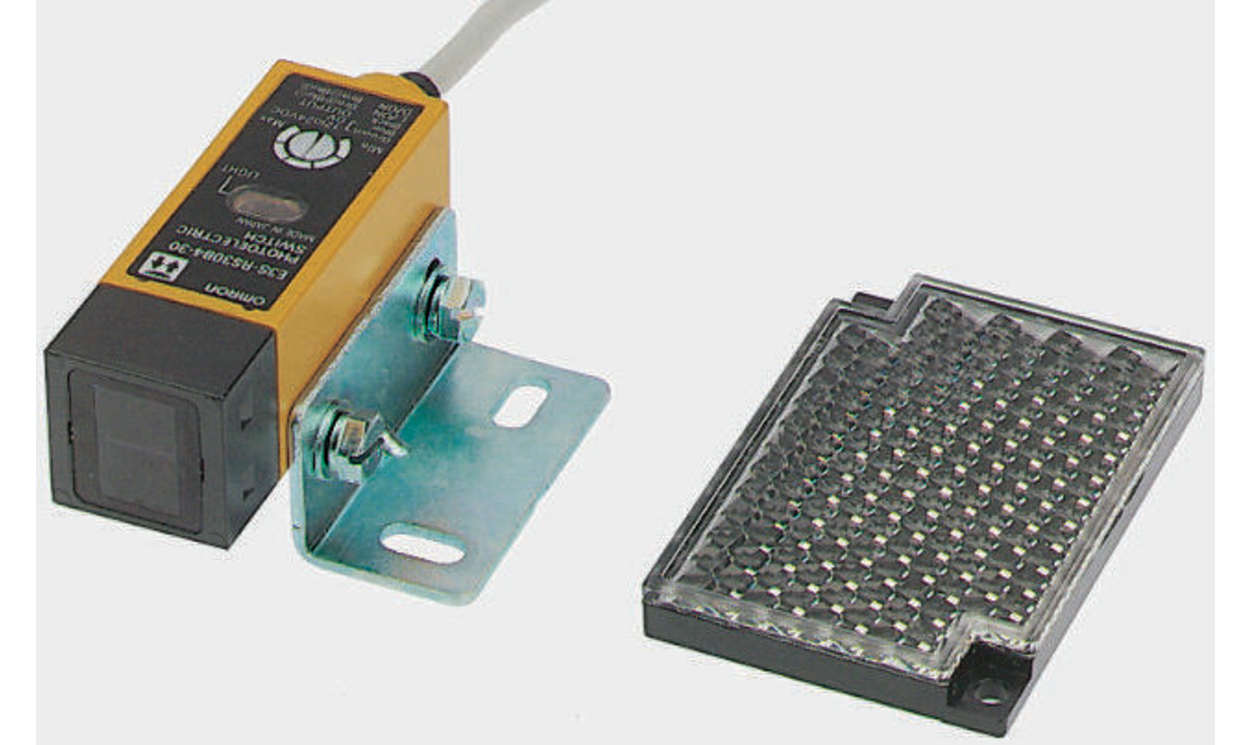

Omron E3S-RS30E4-30, Retroreflective Photoelectric Sensor, Block Sensor, 300 mm Detection Range
Part Number : E3S-RS30E4-30
For pricing, please contact our experts.
E3S-RS Series Short Range Clear Object Sensors
Die-cast Zinc body PNP or NPN version sensors available for sensing cylindrical (not flat) objects
Light On/dark On operation selectable
Response time: 1ms (ON or OFF)
One-turn sensitivity adjustment
IR (Infrared) LED Light Source
Load Short-Circuit Protection
Mutual interference prevention
Supply Voltage: 12 to 24 Vdc
Current Consumption 40 mA
Operating Temperature: 0°C to 40°C
Housing Material: Zinc die-cast (Lens: Polycarbonate)
Connection: Pre-wired cable included
E39-R1 reflector included
IP67 Environmental Ingress Protection
Response time: 1ms (ON or OFF)
One-turn sensitivity adjustment
IR (Infrared) LED Light Source
Load Short-Circuit Protection
Mutual interference prevention
Supply Voltage: 12 to 24 Vdc
Current Consumption 40 mA
Operating Temperature: 0°C to 40°C
Housing Material: Zinc die-cast (Lens: Polycarbonate)
Connection: Pre-wired cable included
E39-R1 reflector included
IP67 Environmental Ingress Protection
