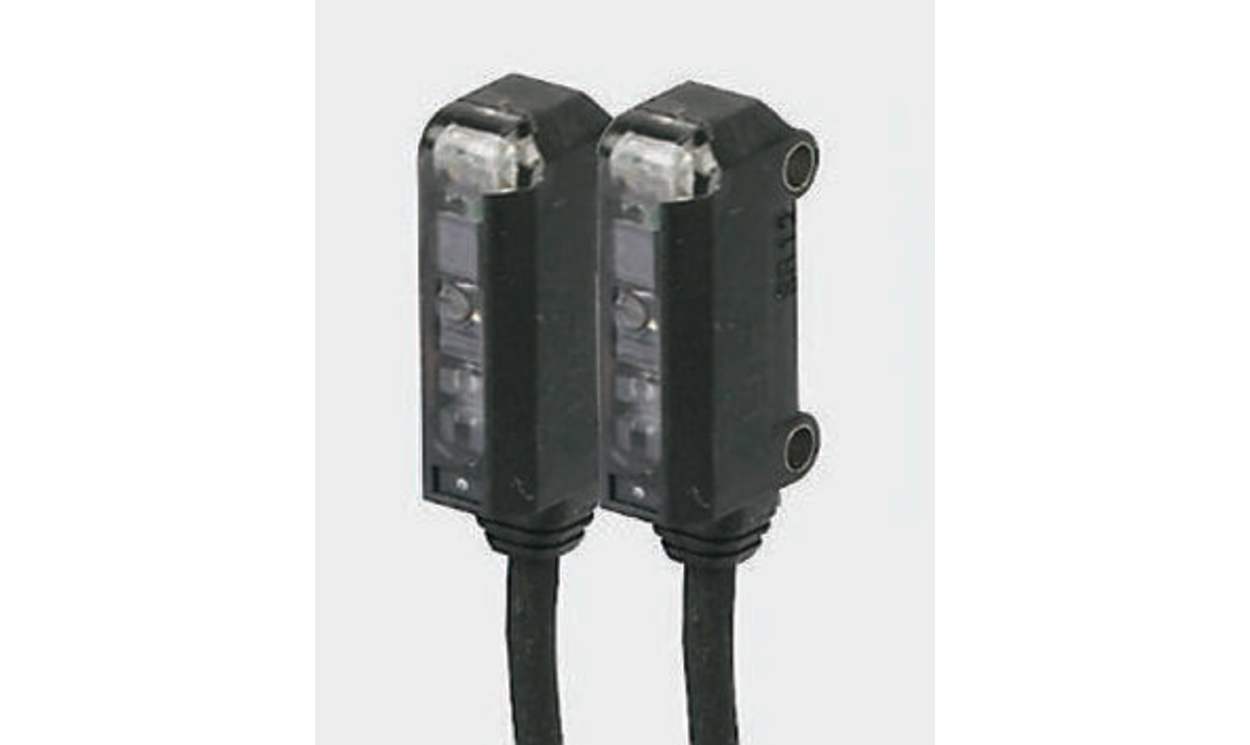

OMRON E3T-FT12 2M | Through-Beam Photoelectric Sensor | 500 mm, NPN, Pre-Wired Cable
With a 500 mm detection range, the OMRON E3T-FT12 2M is a block-style through-beam photoelectric sensor, supplied with NPN output and a pre-wired cable. It is rated IP67, with a PBT housing and an operating temperature range of -25°C to +55°C. Response time is 1 ms, using an LED light source.
- Maximum DC voltage: 26.4V
- Maximum current: 50 mA
- Series: OMRON E3T
- Detection range: 500 mm
- Output: NPN
- Connection: pre-wired cable
- Detailed Description
- Specifications
- Downloads
Through Beam


| Brand | Omron |
| Series | E3T |
| Detection Type | Through Beam |
| Detection Range | 500 mm (19.7 in) |
| Sensor Style | Block |
| Output Type | NPN |
| Electrical Connection | Pre-Wired Cable |
| Light Source | LED |
| Response Time | 1 ms |
| Maximum DC Voltage | 26.4V |
| IP Rating | IP67 |
| Maximum Current | 50 mA |
| Minimum Operating Temperature | -25 °C (-13 °F) |
| Housing Material | PBT |
| Maximum Operating Temperature | +55 °C (131 °F) |
