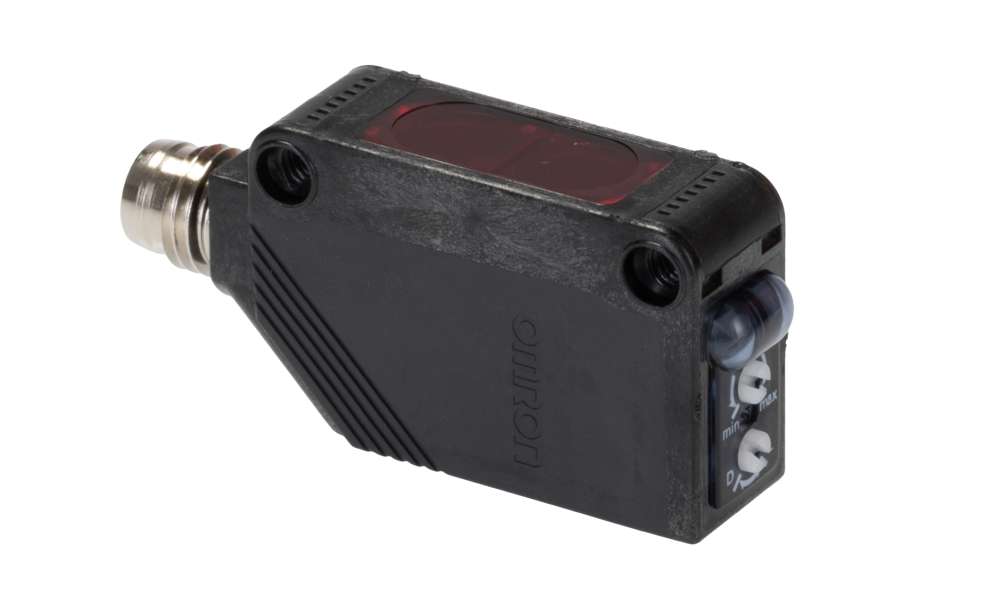

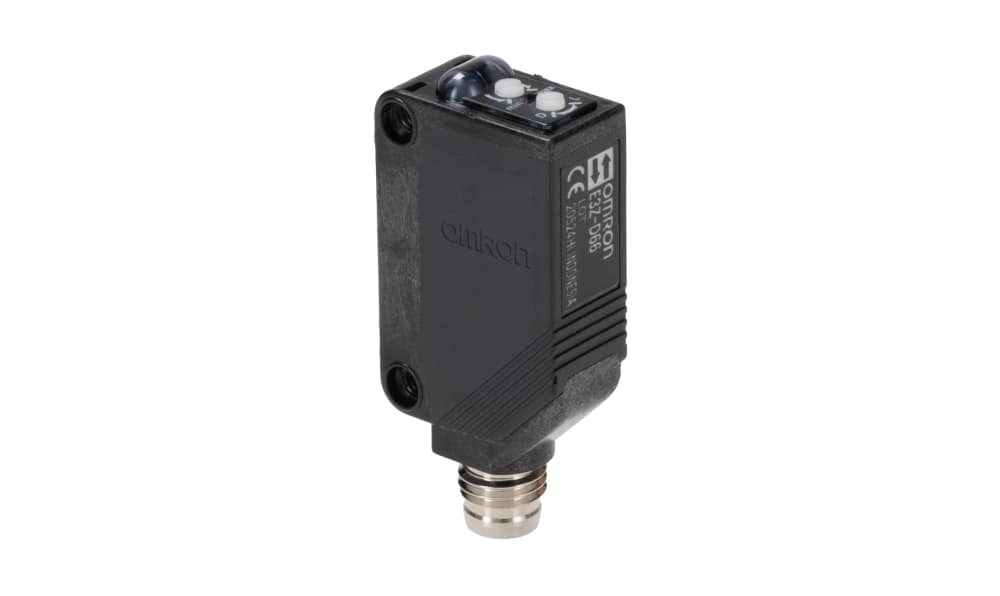

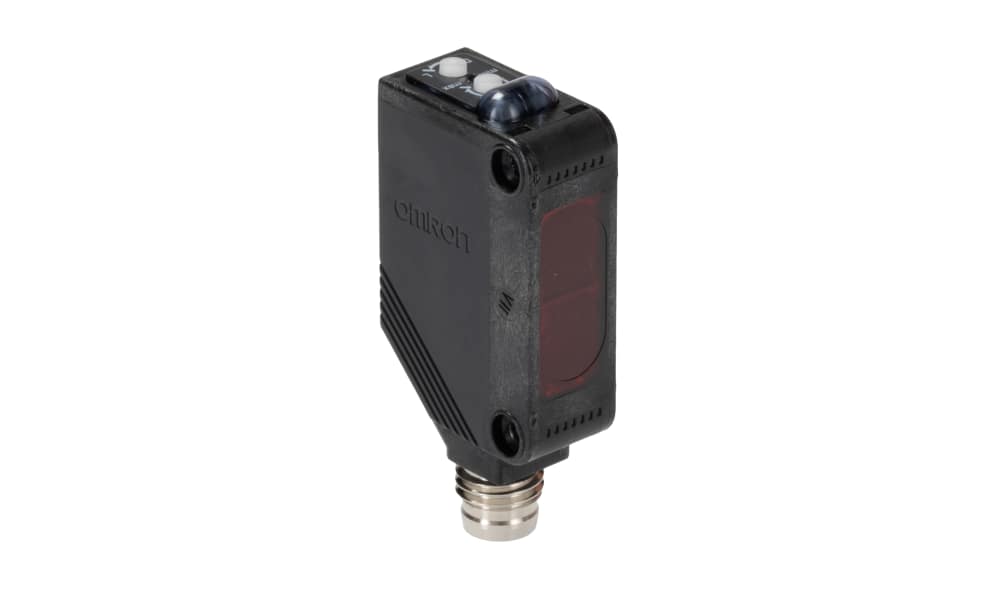

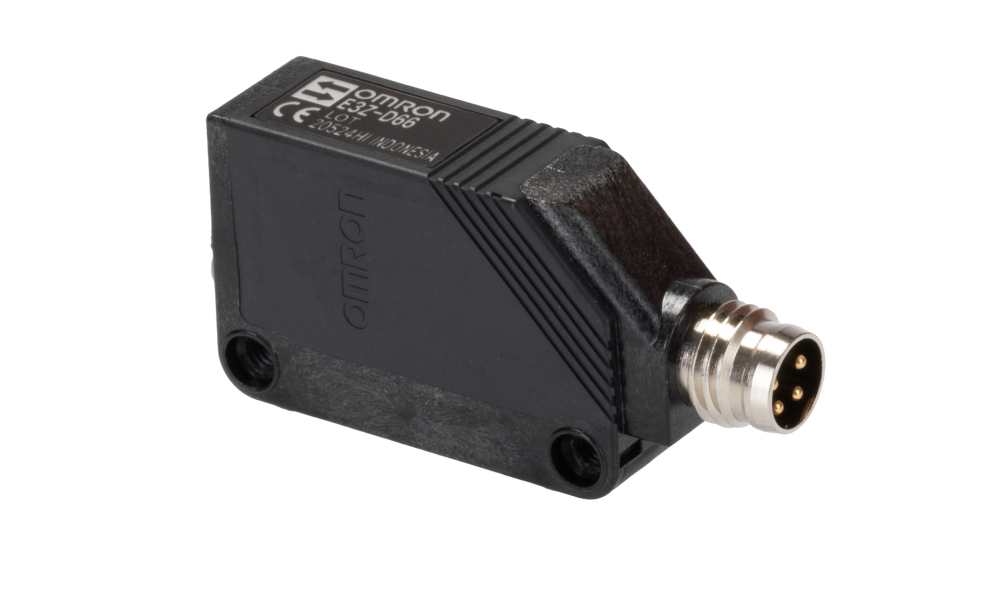

Omron E3Z-D66, Diffuse Photoelectric Sensor, Block Sensor, 5 mm → 100 mm Detection Range

Name: Omron E3Z-D66, Diffuse Photoelectric Sensor, Block Sensor, 5 mm → 100 mm Detection Range
Brand: OMRON
SKU: E3Z-D66
Availability: OutOfStock

Part Number : E3Z-D66

Availability: Sold out

Detailed Description
Specifications
Downloads

Omron E3Z Series Photoelectric Sensor, 5mm to 100mm Detection Range, IP67 - E3Z-D66

This photoelectric sensor enhances automation across various industries with its effective detection capabilities, operating within a range of 5mm to 100mm. Its compact block design and robust infrared technology cater to the dynamic needs of electronic and mechanical applications, ensuring precision in object detection within automated systems.

Features & Benefits

• Detects objects at distances from 5mm to 100mm
• Utilises NPN output for efficient signal transmission
• IP67 rating offers protection against dust and moisture
• Supports light/dark switching for versatile Applications
• Quick response time of 1ms improves operational efficiency
• M8 4-pin connector simplifies wiring

Applications

• Object detection in conveyor systems
• Accurate sensing in packaging machines
• Streamlining operations in material handling
• Precise positioning and navigation in robotics

What type of electrical connection is required?

It requires an M8 4-pin connector for electrical connection.

How does the operating temperature affect functionality?

It functions effectively within temperatures ranging from -25 to +55°C.

Can the sensor work with different output configurations?

This sensor is specifically designed for NPN output configuration, ensuring compatibility with relevant systems.

Brand	Omron
Sensor Style	Block
Detection Type	Diffuse
Detection Range	5 mm → 100 mm
Output Type	NPN
Switching Mode	Light / Dark switching
Electrical Connection	M8 4 Pin Connector
Maximum DC Voltage	24V
Terminal Type	4 Pin Connector
Light Source	Infrared
IP Rating	IP67
Maximum Current	30 mA
Response Time	1 ms
Minimum Operating Temperature	-25°C
Maximum Operating Temperature	+55°C
Housing Material	PBT
Series	E3Z
Thread Size	M8
Standards Met	CE

Omron E3Z-D66, Diffuse Photoelectric Sensor, Block Sensor, 5 mm → 100 mm Detection Range

DOWNLOAD CATALOG

E3Z-D66 Brochure A700000009891686

E3Z-D66 Manual A700000009891690

E3Z-D66 Brochure - E3Z Photoelectric Sensors A700000012229417
