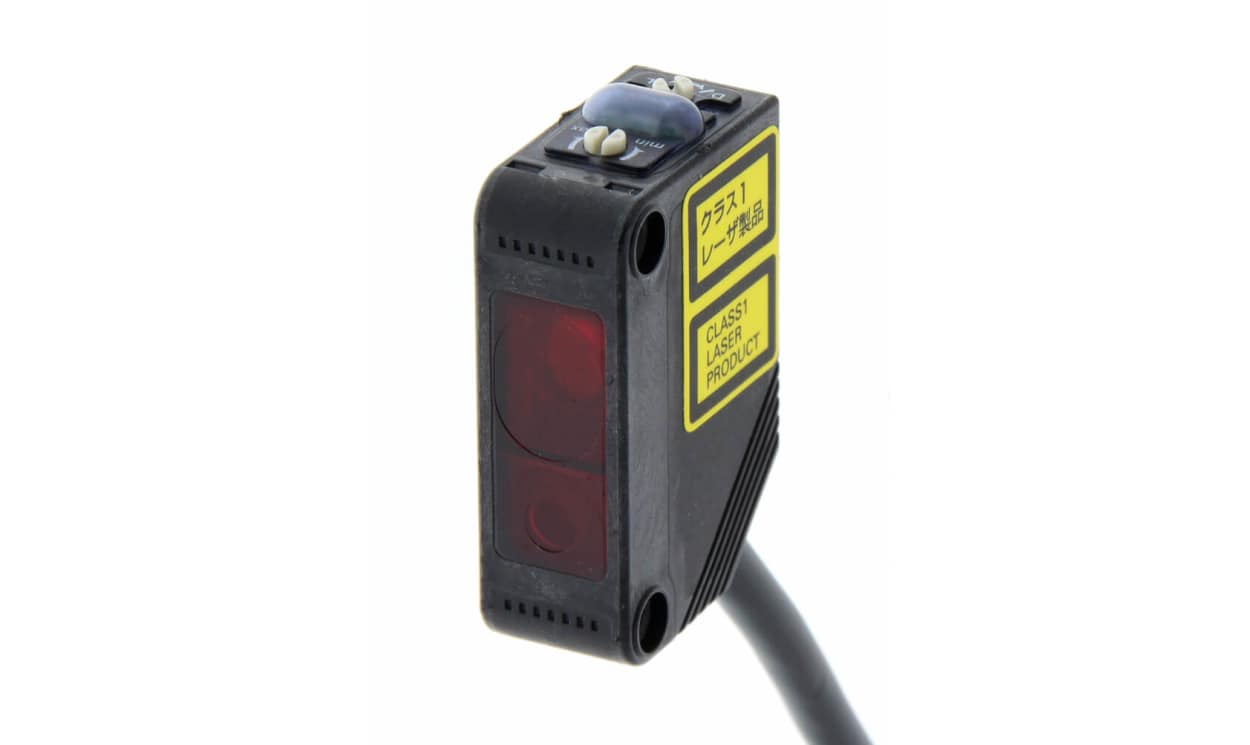

OMRON E3Z-LL81 5M | Diffuse Photoelectric Sensor | 20 to 300 mm, PNP, 5 m Cable
OMRON's E3Z-LL81 5M diffuse photoelectric sensor provides a PNP output over a detection range of 20 to 300 mm from a block-style body. The sensor uses a 5 m cable for connection, is fitted with a red laser diode light source and is rated IP67.
- Maximum voltage 24 V DC
- 1 ms response time
- Works from -10 °C to +55 °C
- Housing material: PBT
- Switching mode: light-on / dark-on switching
- Part of the OMRON E3Z series
- Detailed Description
- Specifications
- Downloads
Omron E3Z Series Photoelectric Sensor, 20 to 300mm Detection Range, IP67 - E3Z-LL81 5M
Features & Benefits
• Functions within a wide temperature range of -10°C to +55°C
• 5m cable facilitates flexible installations
Applications
• Ideal for packaging machinery needing precise measurements
• Commonly used in conveyor systems for counting objects
• Implemented in quality control processes to ensure consistent performance
How can it be integrated into existing systems?
What is the impact of temperature on performance?
What voltage is required for operation?
| Brand | Omron |
| Series | E3Z |
| Detection Type | Diffuse |
| Detection Range | 20 → 300 mm (0.787 to 11.8 in) |
| Sensor Style | Block |
| Output Type | PNP |
| Electrical Connection | Cable 5 m |
| Switching Mode | Light / Dark switching |
| Light Source | Laser Diode, Red Light |
| Response Time | 1 ms |
| Maximum DC Voltage | 24V |
| IP Rating | IP67 |
| Minimum Operating Temperature | -10 °C (14 °F) |
| Housing Material | PBT |
| Maximum Operating Temperature | +55 °C (131 °F) |
