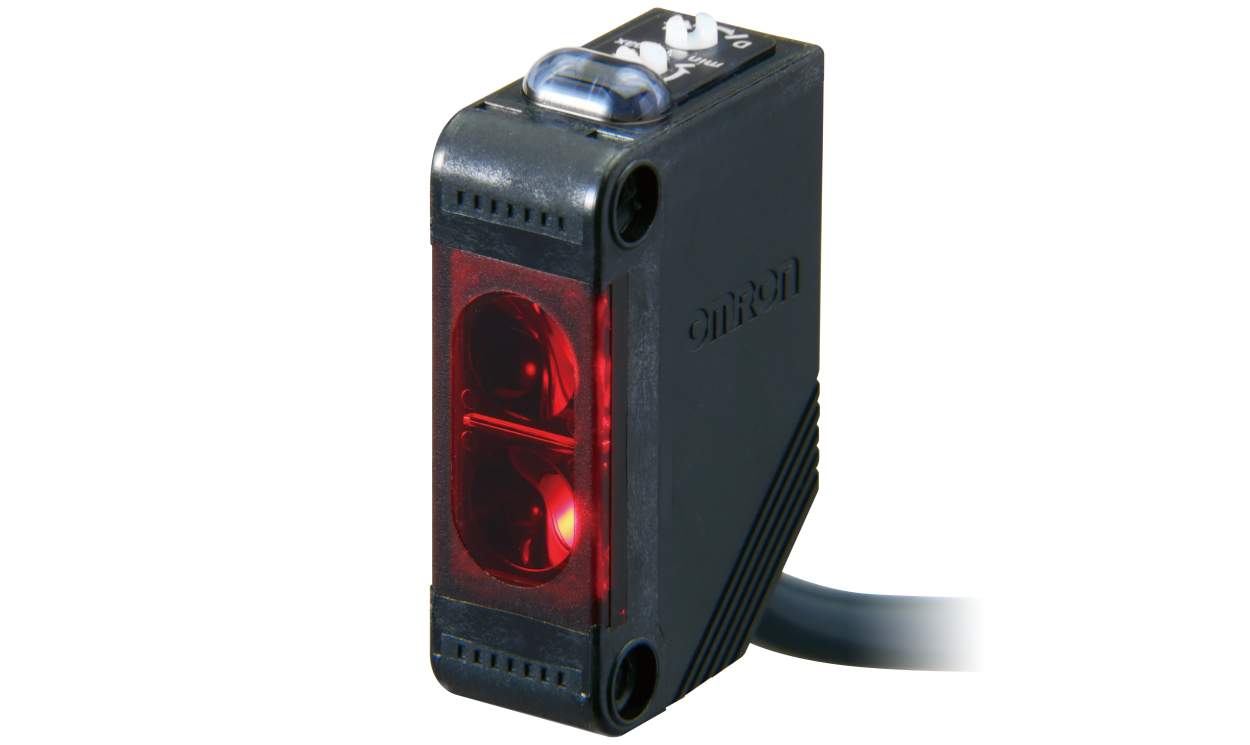

OMRON E3Z-R61 5M | Retroreflective Photoelectric Sensor | 100 to 4000 mm, NPN, Cable
The OMRON E3Z-R61 5M is a block-style retroreflective photoelectric sensor with a detection range of 100 to 4000 mm and an NPN output. The sensor has a cable connection, works with a red LED light source and meets IP67 protection.
- Maximum voltage 24 V DC
- Current rating up to 30 mA
- 2 ms response time
- Works from -25 °C to +55 °C
- Housing material: PBT
- Switching mode: light-on / dark-on switching
- Detailed Description
- Specifications
- Downloads
Omron E3Z Series Photoelectric Sensor, Retroreflective detection, NPN Output - E3Z-R61 5M
Features & Benefits
• NPN output type for efficient operation
• Block style design for versatile applications
• Long-range detection of 100 to 4000 mm
Applications
• Ideal for automation systems where long-range detection is required
• Used in high-traffic areas for reliable sensing capabilities
Can it be used in industrial automation systems for long-range detection?
Will it work in high-traffic areas with consistency?
Is it compatible with different types of machinery and environments?
| Brand | Omron |
| Series | E3Z |
| Detection Type | Retroreflective |
| Detection Range | 100 → 4000 mm (3.94 to 157.5 in) |
| Sensor Style | Block |
| Output Type | NPN |
| Electrical Connection | Cable |
| Switching Mode | Light / Dark switching |
| Light Source | Red LED |
| Response Time | 2 ms |
| Maximum DC Voltage | 24V |
| IP Rating | IP67 |
| Maximum Current | 30 mA |
| Minimum Operating Temperature | -25 °C (-13 °F) |
| Housing Material | PBT |
| Maximum Operating Temperature | +55 °C (131 °F) |
| Standards Met | CE |
