Omron E3ZM-R86, Retroreflective Photoelectric Sensor, Block Sensor, 100 mm → 4 m Detection Range

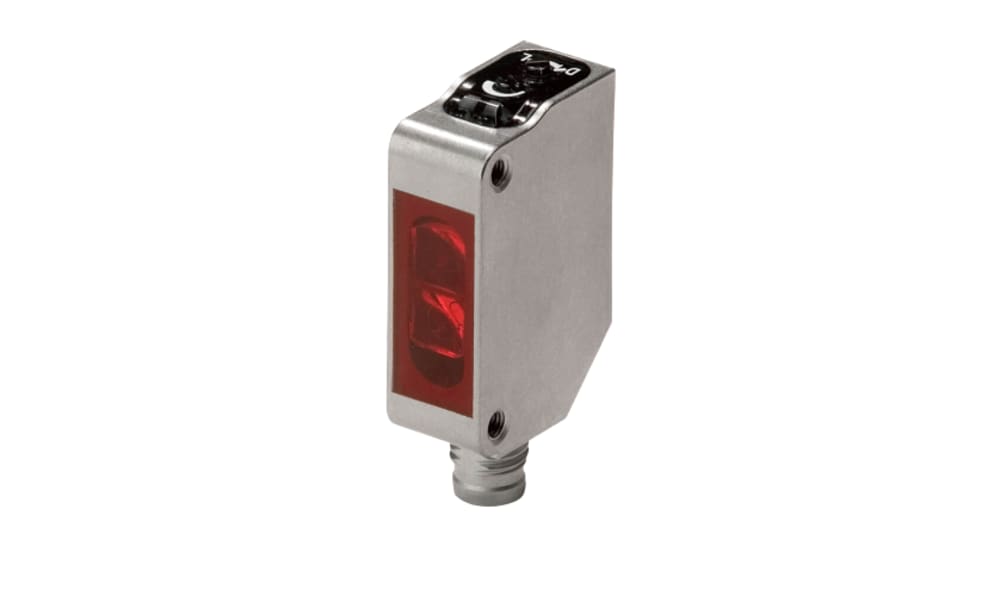

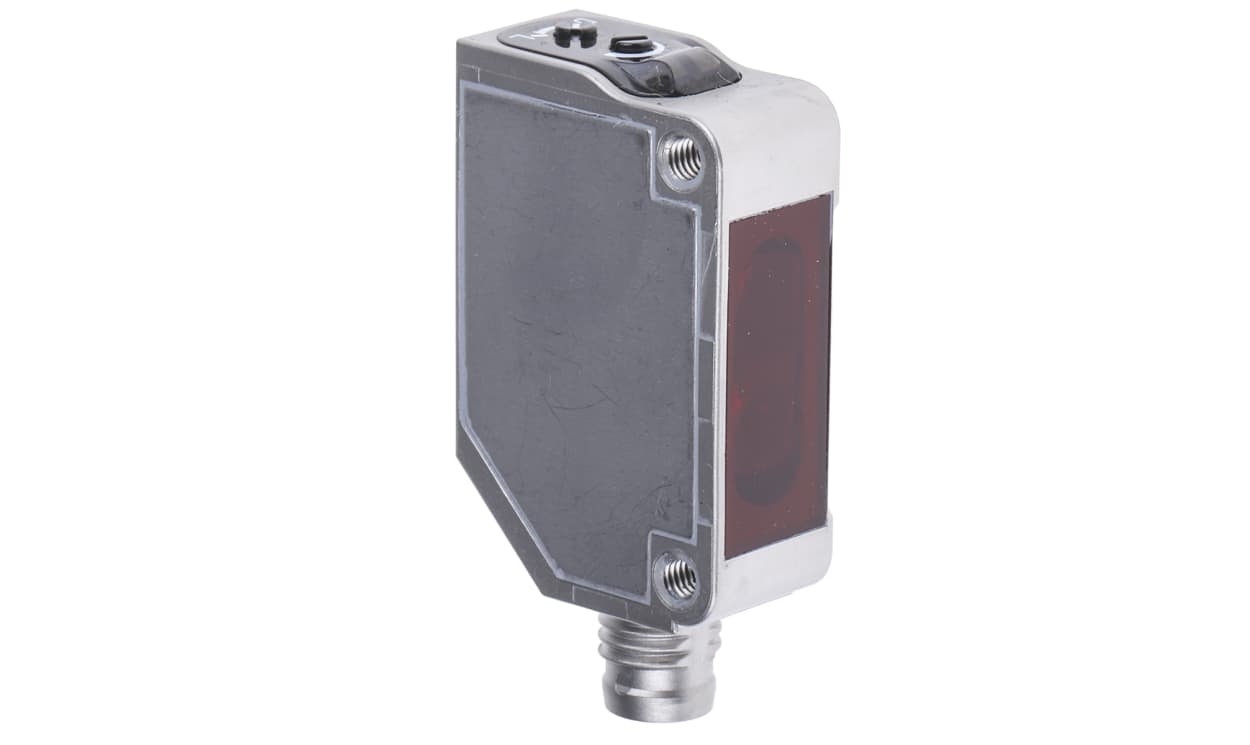

Name: Omron E3ZM-R86, Retroreflective Photoelectric Sensor, Block Sensor, 100 mm → 4 m Detection Range
Brand: OMRON
SKU: E3ZM-R86
Availability: OutOfStock

Part Number : E3ZM-R86

Photoelectric sensor, retro-reflective, metal body, IP69K, 4m, M8 4-pin, PNP

Availability: Sold out

Detailed Description
Specifications
Features

E3ZM Series Stainless Steel

Stainless steel body versions of the E3Z family specially designed to meet the demanding conditions that are found within food processing environments. Made from food-grade materials, the sensors have been designed so that the detergents and disinfectants used in these environments do not destroy the sensors, unlike standard plastic and metal types.

Stainless steel housing: SUS316L grade is used for detergent-proof & disinfectant-proof operation; ideal for food industry applications
Approved by the Henkel Ecolab Institute
Laser etched - no labels
Protection rating IP67 (IEC), IP69K (DIN 40050-9)

OMRON Photoelectric Sensor, IP69K Rating, PNP Output Type - E3ZM Series - E3ZM-R86

Shine a light on moving objects with this photoelectric sensor from OMRON. It's a retroreflective type that acts as an emitter and receiver in one, simplifying your setup and reducing wiring. As it incorporates a polarised LED and an MSR function, it can reliably detect transparent, smooth and shiny items such as canned goods and clear bottles of liquid. Built with a stainless steel housing, the unit is rugged and easy to clean, especially as the body, seals and sensor cover are resistant to detergents and disinfectants. An IP69K rating tells you it's not troubled by high-pressure and high-temperature water jets, so you can safely sanitise production areas to meet hygiene requirements.

Features & Benefits

• Dark-on and light-on operating modes to detect the presence and absence of objects
• Wide sensing range from 100mm to 4m is manually adjustable for ease
• Compact dimensions of 32.2 (L) x 10.8 (W) x 21mm (D) for installation in tight spaces
• 1ms response time means it gets to work quickly

Applications

• Food and drink production
• Industrial automation
• Pharmaceutical manufacturing
• Chemical processing

Which reflector works with this photoelectric sensor?

For convenience, you can use OMRON's E39 square (204-8860), round (254-3447) and self-adhesive (822-4544) reflectors with this sensor.

Brand	Omron
Sensor Style	Block
Detection Type	Retroreflective
Detection Range	100 mm → 4 m
Output Type	PNP
Switching Mode	Light / Dark switching
Electrical Connection	M8 4 Pin Connector
Maximum DC Voltage	30V
Light Source	LED
IP Rating	IP67/IP69K
Maximum Current	100 mA
Response Time	1 ms
Housing Material	Stainless Steel
Mounting Type	Flange Mount
Maximum Operating Temperature	+55°C
Minimum Operating Temperature	-25°C
Series	E3ZM
Standards Met	CE

Photoelectric sensor, retro-reflective, metal body, IP69K, 4m, M8 4-pin, PNP
