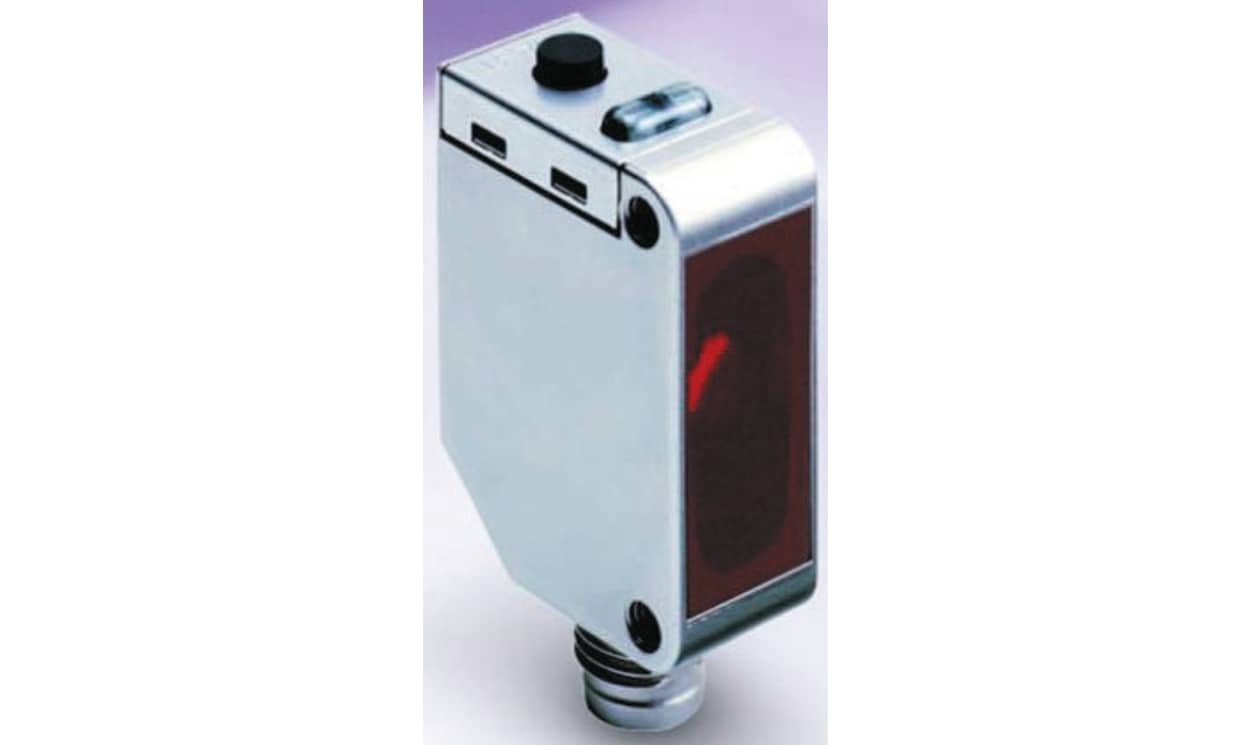

Omron E3ZM-V66, Diffuse Photoelectric Sensor, Block Sensor, 12 mm Detection Range

Part Number : E3ZM-V66

Availability: Sold out

Detailed Description
Specifications

E3ZM-V Stainless Steel Diffused

Compact, print mark detection photoelectric sensor with Built-in Amplifier and Teaching Function. In a rugged, detergent-resistant stainless steel housing for demanding applications.

White LED and RGB processing for stabile detection of colored print marks
Coaxial optical system maintains accuracy even against sensing object movement
High speed response of 50μs
Easy-to-use product with 2-point-teaching and remote auto-teach
IP67 and IP69k for highest water resistance
10 to 30 V dc powered
458-238 and 458-222 are flying lead type
458-232 and 458-226 are M8 connector type

Brand	Omron
Sensor Style	Block
Detection Type	Diffuse
Detection Range	12 mm
Output Type	PNP
Electrical Connection	M8 4 Pin Connector
Maximum DC Voltage	30V
Light Source	LED
IP Rating	IP69K
Maximum Current	100 mA
Response Time	50 μs
Series	E3ZM
Housing Material	Stainless Steel
Maximum Operating Temperature	+60°C
Minimum Operating Temperature	-40°C
