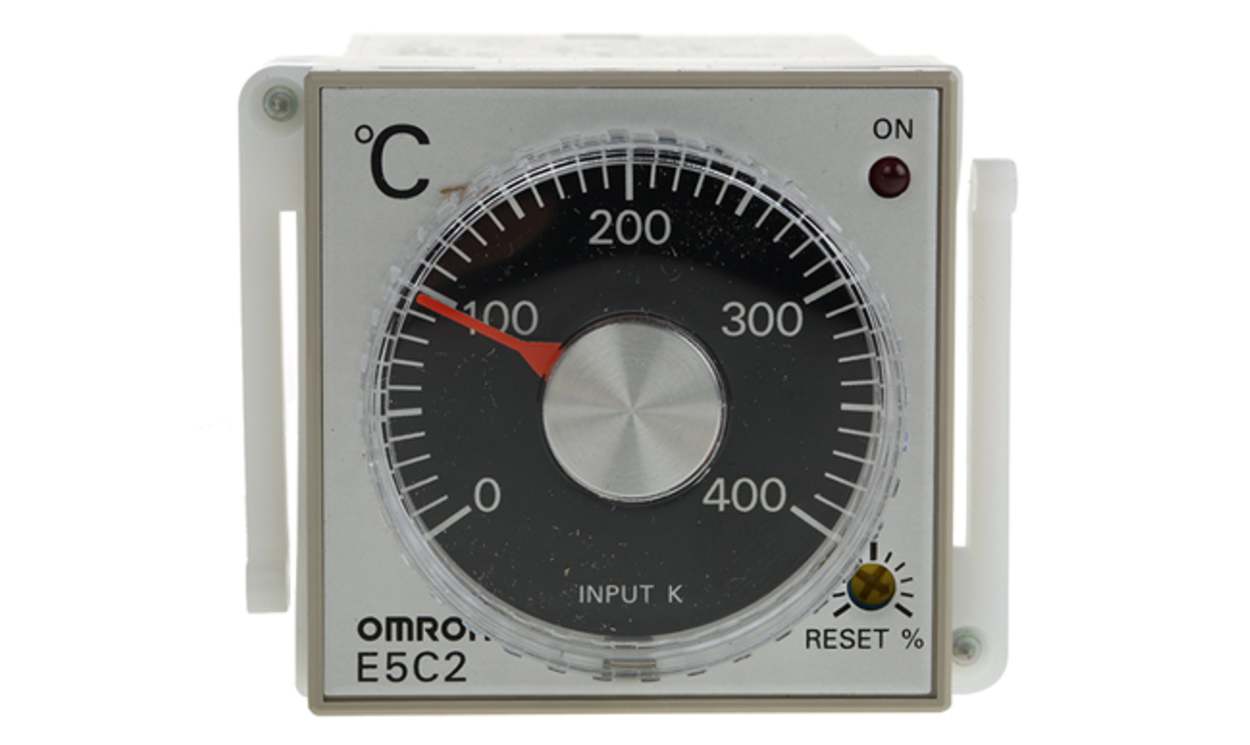

Name: Omron E5C2-R40K 100-240VAC 0-400, E5C2 Panel Mount, Din-Rail Removable Socket On/Off Temperature Controller, 48 x 48 (1/16 DIN)mm 1 Input, 1 Output
Brand: OMRON
SKU: E5C2-R40K 100-240VAC 0-400
Availability: OutOfStock

Client Protection

Dedicated Support

Client Protection

Dedicated Support

Omron E5C2-R40K 100-240VAC 0-400, E5C2 Panel Mount, Din-Rail Removable Socket On/Off Temperature Controller, 48 x 48 (1/16 DIN)mm 1 Input, 1 Output

Part Number : E5C2-R40K 100-240VAC 0-400

Availability: Sold out

Detailed Description
Specifications

Omron E5C2 Series On/Off Temperature Controller, Relay Output, 100 to 240V AC Supply Voltage - E5C2-R40K AC100-240 0-400

This On/Off Temperature Controller is tailored for effective temperature management in a variety of applications. With its robust features, it offers a solution for controlling temperature in automation and mechanical systems. The ability to operate over an extensive temperature range enhances its utility in industrial environments, ensuring performance and efficiency.

Features & Benefits

• Operates with a supply voltage range of 100 to 240V AC
• Utilises a K Type thermocouple for precise temperature measurement
• IP66 rating provides protection against dust and water ingress
• Simple screw termination allows for straightforward wiring and installation
• Proportional control improves temperature regulation accuracy
• Compact 1/16 DIN size suitable for panel or Din-Rail mounting

Applications

• Temperature regulation in HVAC systems
• Food processing and storage temperature control
• Plastic and rubber processing
• Industrial ovens and climate chambers

What type of sensor is compatible with this controller?

It works with a K Type thermocouple for accurate readings.

What is the easiest way to connect the wires?

Wiring is straightforward thanks to the screw termination feature, ensuring secure connections.

What is the range of temperatures it can manage?

It effectively controls temperatures from -10 to +55°C.

Omron E5N Range

ON/OFF and PID control methods
Operating Temperature Range: -10°C to +55°C
0-50mV linear input
IP66/NEMA4 front fascia
CE marked in compliance to relevant European Directives

Brand	Omron
Output Type	Relay
Supply Voltage	100 → 240 V ac
Size	48 x 48 (1/16 DIN)mm
Number of Inputs	1
Number of Outputs	1
Minimum Operating Temperature	-10°C
Maximum Operating Temperature	+55°C
Temperature Range	-10 → +55 °C
Control Type	Proportional control
IP Rating	IP00, IP40, IP66
Input Type	K Type Thermocouple
Mounting Type	Panel Mount, Din-Rail Removable Socket
Series	E5C2
Panel Depth	86.7mm
Termination Type	Screw through plug-in socket
