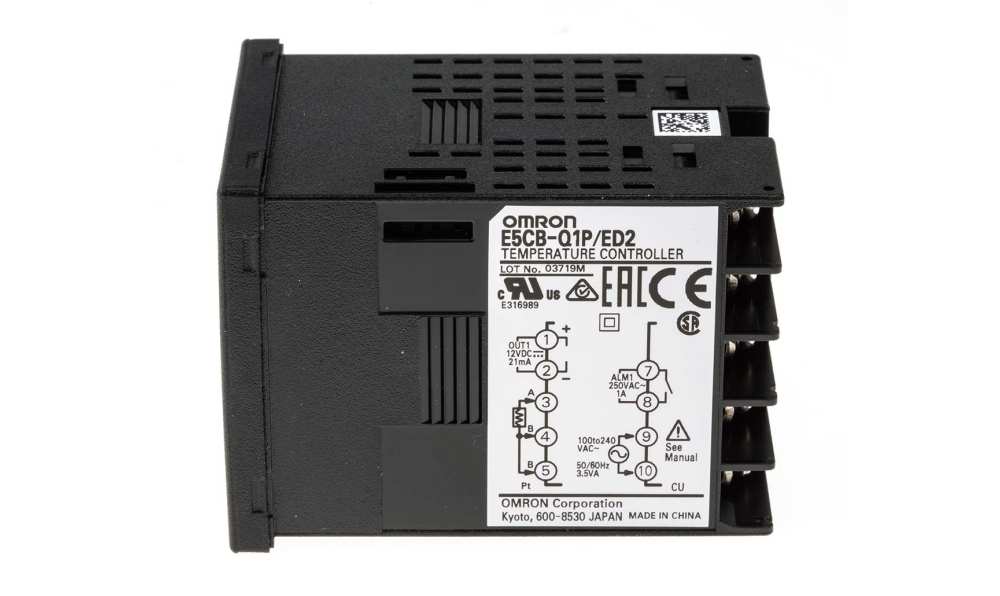

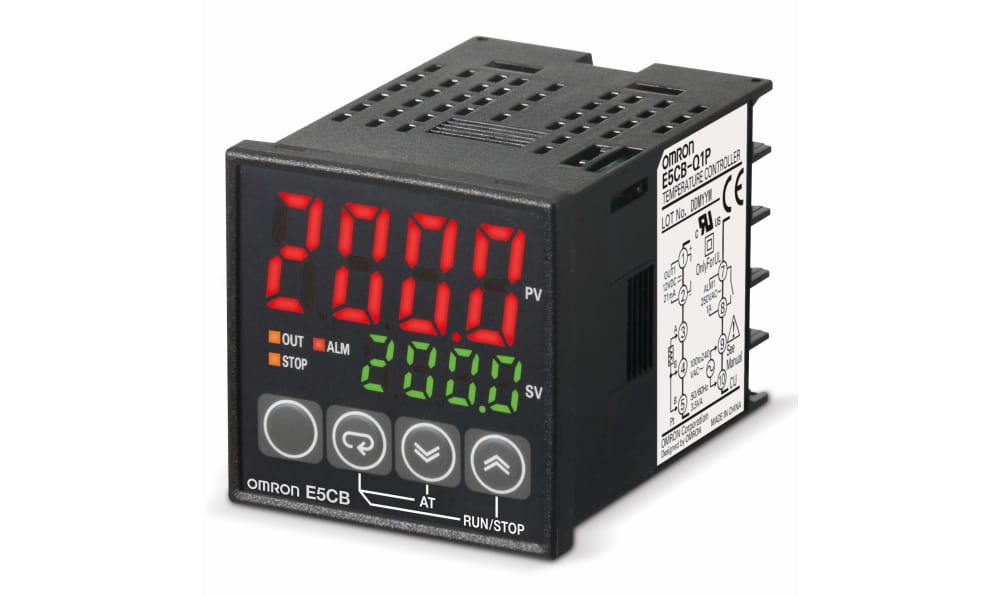

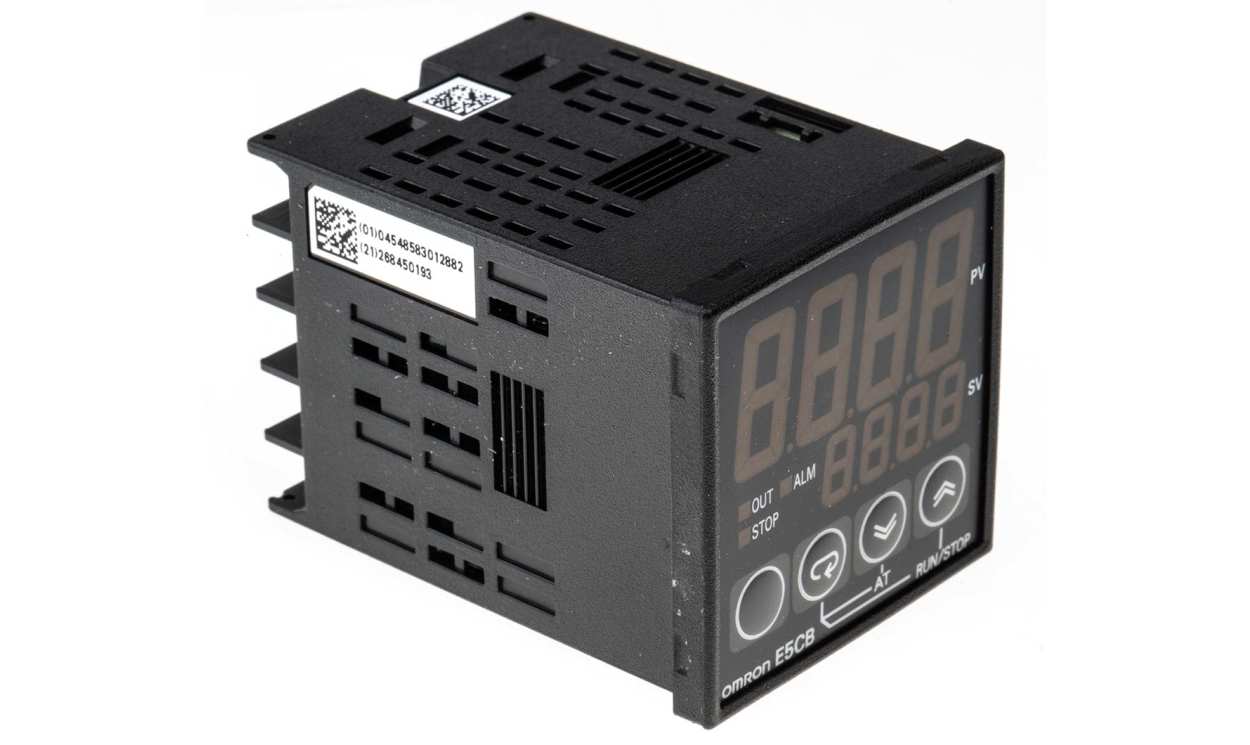

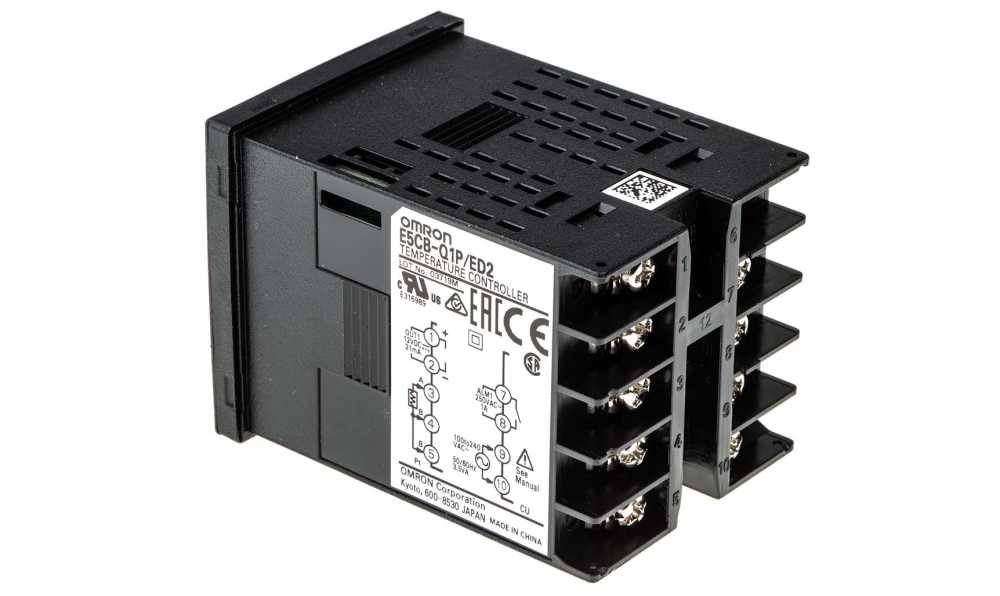

Name: Omron E5CB-Q1P 100-240 VAC, E5CB Panel Mount PID Temperature Controller, 48 x 48mm, 1 Output SSR, Solid State Relay, Logic, 100 → 240 V ac
Brand: OMRON
SKU: E5CB-Q1P 100-240 VAC
Availability: OutOfStock

Omron E5CB-Q1P 100-240 VAC, E5CB Panel Mount PID Temperature Controller, 48 x 48mm, 1 Output SSR, Solid State Relay, Logic, 100 → 240 V ac

Client Protection

Dedicated Support

Client Protection

Dedicated Support

Omron E5CB-Q1P 100-240 VAC, E5CB Panel Mount PID Temperature Controller, 48 x 48mm, 1 Output SSR, Solid State Relay, Logic, 100 → 240 V ac

Part Number : E5CB-Q1P 100-240 VAC

Availability: Sold out

Detailed Description
Specifications

Omron E5CB Series PID Temperature Controller, SSR/Solid State Relay/Logic Output, Platinum Resistance Thermometer/PT100 Input - E5CB-Q1P AC100-240

This PID temperature controller provides precision in temperature regulation across various applications. It accommodates platinum resistance thermometers and thermocouples, ensuring consistent performance in diverse environments. Advanced control algorithms enable effective management of heating processes, thereby enhancing operational efficiency.

Features & Benefits

• Supports both ON/OFF and PID control for versatile operation
• User-friendly single display with a character height of 16mm
• Designed for panel mounting with a 48 x 48mm cutout
• Equipped with screw terminal blocks for easy wiring
• Rapid sampling and loop-update times of 250ms
• Clear LED format for real-time temperature display

Applications

• Utilised in industrial heating systems for precise temperature management
• Ideal for processes requiring accurate temperature control, such as ovens
• Employed in laboratories for consistent heating
• Suitable for integration with various sensors, including PT100 temperature sensors
• Used in manufacturing environments for quality assurance

What types of sensors are compatible with this device?

It works with both platinum resistance thermometers and thermocouples, offering flexibility in temperature sensing.

How does the setup process work for this controller?

The setup is straightforward, involving fewer than 20 parameters for quick and user-friendly configuration.

Can it be connected to a computer for monitoring?

Yes, the device can interface with a computer using a USB-Serial conversion cable for monitoring and configuration.

What is the typical lifespan of the relay outputs?

The relay outputs have an electrical life expectancy of around 100,000 operations under standard usage conditions.

Brand	Omron
Output Type	SSR, Solid State Relay, Logic
Supply Voltage	100 → 240 V ac
Size	48 x 48mm
Number of Outputs	1
Minimum Operating Temperature	-10°C
Maximum Operating Temperature	+55°C
Temperature Range	-10 → +55 °C
Control Type	ON/OFF, PID, 2-PID Controller
Communication Module Available	Yes
Display Type	LED
IP Rating	IP00, IP20, IP66
Range	Omron E5CB
Additional Functionality	ON/OFF
Mounting Type	Panel Mount
Series	E5CB
Input Type	Platinum Resistance Thermometer ; PT100
Termination Type	Screw terminal block
Display Colour	Red/Green
Panel Depth	60mm
