Omron E5CB-R1P 100-240 VAC, E5CB Panel Mount Controller, 48 x 48mm 2 Input, 3 Output Relay, 100 → 240 V ac Supply Voltage ON/OFF, PID, 2-PID

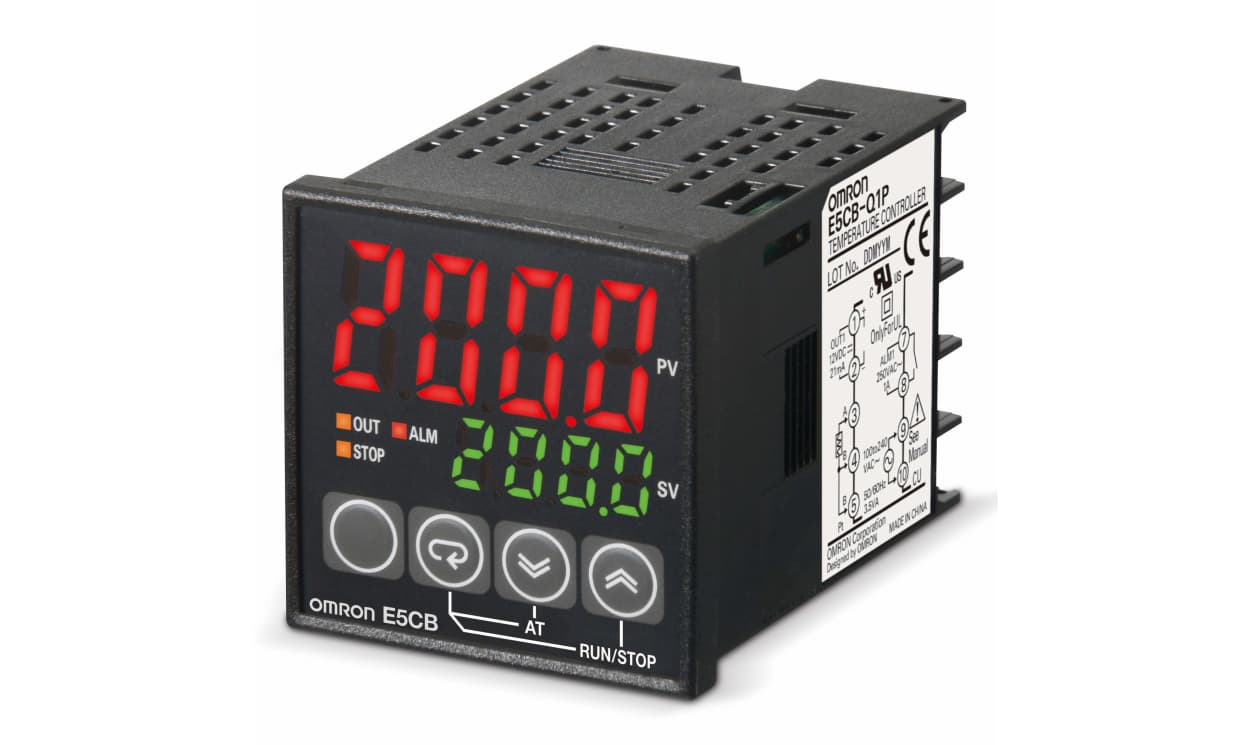

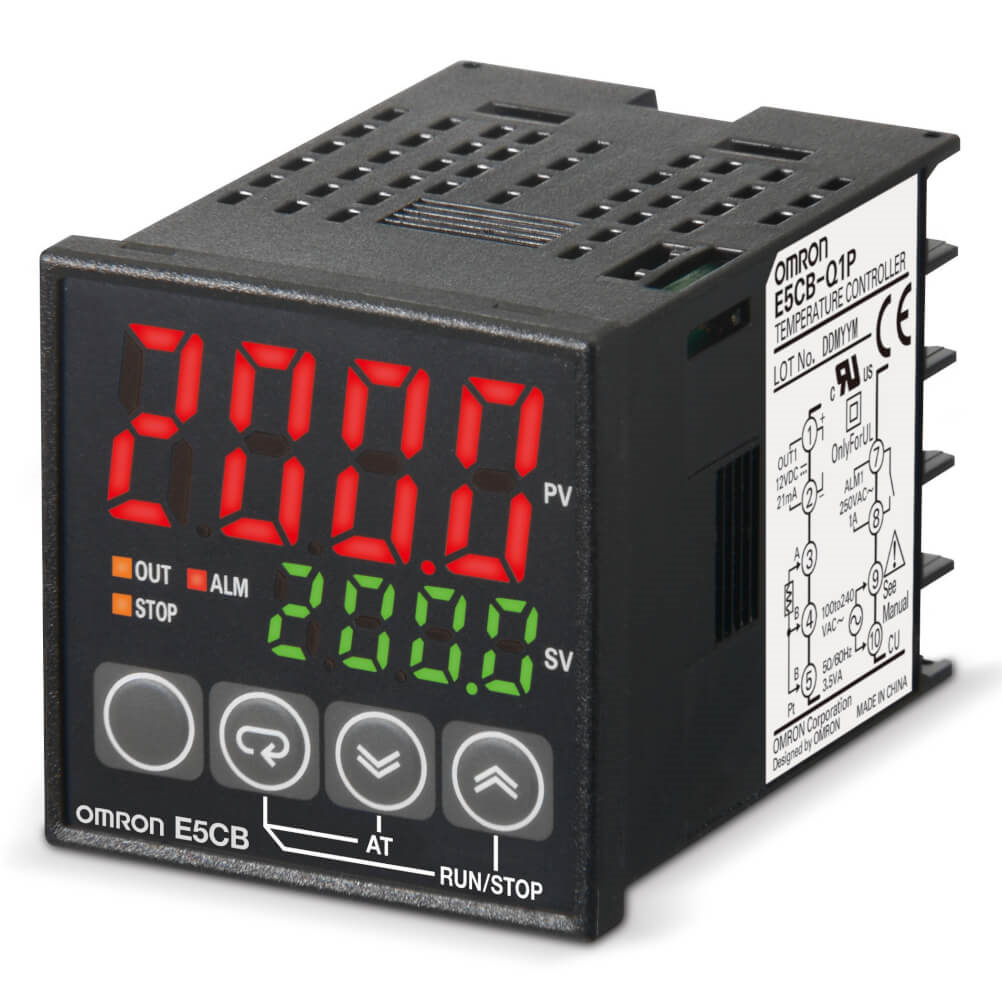

Name: Omron E5CB-R1P 100-240 VAC, E5CB Panel Mount Controller, 48 x 48mm 2 Input, 3 Output Relay, 100 → 240 V ac Supply Voltage ON/OFF, PID, 2-PID
Brand: OMRON
SKU: E5CB-R1P 100-240 VAC
Availability: OutOfStock

Part Number : E5CB-R1P 100-240 VAC

Temp. controller, LITE, 1/16DIN (48 x 48mm), relay output, ON/OFF or PID Control, Pt100 RTD input, 1 Alarm Rel., 100-240 VAC

Availability: Sold out

Detailed Description
Specifications
Features

Omron E5CB Series Controller, 100 to 240V Supply Voltage, DIN Rail Mount - E5CB-R1P 100-240 VAC

This Omron E5CB controller is a high-quality, versatile, and reliable temperature controller ideal for various applications. It offers precise control and performance at a cost-effective price point.

Features & Benefits

• ON/OFF and PID Controller capabilities for flexible control options
• DIN rail mounting for easy installation
• Two dedicated inputs and three dedicated outputs for optimal connectivity
• Relay and SSR output types for versatility
• Compact size of 48 x 48mm for space-saving installations
• Supply Voltage range of 100 to 240 V for universal compatibility
• Easy setup with less than 20 parameters for quick configuration
• Improved visibility with a large character display of 16mm
• Fast sampling and loop-update at 250ms for responsive control

Applications

• Used for heater control in various industrial • Ideal for temperature control in manufacturing processes
• Suitable for automation systems requiring precise temperature regulation

Can it operate on a voltage range of 100 to 240V AC?

Yes, the controller is designed to work within this voltage range.

Is the controller suitable for DIN Rail mounting?

Yes, the controller is specifically designed for DIN Rail installation.

What type of outputs does the controller provide?

The controller offers both relay and SSR output types for flexible connectivity.

Brand	Omron
Output Type	Relay
Supply Voltage	100 → 240 V ac
Size	48 x 48mm
Number of Inputs	2
Number of Outputs	3
Minimum Operating Temperature	-200°C
Maximum Operating Temperature	+1700°C
Temperature Range	-200 → +1700 °C
Control Type	ON/OFF, PID, 2-PID Controller
Input Type	Platinum Resistance Thermometer
Series	E5CB
Mounting Type	Panel Mount
Additional Functionality	ON/OFF, PID Controller
Termination Type	Screw

Temp. controller, LITE, 1/16DIN (48 x 48mm), relay output, ON/OFF or PID Control, Pt100 RTD input, 1 Alarm Rel., 100-240 VAC
