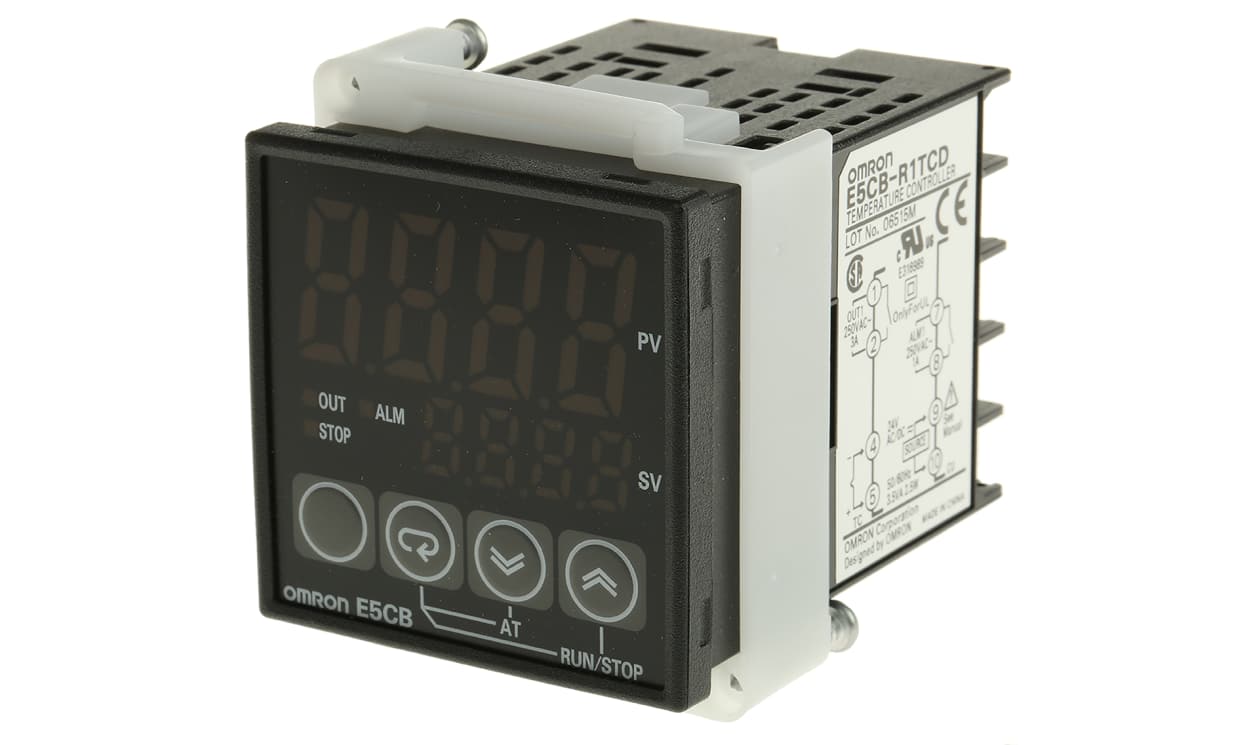

Omron E5CB-R1TCD 24VAC/DC, E5CB Panel Mount PID Temperature Controller, 48 x 48mm, 1 Output Relay, 24 V ac/dc Supply Voltage ON/OFF, PID,

Part Number : E5CB-R1TCD 24VAC/DC

Availability: Sold out

Detailed Description
Specifications

Omron E5CB Series PID Temperature Controller, Relay Output, Thermocouple Input - E5C-BR1TCD AC/DC24

This PID temperature controller is designed to enhance temperature regulation across various industrial applications. Its compact panel mount design allows for easy integration into control systems, making it suitable for automation, electronics, and mechanical engineering sectors. The controller's effective performance is crucial for accurate temperature management.

Features & Benefits

• LED display ensures clear visibility of temperature readings
• Supports ON/OFF and advanced PID control for operational flexibility
• Quick input temperature sampling at 250 ms enhances responsiveness
• Relay output reliably activates heating elements
• Multiple IP ratings improve durability in demanding environments
• User-friendly configuration requires setting fewer than 20 parameters

Applications

• Used with thermocouples for versatile temperature measurements
• Ideal for managing heating elements in industrial processes
• Effective for temperature control in HVAC systems
• Suitable for automation systems requiring precise thermal management

What type of sensor can be connected?

It supports thermocouples and resistance temperature detectors such as Pt100.

How do I install it?

It can be easily mounted on a panel using the specified cut-out dimensions.

Can it handle different voltage inputs?

Yes, it operates on both 24 V AC/DC and a wider range of 100 to 240 V AC.

Is it suitable for high-humidity environments?

Yes, it is rated for operation in humidity levels of 25-85%.

Omron - E5GC, E5CC, E5EC, E5AC, E5DC, E5CN & E5CB Ranges

Brand	Omron
Output Type	Relay
Supply Voltage	24 V ac/dc
Size	48 x 48mm
Number of Outputs	1
Minimum Operating Temperature	-10°C
Maximum Operating Temperature	+55°C
Temperature Range	-10 → +55 °C
Control Type	ON/OFF, PID, 2-PID Controller
Communication Module Available	Yes
Display Type	LED
IP Rating	IP00, IP20, IP66
Mounting Type	Panel Mount
Additional Functionality	ON/OFF
Series	E5CB
Range	Omron E5CB
Input Type	Thermocouple
Display Colour	Red/Green
Termination Type	Screw terminal block
Panel Depth	60mm
