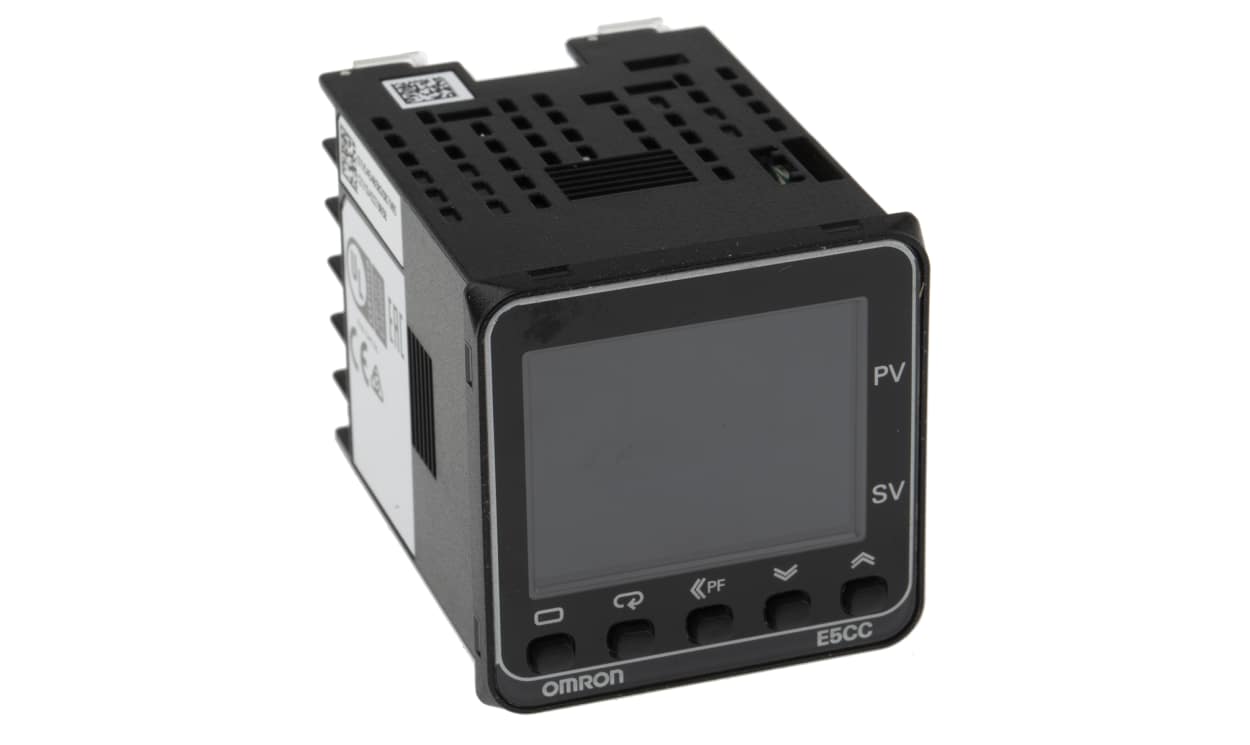

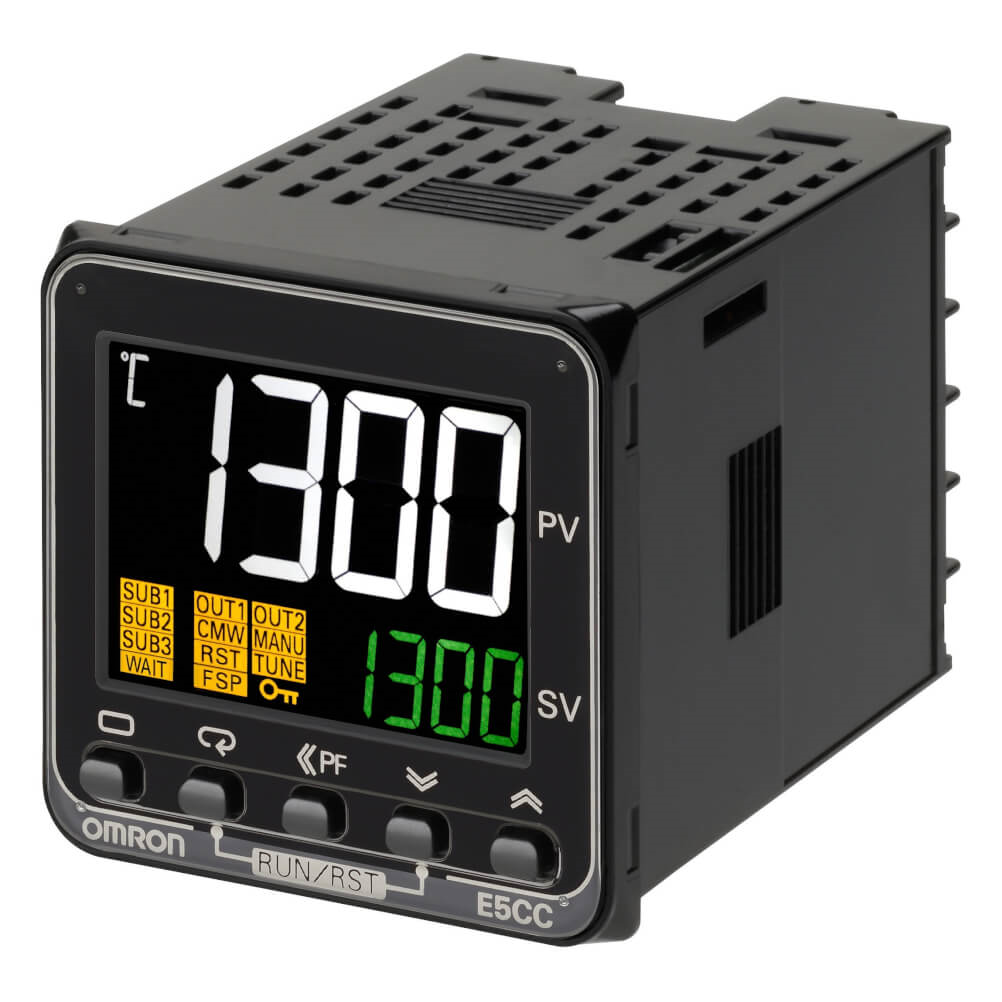

OMRON E5CC-QX3A5M-000 | E5CC PID Temperature Controller | 48x48 mm, SSR Output, 100-240 V AC

Name: OMRON E5CC-QX3A5M-000 | E5CC PID Temperature Controller | 48x48 mm, SSR Output, 100-240 V AC
Brand: OMRON
SKU: E5CC-QX3A5M-000
Availability: OutOfStock

Part Number : E5CC-QX3A5M-000

The OMRON E5CC-QX3A5M-000 PID Temperature Controller operates on 100-240 V AC and provides an SSR (logic) output; it comes in a 48 x 48 mm format. The E5CC-QX3A5M-000 accepts universal input (thermocouple, Pt100, analogue) and supports ON/OFF, PID and 2-PID control.

12 VDC pulse output
3 AUX outputs
1 output
Control output: SSR (logic)
Panel depth of 60 mm
Wiring: screw terminal block

Availability: in stock

Detailed Description
Specifications
Features
Downloads

Omron E5CC Temperature Controller, Screw Termination, 48X48mm - E5CC-QX3A5M-000

This is a compact and user-friendly temperature controller from the E5CC series. It offers precise control performance, easy setup, and exceptional visibility. With a fast sampling period of 50 ms, this controller ensures accurate and responsive temperature control. Additionally, it supports both 2-PID control with auto-tuning and simple ON-OFF control for less demanding applications. The high-quality LCD display enhances visibility and usability.

Features & Benefits

• The E5CC series ensures accurate and responsive control with a fast sampling period of 50ms
• User-friendly interface simplifies configuration and installation
• High-quality LCD display provides clear information at a glance
• Omron’s 2-PID control algorithm further optimises control accuracy
• Supports both ON/OFF control and more demanding applications

Applications

• Used in various manufacturing and production processes requiring temperature control
• Ensures efficient heating, cooling, and ventilation in buildings
• Regulates temperatures in ovens, refrigerators, and cooking equipment

Can I operate the E5CC-QX3A5M-000 without an external power supply?

Yes, this controller operates intuitively via CX-Thermo without requiring an additional power source.

What type of input does it support?

The E5CC-QX3A5M-000 accepts inputs from thermocouples, RTDs, and linear sensors.

Is it suitable for simple control applications?

Yes, In addition to precise control, it also supports simple ON/OFF control for less demanding scenarios

Omron - E5GC, E5CC, E5EC, E5AC, E5DC, E5CN & E5CB Ranges

Brand	Omron
Output Type	SSR, Solid State Relay, Logic
Supply Voltage	100 → 240 V ac
Size	48 x 48mm
Number of Outputs	1
Minimum Operating Temperature	-200°C
Maximum Operating Temperature	+55°C
Temperature Range	-200 → +2300 °C
Control Type	ON/OFF, PID, 2-PID Controller
Series	E5CC
Range	+10 → +70 °C, +115 → +165 °C, +140 → +260 °C, +60 → +120 °C
Input Type	Universal, Platinum Resistance Thermometer, PT100, Thermocouple, Analogue
Mounting Type	Panel Mount
Termination Type	Screw terminal block
Panel Depth	60mm

Temperature controller, 1/16 DIN (48x48 mm), 12 VDC pulse output, 3 AUX, 100-240 VAC

OMRON E5CC-QX3A5M-000 | E5CC PID Temperature Controller | 48x48 mm, SSR Output, 100-240 V AC

DOWNLOAD CATALOG

E5CC-QX3A5M-000 Brochure - Digital Temperature Controllers A700000010811548

E5CC-QX3A5M-000 Manual - E5CC-QX3A5M-000 A700000010811552
