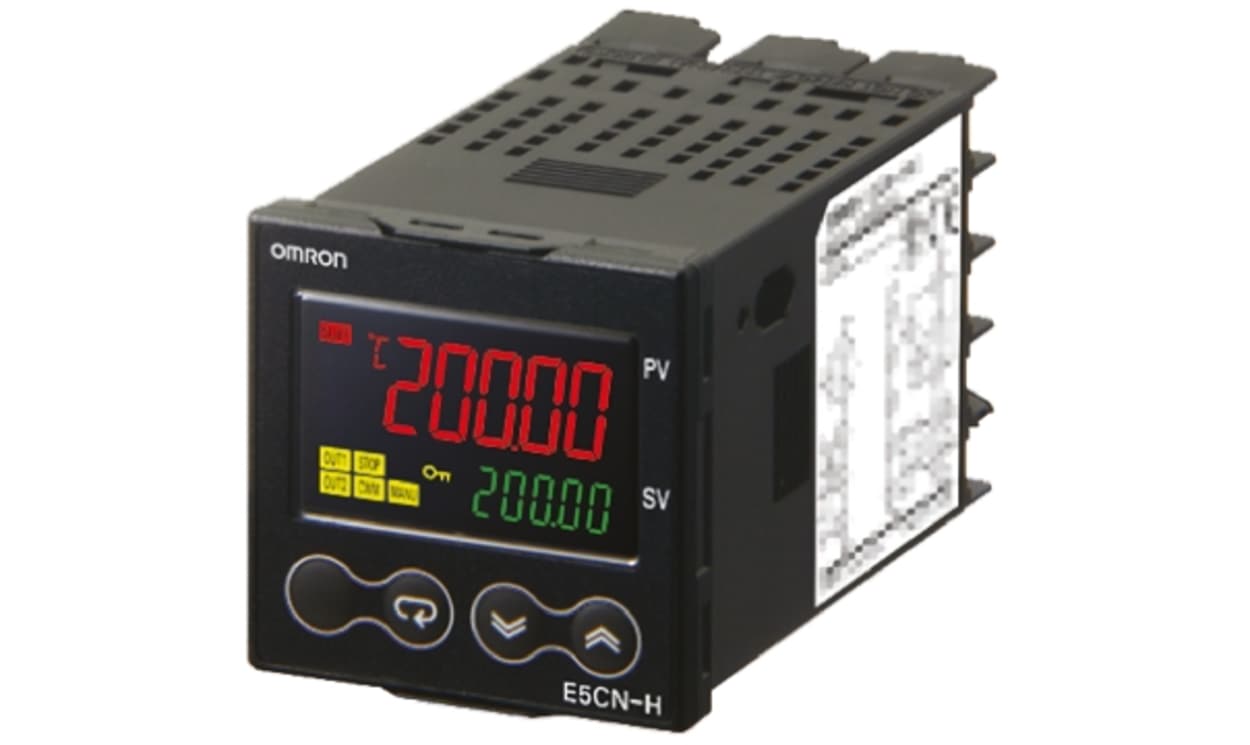

Name: Omron E5CN-HR2M-500 100-240 VAC, E5CN Panel Mount PID Temperature Controller, 48 x 48mm 2 Input, 2 Output Relay, 100 → 240 V ac Supply Voltage
Brand: OMRON
SKU: E5CN-HR2M-500 100-240 VAC
Availability: OutOfStock

Client Protection

Dedicated Support

Client Protection

Dedicated Support

Omron E5CN-HR2M-500 100-240 VAC, E5CN Panel Mount PID Temperature Controller, 48 x 48mm 2 Input, 2 Output Relay, 100 → 240 V ac Supply Voltage

Part Number : E5CN-HR2M-500 100-240 VAC

Availability: Sold out

Detailed Description
Specifications

Omron E5CN Series Pid Temperature Controller, +55 °C Maximum Operating Temperature, Relay Output - E5CN-HR2M-500 AC100-240

This Omron PID temperature controller offers precise temperature control in a wide range of -200 to +2300°C. With a red, green, yellow display, this programmable controller is designed for panel mount installation and operates on a supply voltage of 100 to 240 VAC. It ensures accurate and reliable temperature management for various industrial applications.

Features & Benefits

• Precise and high-performance temperature control
• Red/green/yellow display for easy monitoring
• Dual relay output for enhanced flexibility
• Compact size for space-saving installation
• Universal inputs for handling various sensors
• Logic operations and preventive maintenance functions
• High-resolution display with 5 digits
• Fast 60 ms sampling cycle
• Flexible contact outputs with logic operations

Applications

• Industrial Heating and Cooling Systems
• Laboratory Temperature Control
• Food Processing Equipment
• Environmental Chambers
• Chemical Processing Plants

Can it handle a wide temperature range from -200 to +2300°C?

Yes, this temperature controller can handle a wide temperature range from -200 to +2300°C.

Will it provide precise control with the dual relay output?

Yes, it has dual relay output for enhanced flexibility.

Is the display easy to read and monitor for different applications?

Yes, this device has high-resolution display with 5 digits.

Can it be used in industrial settings for process automation?

Yes, it can be used in industrial settings for temperature control applications.

Brand	Omron
Output Type	Relay
Supply Voltage	100 → 240 V ac
Size	48 x 48mm
Number of Inputs	2
Number of Outputs	2
Minimum Operating Temperature	-10°C
Maximum Operating Temperature	+55°C
Temperature Range	-10 → +55 °C
Control Type	ON/OFF, PID, 2-PID Controller
Display Type	11-Segment Digital Display
IP Rating	IP00, IP20, IP66
Range	0 → 10 V, 0 → 20 mA, -200 → +2300 (Thermocouple) °C, -200 → +850 (Platinum Resistance Thermometer) °C
Input Type	Universal, Platinum Resistance Thermometer, PT100, Thermocouple, Analogue
Series	E5CN
Mounting Type	Panel Mount
Panel Depth	78mm
Display Colour	Red/Green/Yellow
Termination Type	Screw terminal block
