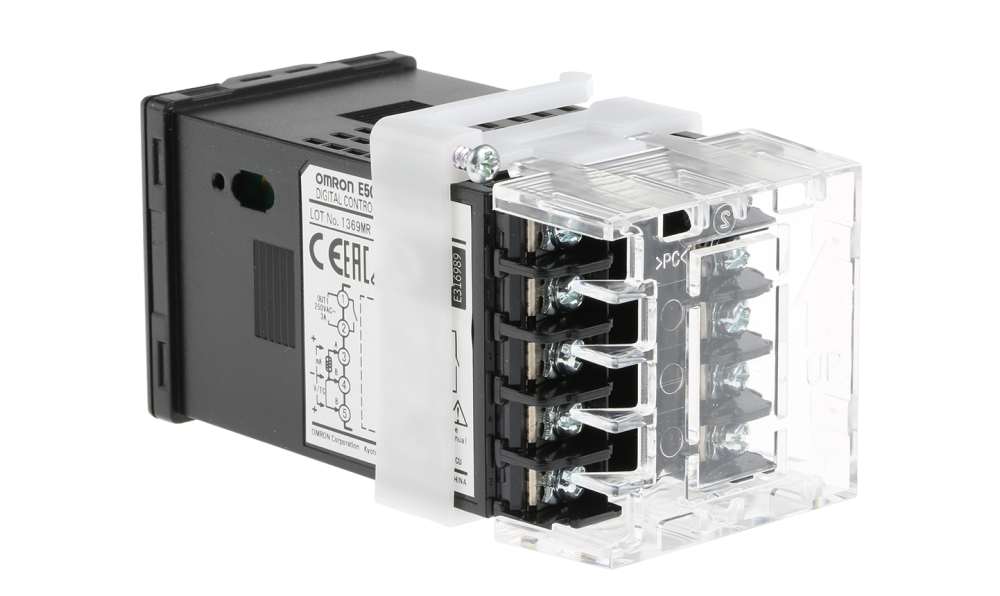

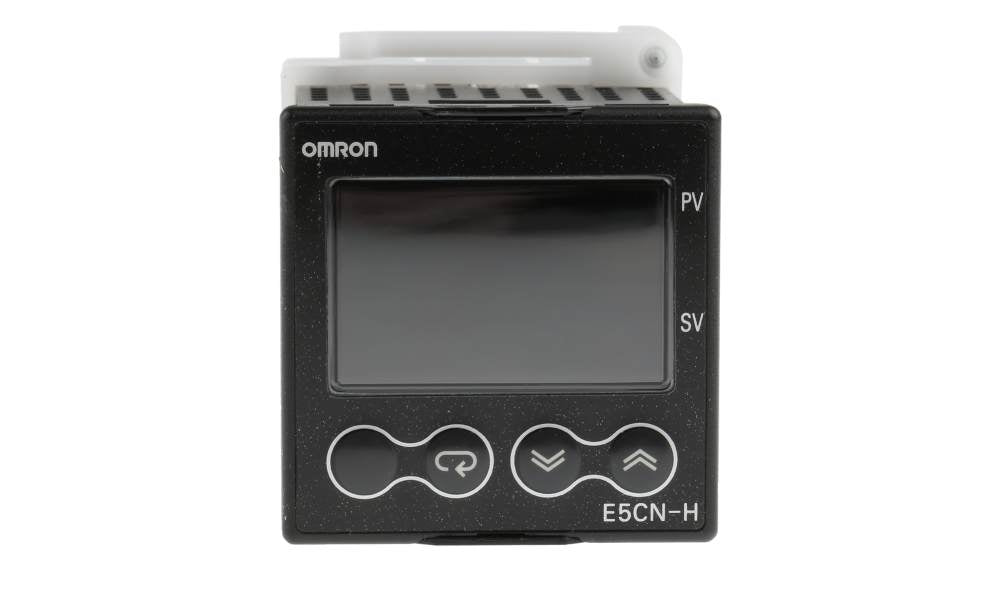

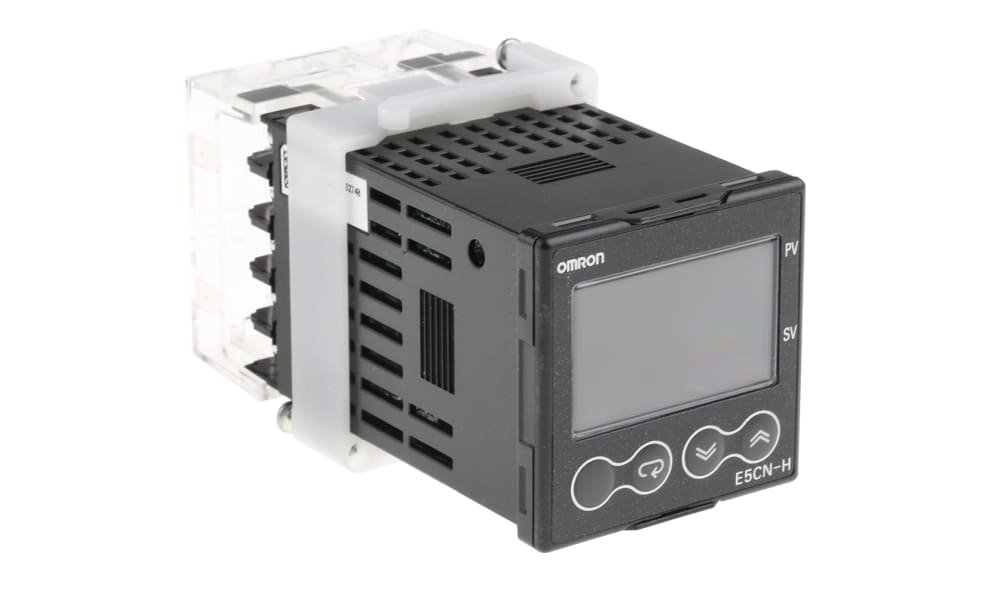

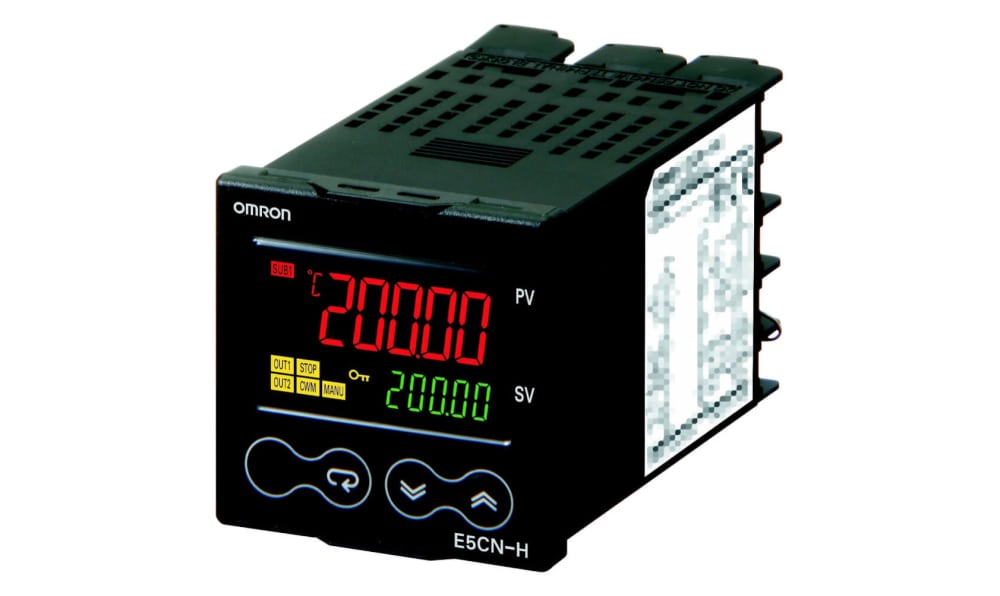

Omron E5CN-HR2MD-500 24VAC/DC, E5CN Panel Mount PID Temperature Controller, 48 x 48mm, 2 Output Relay, 24 V ac/dc Supply Voltage ON/OFF, PID,

Part Number : E5CN-HR2MD-500 24VAC/DC

Availability: Sold out

Detailed Description
Specifications

Omron E5CN Series PID Temperature Controller, 24V AC/DC Supply Voltage, -200 to +2300°C Temperature Range - E5CN-HR2MD-500

This PID temperature controller is designed for precise regulation of temperatures in industrial environments. Supporting various temperature sensors and featuring advanced functionalities, it ensures efficient process control. With options ranging from simple ON/OFF control to complex PID algorithms, this controller meets a wide range of temperature monitoring and management needs.

Features & Benefits

• High-resolution digital display provides precise temperature readings
• Universal inputs offer compatibility with multiple sensor types for greater adaptability
• 60ms fast sampling rate enables quick adjustments to temperature changes
• Logic operations allow for custom control strategies, improving system efficiency
• Comprehensive alarm functions provide real-time monitoring and user notifications
• Compact panel-mounted design makes integration into systems straightforward

Applications

• Ideal for temperature regulation in industrial manufacturing processes
• Works with platinum resistance thermometers for laboratory testing
• Suitable for thermocouple sensors in food production
• Applied in HVAC systems to control environmental temperatures
• Perfect for packaging machinery where precise temperature control is required

How do I connect different sensor types to this controller?

The controller supports a wide range of input types, allowing easy connection to thermocouples and platinum resistance thermometers.

What should I do if the temperature reading appears inaccurate?

Check that the sensor is correctly calibrated and verify that the input type matches the connected sensor.

Can I configure multiple alarms for different conditions?

Yes, the controller allows the setting of multiple alarms to enhance monitoring capabilities.

Is it easy to install in a panel mount?

Yes, it is designed for easy installation in standard panels, optimising space usage.

What maintenance is required for continuous performance?

Ensure that connections remain tight and clean the device regularly for best results.

Brand	Omron
Output Type	Relay
Supply Voltage	24 V ac/dc
Size	48 x 48mm
Number of Outputs	2
Minimum Operating Temperature	-10°C
Maximum Operating Temperature	+55°C
Control Type	ON/OFF, PID, 2-PID Controller
Series	E5CN
Mounting Type	Panel Mount
Input Type	Universal, Platinum Resistance Thermometer, PT100, Thermocouple, Analogue
Range	0 → 10 V, 0 → 20 mA, -200 → +2300 (Thermocouple) °C, -200 → +850 (Platinum Resistance Thermometer) °C
Termination Type	Screw terminal block
Display Colour	Red/Green/Yellow
Panel Depth	78mm
