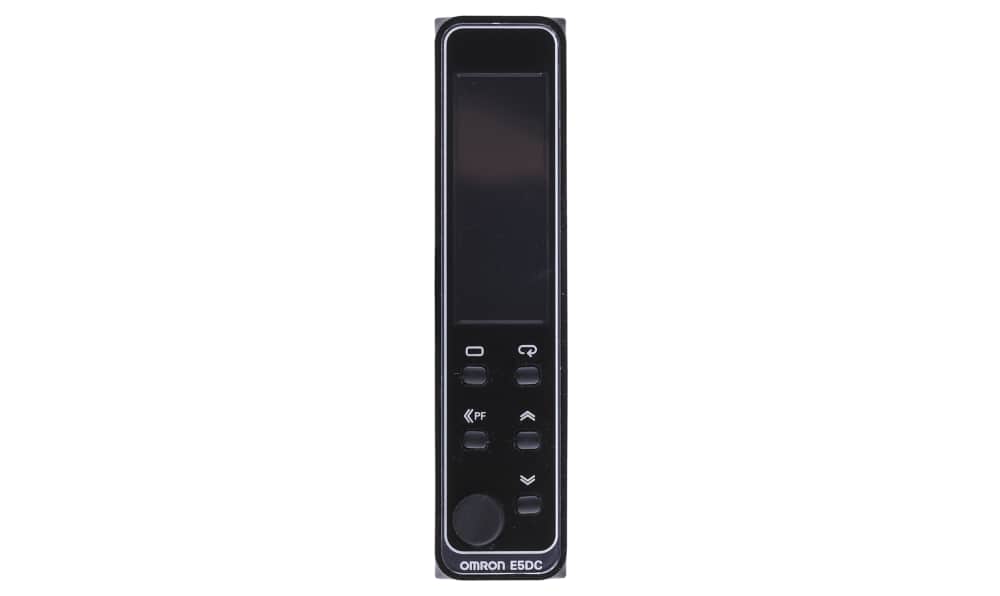

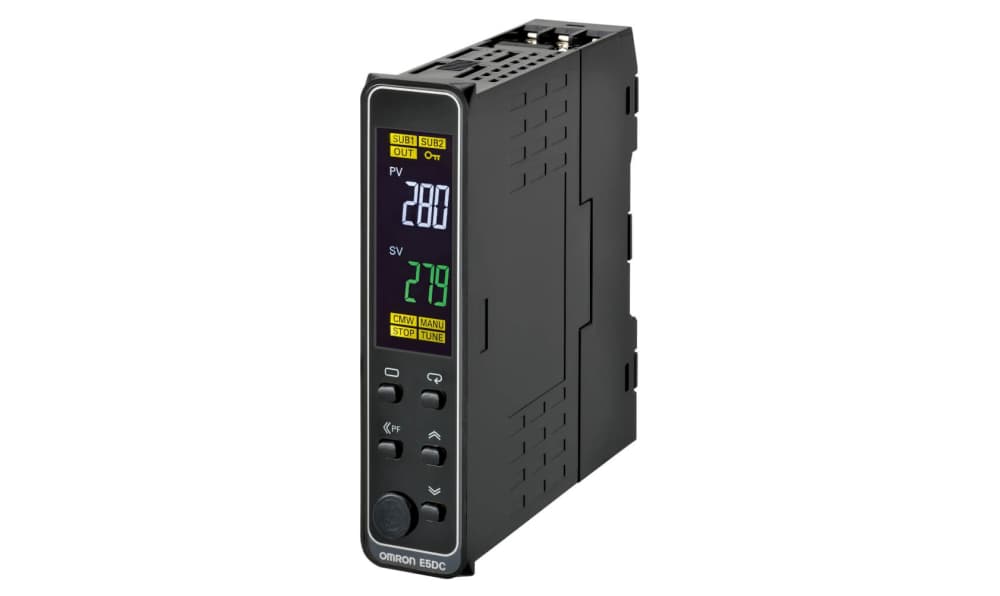

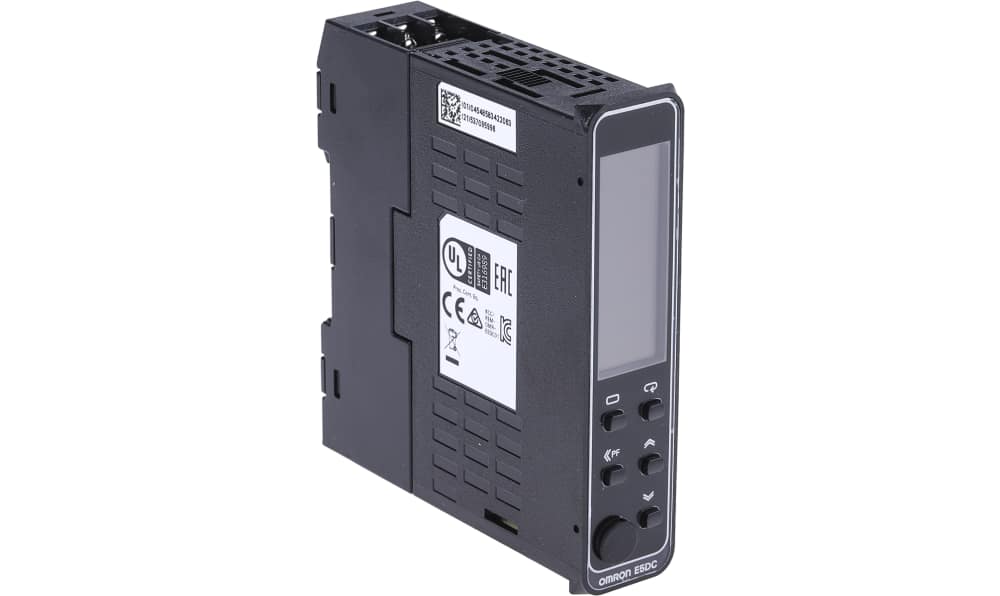

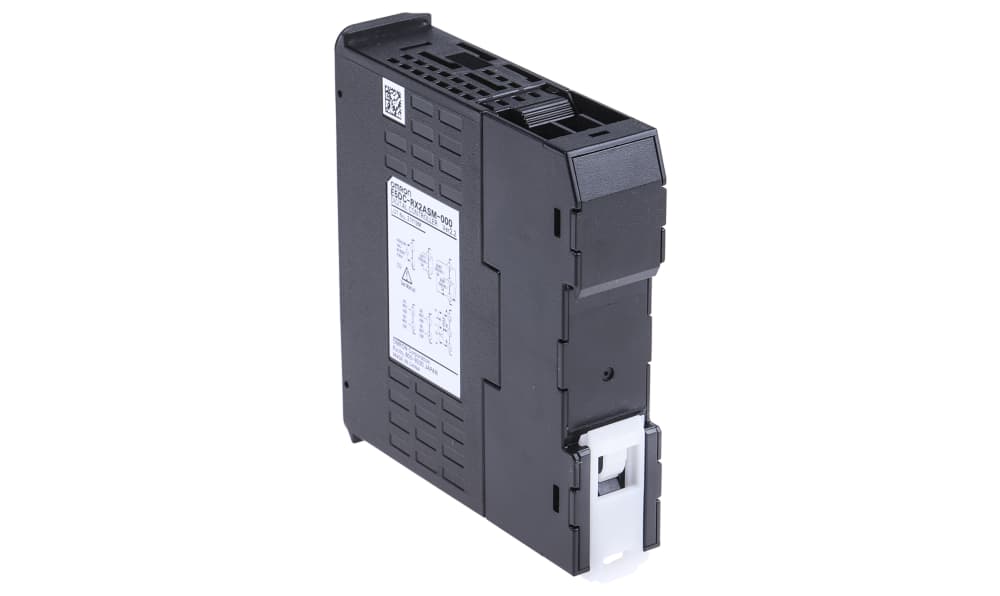

Name: Omron E5DC-RX2ASM-000, E5DC DIN Rail, Panel Mount PID Temperature Controller, 48 x 48mm, 2 Output Relay, 100 → 240 V ac Supply Voltage
Brand: OMRON
SKU: E5DC-RX2ASM-000
Availability: OutOfStock

Omron E5DC-RX2ASM-000, E5DC DIN Rail, Panel Mount PID Temperature Controller, 48 x 48mm, 2 Output Relay, 100 → 240 V ac Supply Voltage

Client Protection

Dedicated Support

Client Protection

Dedicated Support

Omron E5DC-RX2ASM-000, E5DC DIN Rail, Panel Mount PID Temperature Controller, 48 x 48mm, 2 Output Relay, 100 → 240 V ac Supply Voltage

Part Number : E5DC-RX2ASM-000

Availability: Sold out

Detailed Description
Specifications

Omron E5DC Series PID Temperature Controller, 100 to 240V AC Supply Voltage, IP00 / IP20 - E5DC-RX2ASM-000

This PID temperature controller is intended for precise temperature management in various industrial settings. Its capacity to handle multiple thermocouples makes it vital for maintaining optimal operational conditions. This device is essential for professionals in automation, electronics, and mechanical industries.

Features & Benefits

• Supports various thermocouple types for different temperature sensing
• Adjustable temperature control for customised performance
• ON/OFF and PID modes for operational flexibility
• Compact DIN rail or panel-mount options facilitate installation
• Universal input capability caters to diverse measurement requirements
• IP00 and IP20 ratings offer adequate protection for indoor use

Applications

• Utilised for precise temperature control in manufacturing processes
• Suitable for monitoring temperature in ovens and furnaces
• Applicable in HV AC systems for environmental regulation
• Employed for temperature management in food processing equipment
• Used in laboratories for accurate temperature measurements

How to ensure accurate readings with the device?

Use the appropriate thermocouple type that fits your temperature range for optimal accuracy.

What is the installation procedure for this temperature controller?

Adhere to the manufacturer’s guidelines for connecting the device to the power supply and input signals.

Can this device be used for outdoor applications?

It is designed for indoor use due to its IP ratings, which may not withstand outdoor conditions.

Is it possible to modify the set temperature range?

Yes, the controller allows adjustments to temperature settings according to your needs.

What type of maintenance is required to keep it functioning properly?

Regularly inspect connections and perform software updates, if applicable, to ensure consistent operation.

Brand	Omron
Output Type	Relay
Supply Voltage	100 → 240 V ac
Size	48 x 48mm
Number of Outputs	2
Minimum Operating Temperature	-10°C
Maximum Operating Temperature	+50°C
Temperature Range	+100 → +1800 (Type B Thermocouple) °C, 0 → +1300 (Type PL II Thermocouple) °C, 0 → +1700 (R & S Thermocouples) °C, 0 → +2300 (Type W Thermocouple) °C, -100 → +850 (Type J Thermocouple) °C, -100 → +850 (Type L Thermocouple) °C, -199.9 → +500 (JPT100) °C, -200 → +1300 (Type K Thermocouple) °C, -200 → +1300 (Type N Thermocouple) °C, -200 → +400 (Type T Thermocouple) °C, -200 → +400 (Type U Thermocouple) °C, -200 → +600 (Type E Thermocouple) °C, -200 → +850 (PT100) °C
Control Type	ON/OFF, PID, 2-PID Controller
Communication Module Available	No
Display Type	11-Segment Digital Display
IP Rating	IP00, IP20
Series	E5DC
Range	Omron E5DC
Mounting Type	DIN Rail, Panel Mount
Additional Functionality	ON/OFF
Input Type	Universal, Platinum Resistance Thermometer, PT100, Thermocouple, Analogue
Panel Depth	85mm
Termination Type	Screw terminal block
