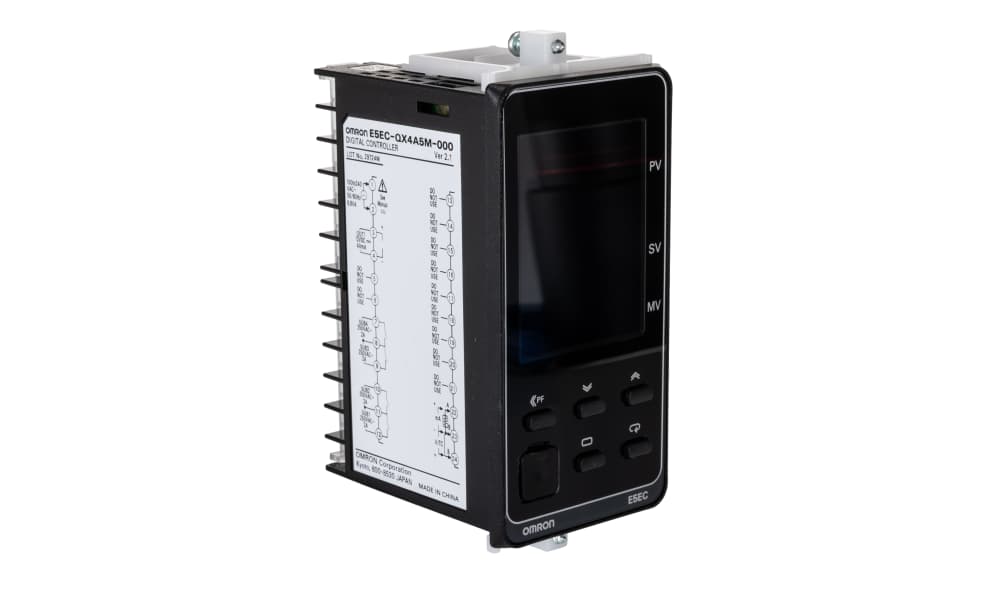

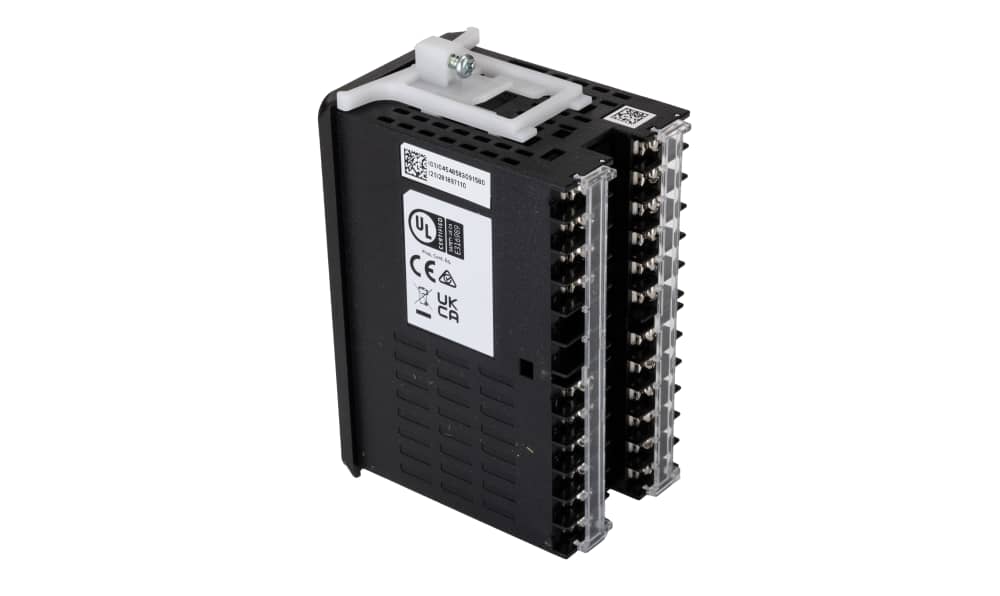

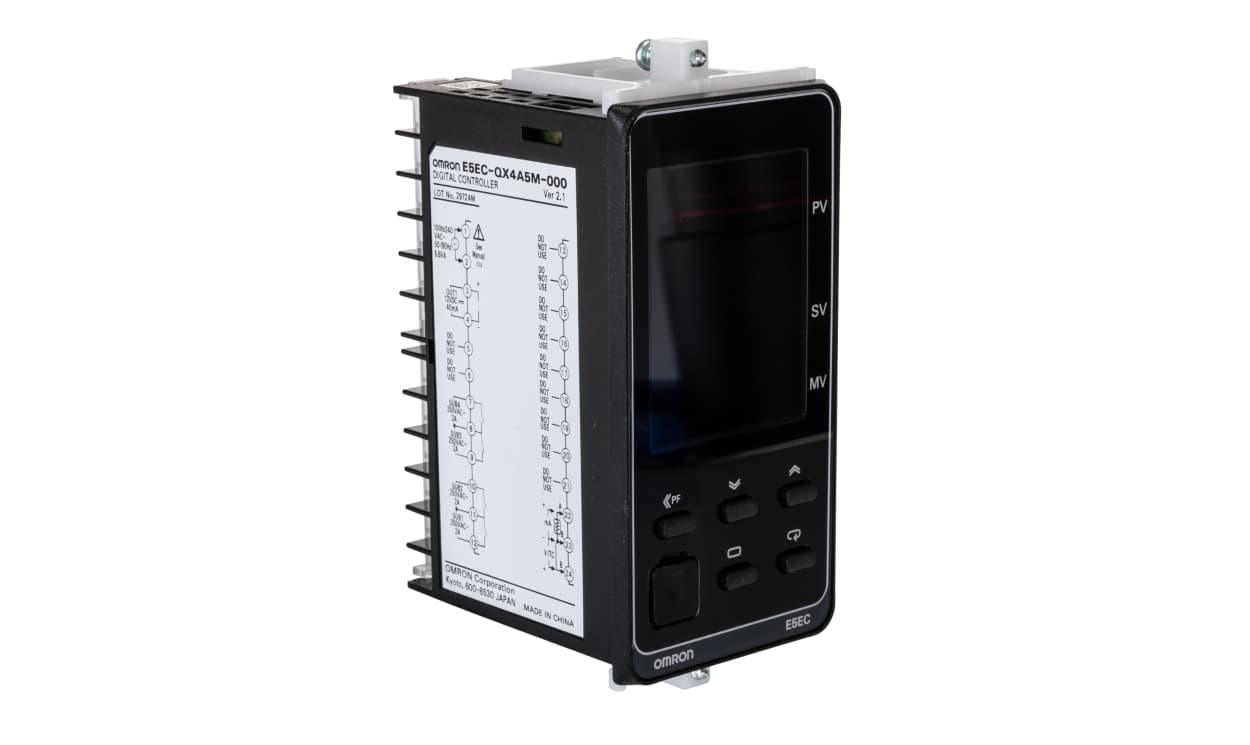

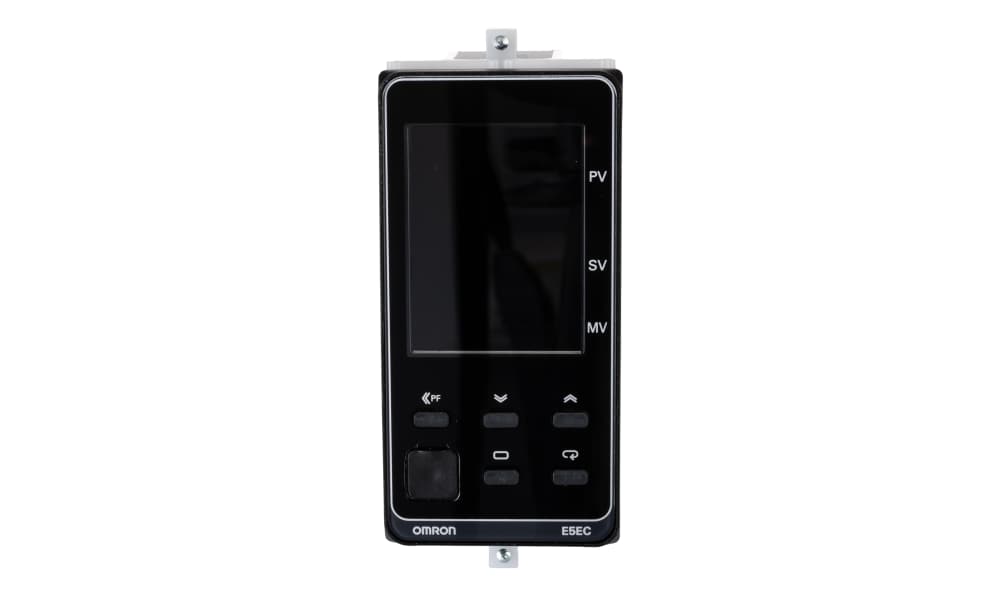

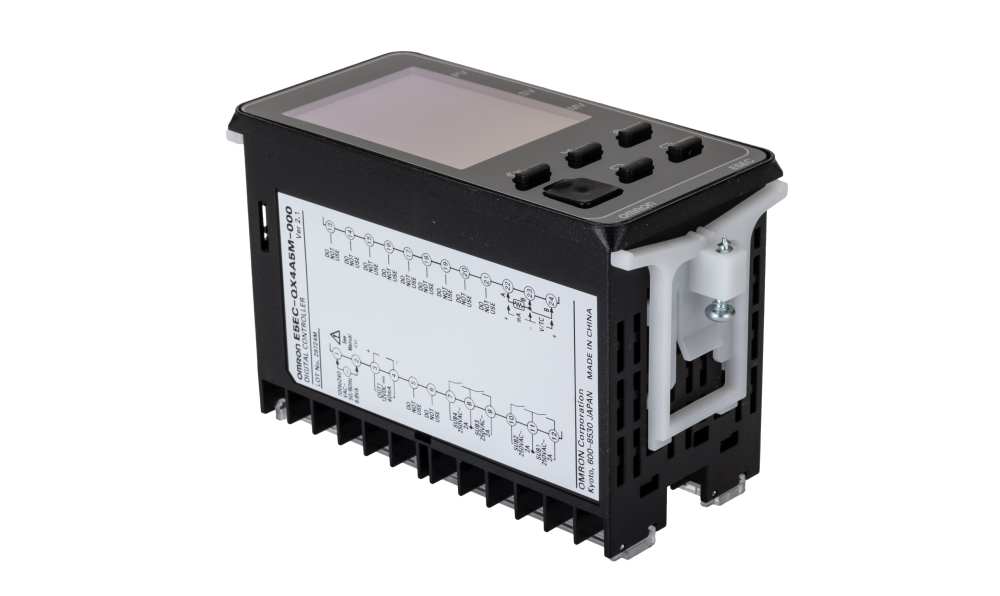

Name: Omron E5EC-QX4A5M-000, E5EC Panel Mount PID Temperature Controller, 48 x 48mm, 1 Output SSR, Solid State Relay, Logic, 100 → 240
Brand: OMRON
SKU: E5EC-QX4A5M-000
Availability: OutOfStock

Omron E5EC-QX4A5M-000, E5EC Panel Mount PID Temperature Controller, 48 x 48mm, 1 Output SSR, Solid State Relay, Logic, 100 → 240

Client Protection

Dedicated Support

Client Protection

Dedicated Support

Omron E5EC-QX4A5M-000, E5EC Panel Mount PID Temperature Controller, 48 x 48mm, 1 Output SSR, Solid State Relay, Logic, 100 → 240

Part Number : E5EC-QX4A5M-000

Availability: Sold out

Detailed Description
Specifications

Omron E5EC Series PID Temperature Controller, 100 to 240V Supply Voltage, Panel Mount - E5EC-QX4A5M-000

This PID temperature controller is essential for precise temperature management in various industrial settings. It is designed for panel mount installation, measuring 96x48mm, and operates within a supply voltage range of 100 to 240V. Capable of managing temperatures from -10 to +55°C, it offers both ON/OFF and PID control for enhanced performance.

Features & Benefits

• Universal input for compatibility with a variety of sensors
• SSR output facilitates solid state relay functionality
• Versatile temperature range for diverse applications
• Panel mount design for easy installation
• Supports PT100 for accurate temperature measurement
• Improved temperature control enhances system stability

Applications

• Temperature control systems in manufacturing
• Automation in HVAC units
• Process control in food production
• Laboratory equipment requiring precise thermal regulation

Is it suitable for high-temperature environments?

It operates efficiently up to a maximum of 55°C.

Will it maintain stable temperature control?

The ON/OFF and PID control types ensure consistent temperature regulation.

Can it be easily integrated into existing systems?

The panel mount design allows for straightforward integration into control panels.

Is the voltage range flexible for varying applications?

Yes, it operates on a supply voltage from 100 to 240V.

Omron - E5GC, E5CC, E5EC, E5AC, E5DC, E5CN & E5CB Ranges

Brand	Omron
Output Type	SSR, Solid State Relay, Logic
Supply Voltage	100 → 240 V
Size	48 x 48mm
Number of Outputs	1
Minimum Operating Temperature	-10°C
Maximum Operating Temperature	+55°C
Temperature Range	-10 → +55 °C
Control Type	ON/OFF, PID Controller
Mounting Type	Panel Mount
Additional Functionality	ON/OFF, PID Controller
Input Type	Universal, Platinum Resistance Thermometer, PT100, Thermocouple, Analogue
Series	E5EC
Range	+10 → +70 °C, +115 → +165 °C, +140 → +260 °C, +60 → +120 °C
Panel Depth	60mm
Termination Type	Screw
