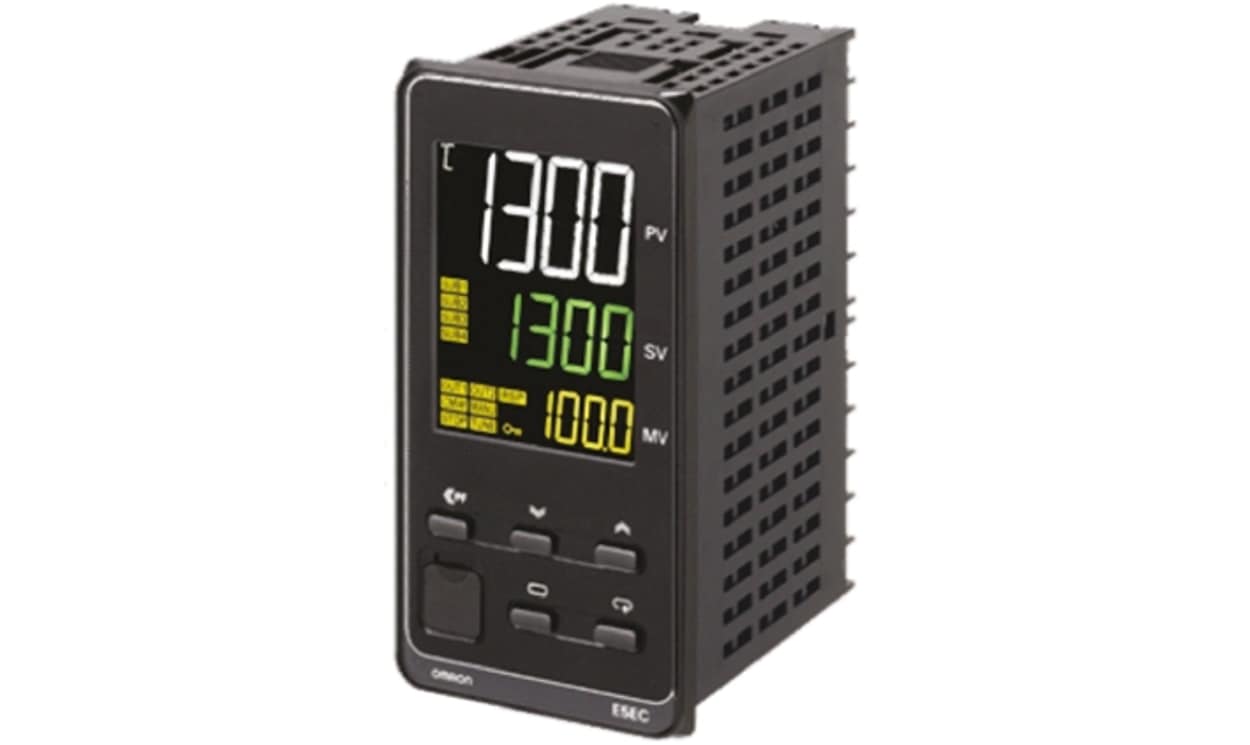

Name: Omron E5EC-RR4A5M-010, E5EC Panel Mount PID Temperature Controller, 48 x 48mm, 2 Output Relay, 2 Relays, 100 → 240 V ac Supply Voltage
Brand: OMRON
SKU: E5EC-RR4A5M-010
Availability: OutOfStock

Client Protection

Dedicated Support

Client Protection

Dedicated Support

Omron E5EC-RR4A5M-010, E5EC Panel Mount PID Temperature Controller, 48 x 48mm, 2 Output Relay, 2 Relays, 100 → 240 V ac Supply Voltage

Part Number : E5EC-RR4A5M-010

Availability: Sold out

Detailed Description
Specifications

E5EC Digital Temperature Controllers (48 x 96mm)

Premium range of temperature controllers which support a wide variety of applications. The controllers cover a comprehensive array of sensor inputs including Universal, Thermocouple, PT and Analogue current/voltage. Within the E5EC range, there is a temperature controller to suit your requirements.

• Large white LCD display, 18 mm of height for best visibility
• Three level display- PV/SV/MV displayed at the same time with 4-digit display
• 50 ms sampling period time
• Extended range of I/O's: 4 auxiliary outputs, 6 event inputs, transfer output and remote SP's
• Short housing case with only 60 mm of depth
• Easy connection to PLC with communications that require no programming
• Component communications can be used to link temperature controllers to each other
• Tool ports provided both on top panel and front panel
• Easy set up with CX-Thermo software (Windows XP, 7) without additional power supply via USB conversion cable

Approvals

Omron - E5GC, E5CC, E5EC, E5AC, E5DC, E5CN & E5CB Ranges

Brand	Omron
Output Type	Relay, 2 Relays
Supply Voltage	100 → 240 V ac
Size	48 x 48mm
Number of Outputs	2
Control Type	ON/OFF, PID, 2-PID Controller
Input Type	Universal, Platinum Resistance Thermometer, PT100, Thermocouple, Analogue
Series	E5EC
Range	0 → +260 (Infrared Temperature Sensor) °C, 0 → 10 V, 0 → 20 mA, -200 → +2300 (Thermocouple) °C, -200 → +850 (Platinum Resistance Thermometer) °C
Mounting Type	Panel Mount
Display Colour	White
Panel Depth	59mm
Termination Type	Screw terminal block
