Name: Omron E5GC-RX1ACM-000, E5GC Panel Mount PID Temperature Controller, 24 x 48mm 1 Input, 1 Output Relay, 100 → 240 V ac Supply Voltage
Brand: OMRON
SKU: E5GC-RX1ACM-000
Availability: OutOfStock

Client Protection

Dedicated Support

Client Protection

Dedicated Support

Omron E5GC-RX1ACM-000, E5GC Panel Mount PID Temperature Controller, 24 x 48mm 1 Input, 1 Output Relay, 100 → 240 V ac Supply Voltage

Part Number : E5GC-RX1ACM-000

Availability: Sold out

Detailed Description
Specifications

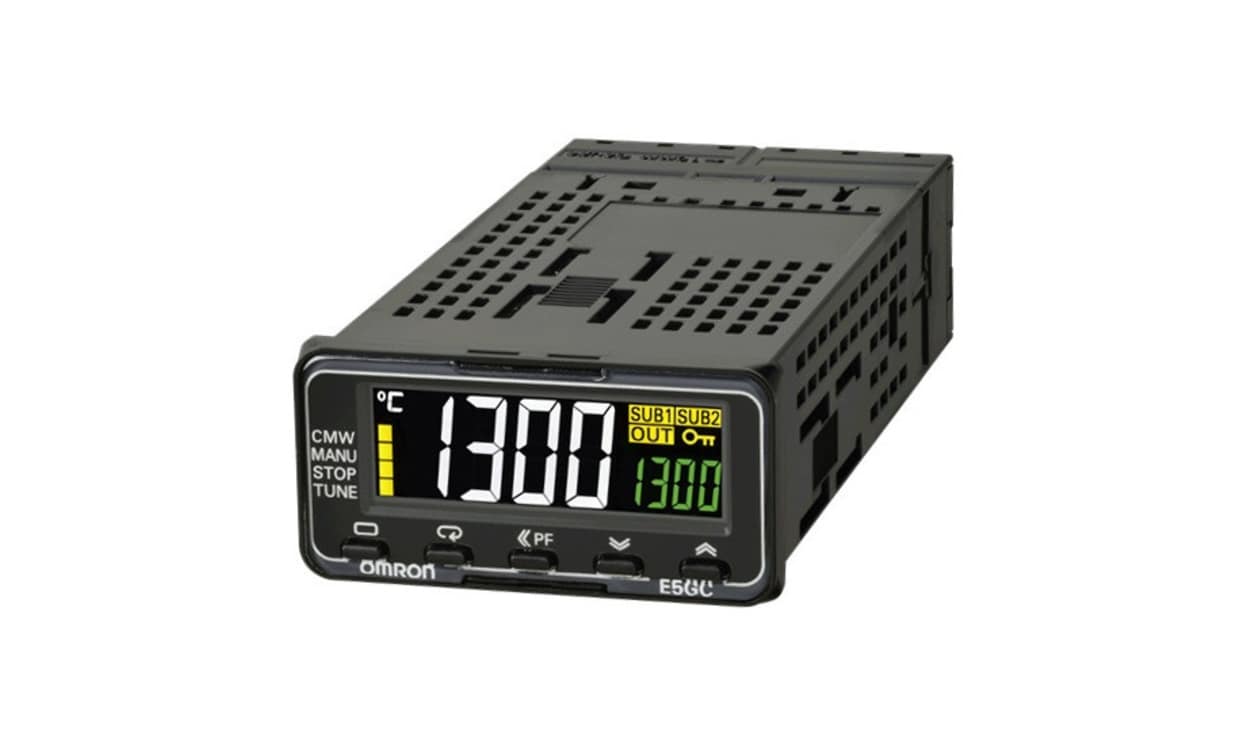

Omron E5GC Series PID Temperature Controller, 100 to 240V AC Supply Voltage, 24 x 48mm size - E5GC-RX1ACM-000

This PID temperature controller is designed for precise temperature management in various industrial applications. With compact dimensions of 24 x 48mm, the device operates efficiently under a supply voltage of 100 to 240V AC. It is capable of handling a wide temperature range from -200°C to +230°C, catering to diverse temperature control systems.

Features & Benefits

• Supports ON/OFF, PID, and 2-PID control types
• Offers universal input for flexibility with various sensors
• Designed for panel mount installation for convenience
• Features relay output for reliable switching
• IP66 rating affords excellent protection against dust and water

Applications

• Ideal for temperature control in manufacturing equipment
• Utilised in industrial settings for precise thermal management
• Compatible with PT100 sensors for accurate readings
• Used in environments requiring robust temperature regulation
• Suitable for requiring push-in terminations

What input types are compatible with this controller?

It supports universal inputs, including Platinum Resistance Thermometers, PT100, and thermocouples, enhancing its adaptability in various applications.

How does the IP66 rating benefit this device?

The IP66 rating ensures protection from dust and powerful water jets, making it suitable for challenging industrial environments where exposure to moisture and particulates is a concern.

Can the temperature range be adjusted for different applications?

Yes, the temperature range from -200°C to +230°C can accommodate a variety of needs, making it versatile for multiple industrial processes requiring tailored thermal management.

Brand	Omron
Output Type	Relay
Supply Voltage	100 → 240 V ac
Size	24 x 48mm
Number of Inputs	1
Number of Outputs	1
Minimum Operating Temperature	-10°C
Maximum Operating Temperature	+55°C
Temperature Range	-200 → +2300 °C
Control Type	ON/OFF, PID, 2-PID Controller
IP Rating	IP00, IP20, IP66
Series	E5GC
Input Type	Universal, Platinum Resistance Thermometer, PT100, Thermocouple, Analogue
Mounting Type	Panel Mount
Termination Type	Push In
