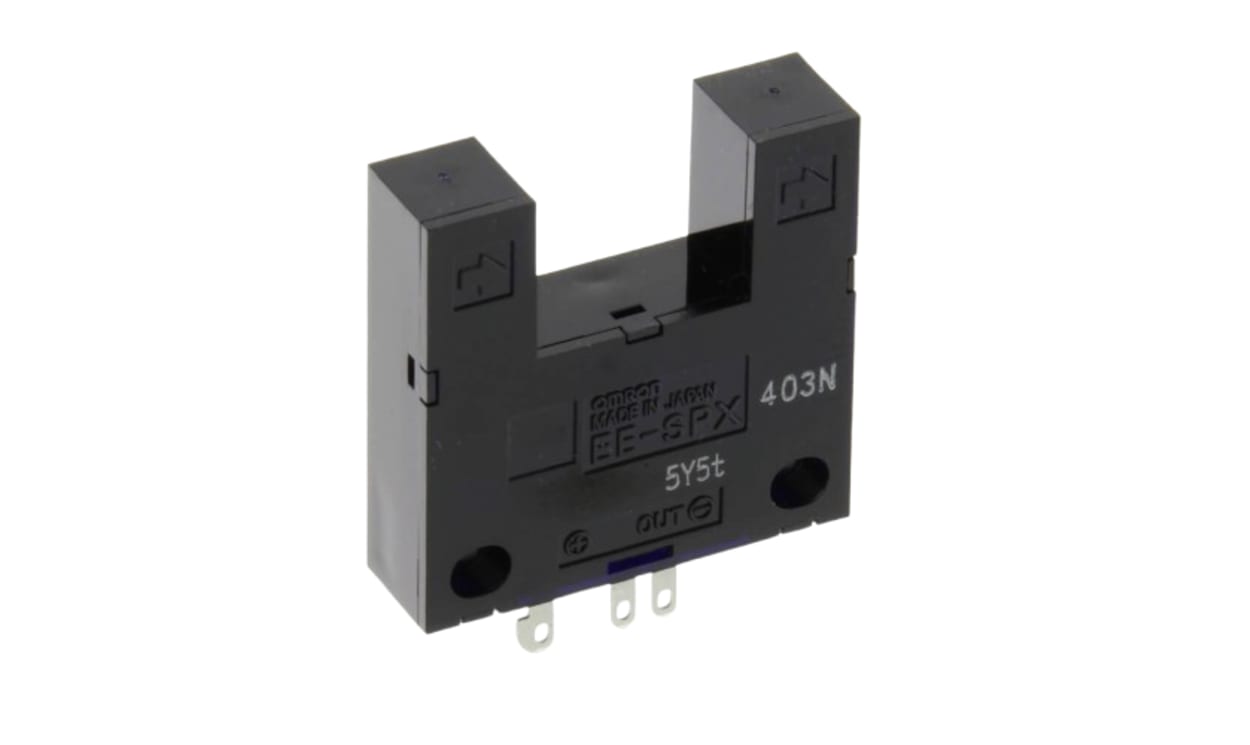

OMRON EE-SPX403N | Through-Beam Fork Sensor | 13 mm, NPN, Non-Solder Connector
OMRON's EE-SPX403N through-beam fork sensor offers a sensing distance of 13 mm and an NPN output. The unit terminates in a non-solder connector, uses an infrared light source and carries IP50 protection.
- Supply voltage up to 24 V DC
- Maximum current 80 mA
- Operating temperature -10 °C to +55 °C
- Housing: PC (polycarbonate)
- Series: EE-SPX
- Detailed Description
- Specifications
- Downloads

Omron EE-SPX Series Photoelectric Sensor, 13mm Detection Range, NPN Output Type - EE-SPX403N
Features & Benefits
• Infrared technology allows reliable object detection
• IP50 rated sensor protects against dust and contact
• Compact design suited for space-constrained use
Applications
• Applied in assembly lines for part detection
• Utilised in packaging for precise positioning
• used in automated machinery for safety monitoring
How does the detection range affect performance in various settings?
What is the advantage of using a non-solder connector?
Can this be installed in areas with fluctuating temperatures?
How fast does this sensor respond to detected objects?
| Brand | Omron |
| Series | EE-SPX |
| Detection Type | Through Beam |
| Detection Range | 13 mm (0.512 in) |
| Sensor Style | Fork |
| Output Type | NPN |
| Electrical Connection | Non-Solder Connector |
| Light Source | Infrared |
| Maximum DC Voltage | 24V |
| IP Rating | IP50 |
| Maximum Current | 80 mA |
| Minimum Operating Temperature | -10 °C (14 °F) |
| Housing Material | PC |
| Maximum Operating Temperature | +55 °C (131 °F) |
