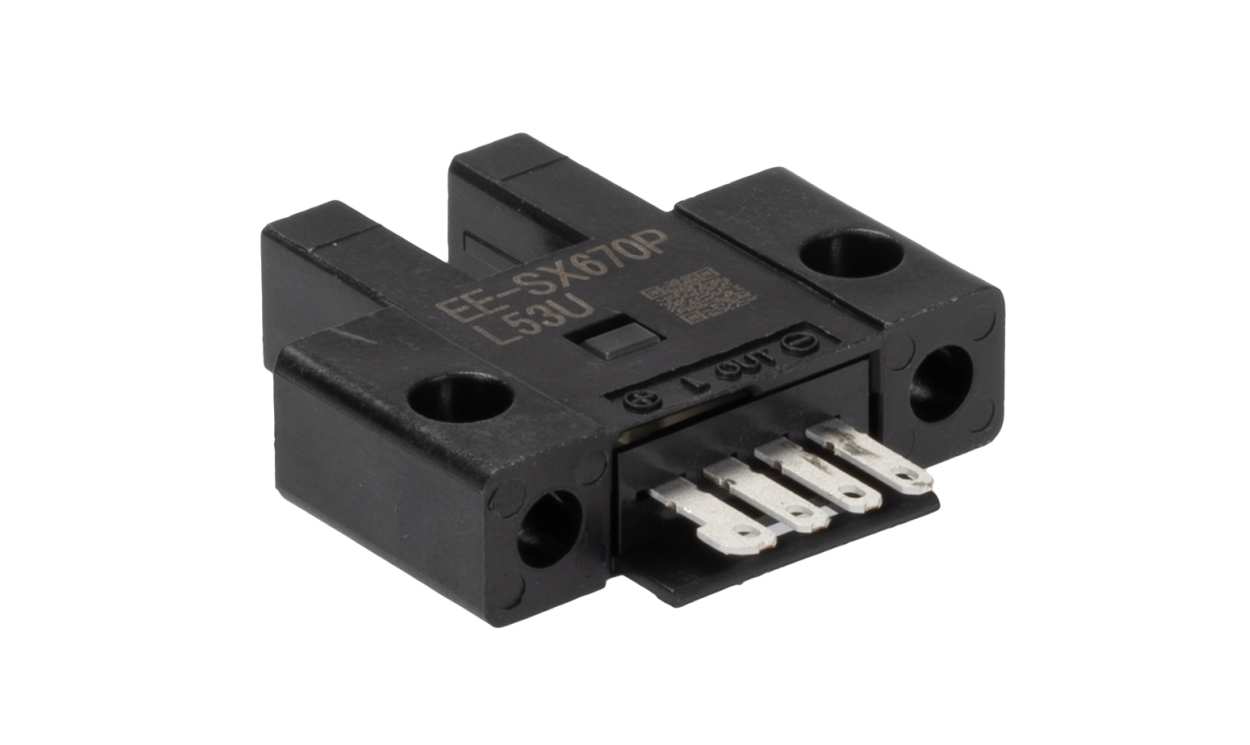

OMRON EE-SX670P | Through-Beam Fork Sensor | 5 mm, PNP, 4-Pin Connector
OMRON's EE-SX670P through-beam fork sensor offers a sensing distance of 5 mm and a PNP output. The unit terminates in a 4-pin connector, uses an infrared light source and carries IP50 protection.
- Up to 24 V DC supply
- 12 mA maximum current
- Responds in 0.17 ms
- Temperature range -25 °C to +55 °C
- Body material: PBT
- Mode: light-on / dark-on switching
- Detailed Description
- Specifications
- Downloads
Omron EE-SX67 Series Photoelectric Sensor, 5mm Detection Range, PNP Output - EE-SX670P
Features & Benefits
• Fast response time of 0.17ms supports high-speed operations
• PNP output allows compatibility with various control systems
• IP50 rated, making it suitable for industrial environments
• 4-pin connector facilitates simple electrical integration
Applications
• Accurate part placement in packaging machines
• Product count verification in conveyor systems
• Efficient material handling in sorting systems
What type of electrical connection does it require?
Can it operate in extreme temperatures?
How does it respond to moving objects?
Is it compatible with various automation systems?
| Brand | Omron |
| Series | EE-SX67 |
| Detection Type | Through Beam |
| Detection Range | 5 mm (0.197 in) |
| Sensor Style | Fork |
| Output Type | PNP |
| Electrical Connection | 4 Pin Connector |
| Switching Mode | Light / Dark switching |
| Light Source | Infrared |
| Response Time | 0.17 ms |
| Maximum DC Voltage | 24V |
| IP Rating | IP50 |
| Maximum Current | 12 mA |
| Minimum Operating Temperature | -25 °C (-13 °F) |
| Housing Material | PBT |
| Maximum Operating Temperature | +55 °C (131 °F) |
| Terminal Type | Connector |
| Standards Met | CE |
