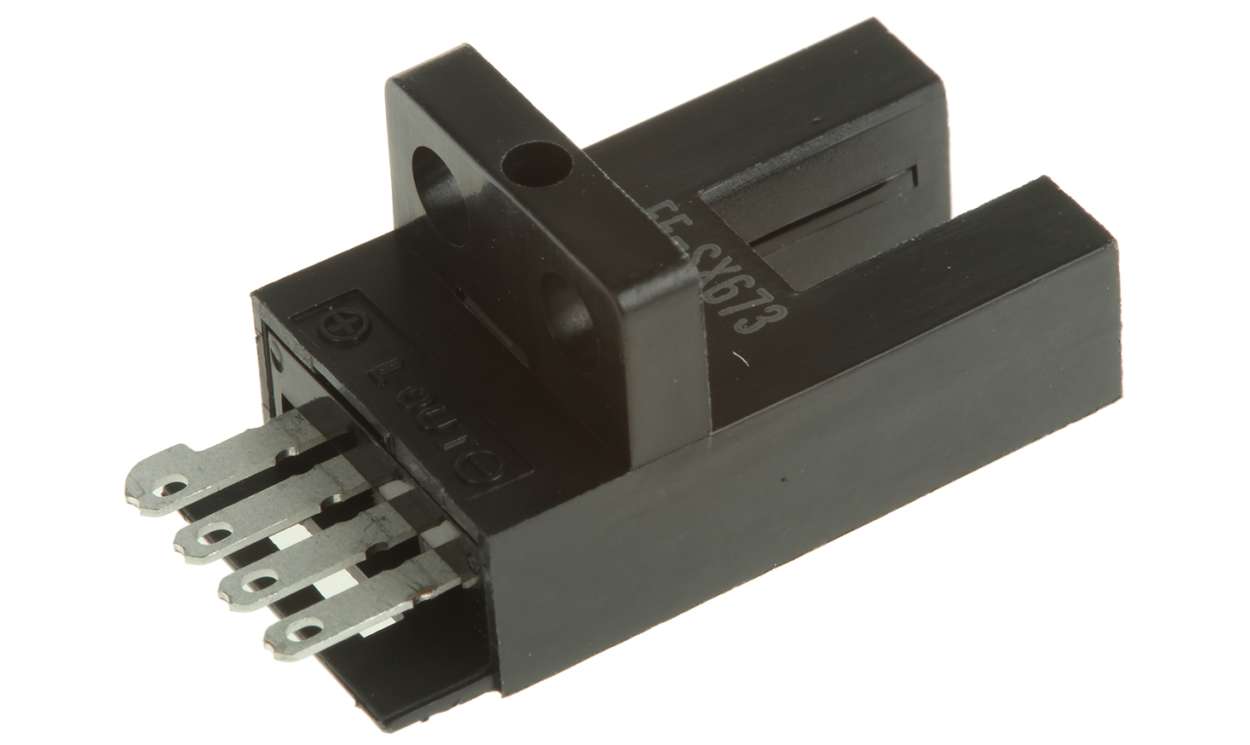

OMRON EE-SX673 | Slot-Type Photo Micro Sensor | 5 mm, NPN, System Connector
This OMRON slot-type photo micro sensor, part number EE-SX673, switches an NPN output and has a detection range of 5 mm. The sensor terminates in a system connector, uses an infrared light source and carries IP50 protection. OMRON's description specifies a close-mounting slot design with selectable light-on / dark-on operation.
- Up to 24 V DC supply
- 100 mA maximum current
- Responds in 0.17 ms
- Temperature range -25 °C to +55 °C
- Body material: PBT
- Supports close mounting
- Detailed Description
- Specifications
- Features
- Downloads




Omron Series EE Photoelectric Sensor, 5mm Detection Range, IP50 - EE-SX673
Features & Benefits
• Infrared light technology enhances object detection reliability
• Fast response time of 0.17ms improves operational efficiency
• IP50 rating protects against dust
• Maximum operating temperature of +55°C accommodates diverse environments
• Compact design allows for close mounting
Applications
• Position sensing for automation equipment
• Counting objects on conveyor systems
• Effective sorting in material handling
• Movement detection in robotics
Can it operate in extreme low temperatures?
Will it require additional components for installation?
Is it suitable for outdoor use?
Can it be used with different voltage inputs?
Is it easy to monitor the operation status?
| Brand | Omron |
| Series | EE |
| Detection Type | Through Beam |
| Detection Range | 5 mm (0.197 in) |
| Sensor Style | Fork |
| Output Type | NPN |
| Electrical Connection | System Connector |
| Light Source | Infrared |
| Response Time | 0.17 ms |
| Maximum DC Voltage | 24V |
| IP Rating | IP50 |
| Maximum Current | 100 mA |
| Minimum Operating Temperature | -25 °C (-13 °F) |
| Housing Material | PBT |
| Maximum Operating Temperature | +55 °C (131 °F) |
| Mounting Type | Close Mount |
Photo micro sensor, slot type, Close-mounting, L-ON/D-ON selectable, NPN, connector

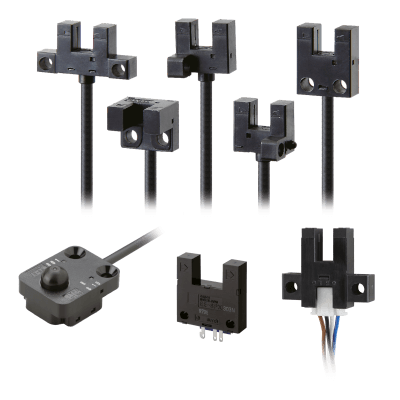

Other models in this series
