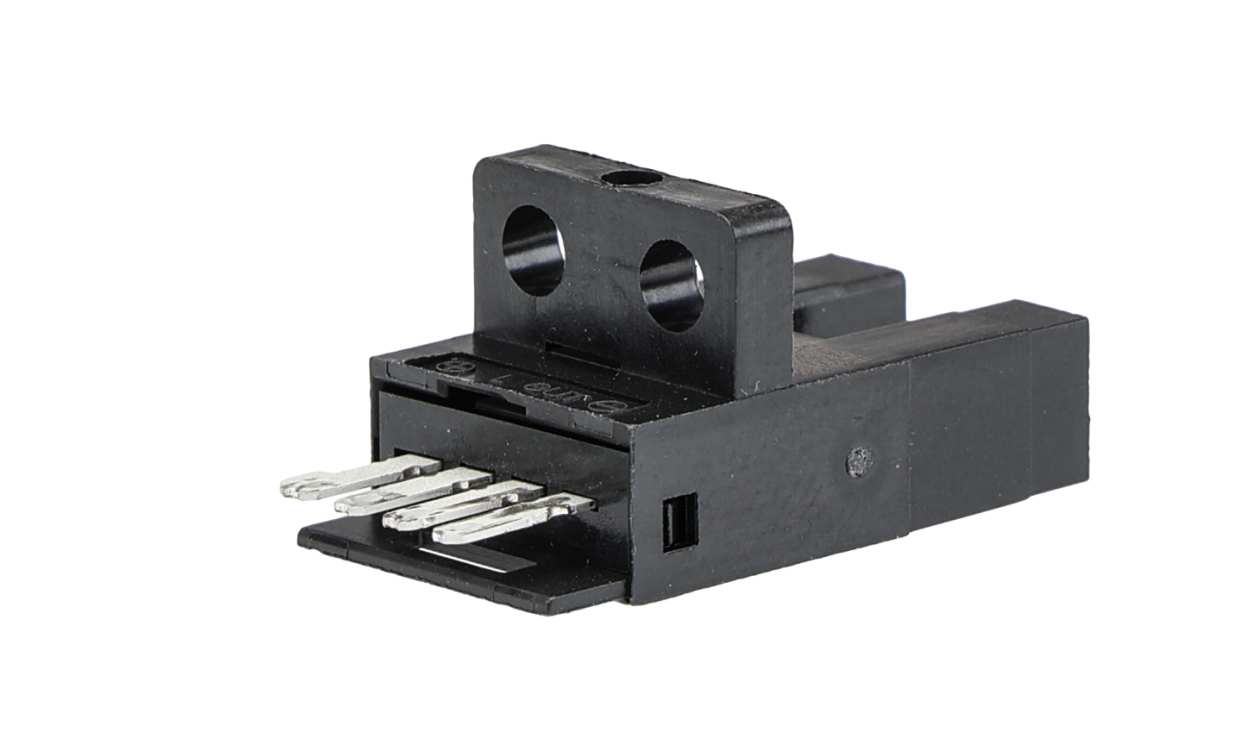

OMRON EE-SX673R | Through-Beam Fork Sensor | 5 mm, PNP, System Connector
OMRON's EE-SX673R through-beam fork sensor offers a sensing distance of 5 mm and a PNP output. The unit uses a system connector for connection, is fitted with an infrared LED light source and is rated IP50.
- Up to 24 V DC supply
- 100 mA maximum current
- Responds in 0.17 ms
- Temperature range -25 °C to +55 °C
- Body material: PBT
- EE-SX67 series
- Detailed Description
- Specifications
- Downloads
Omron EE-SX67 Series Photoelectric Sensor, 5mm Detection Range, PNP Output Type - EE-SX673R
Features & Benefits
• IP50 rated sensor provides protection against dust ingress
• Infrared LED sensor reduces the risk of interference from external light
• Current capacity of 100mA supports various load requirements
Applications
• Ideal for detecting positioning in automated assembly lines
• Suitable for monitoring liquid levels in industrial
• Implemented in light curtains and safety barriers for personnel detection
What is the maximum detection distance for this sensor?
What is the output type of this device, and how does it affect connectivity?
Can this sensor function effectively in environments with high operational temperatures?
How does the design of the sensor enhance its installation flexibility?
| Brand | Omron |
| Series | EE-SX67 |
| Detection Type | Through Beam |
| Detection Range | 5 mm (0.197 in) |
| Sensor Style | Fork |
| Output Type | PNP |
| Electrical Connection | System Connector |
| Light Source | Infrared LED |
| Response Time | 0.17 ms |
| Maximum DC Voltage | 24V |
| IP Rating | IP50 |
| Maximum Current | 100 mA |
| Minimum Operating Temperature | -25 °C (-13 °F) |
| Housing Material | PBT |
| Maximum Operating Temperature | +55 °C (131 °F) |
| Terminal Type | Connector |
