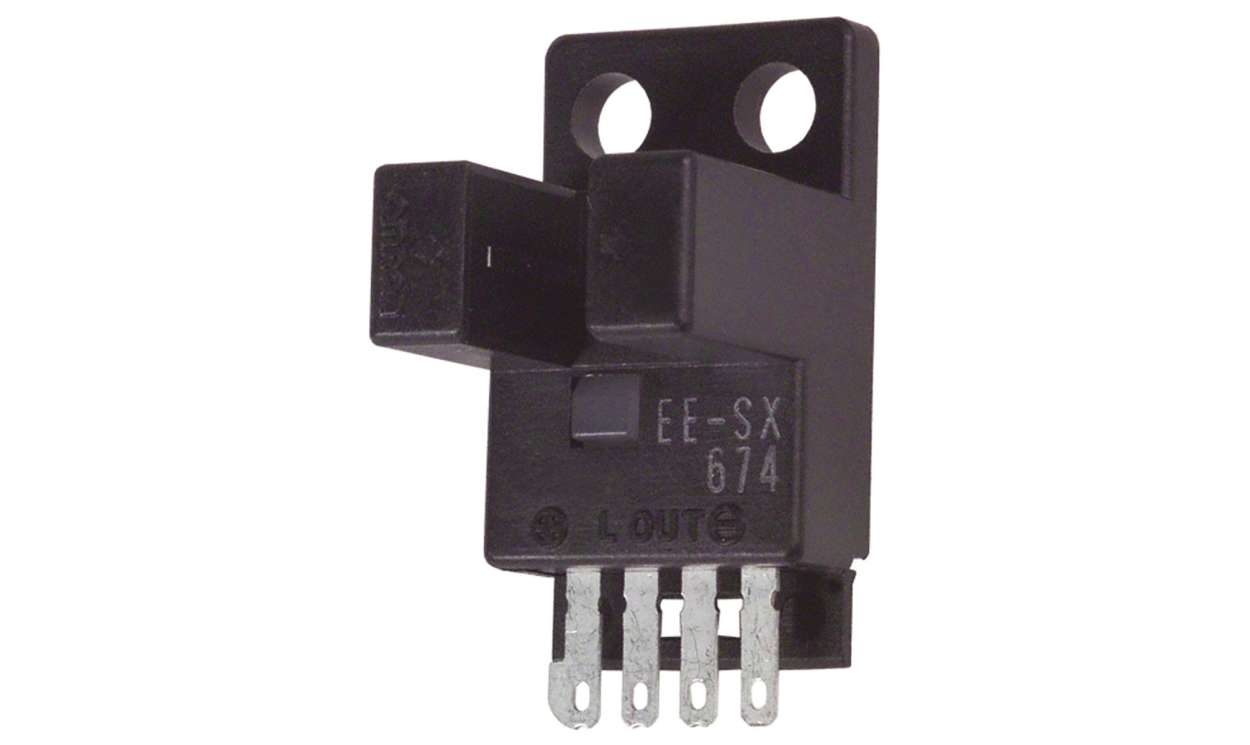

OMRON EE-SX674 | Through-Beam Fork Sensor | 5 mm, NPN, 4-Pin Connector
Combining an NPN output with a 5 mm sensing distance, the OMRON EE-SX674 is a through-beam fork sensor. This model terminates in a 4-pin connector, uses an infrared light source and carries IP50 protection.
- Supply voltage up to 24 V DC
- Maximum current 12 mA
- Response time 0.17 ms
- Operating temperature -25 °C to +55 °C
- Housing: PBT
- Mounting: close mounting
- Detailed Description
- Specifications
- Downloads
Omron Photoelectric Sensor, NPN Output, IP50 - EE-SX674
Features & Benefits
• Infrared light emission for reliable detection
• Compact and robust design for industrial environments
• Adjustable sensitivity for precise object detection
Applications
• Ideal for packaging and assembly lines to ensure product positioning
• Suitable for material handling to automate sorting processes
• Deployed in automated doors and gates for obstruction detection and safety
Can it detect transparent objects?
What environmental conditions does it tolerate?
Is it easy to install and align?
| Brand | Omron |
| Series | EE |
| Detection Type | Through Beam |
| Detection Range | 5 mm (0.197 in) |
| Sensor Style | Fork |
| Output Type | NPN |
| Electrical Connection | 4 Pin Connector |
| Light Source | Infrared |
| Response Time | 0.17 ms |
| Maximum DC Voltage | 24V |
| IP Rating | IP50 |
| Maximum Current | 12 mA |
| Minimum Operating Temperature | -25 °C (-13 °F) |
| Housing Material | PBT |
| Maximum Operating Temperature | +55 °C (131 °F) |
| Terminal Type | Connector |
| Standards Met | CE |
| Mounting Type | Close |
