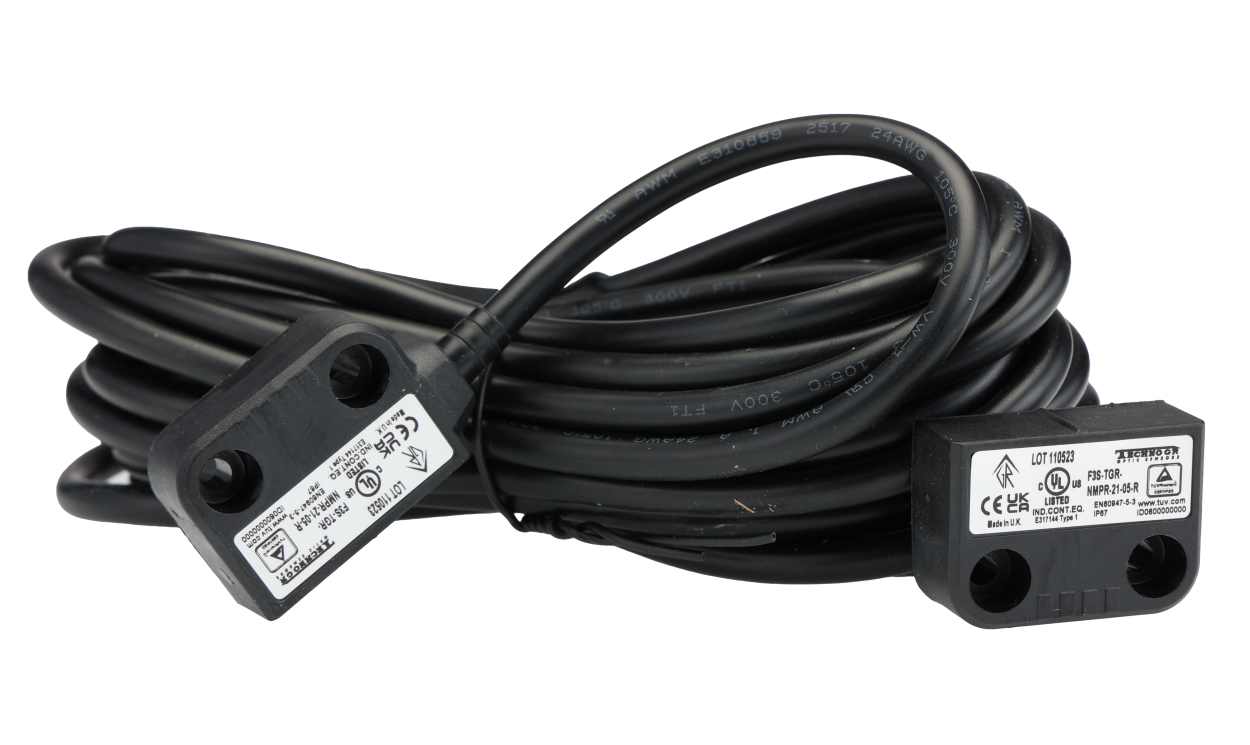

Name: Omron F3S-TGR-NMPR-21-05-R, F3S-TGR-NR Series Magnetic Non-Contact Safety Switch, 24V dc, Polyester Housing, 2NC, 5m Cable
Brand: OMRON
SKU: F3S-TGR-NMPR-21-05-R
Availability: OutOfStock

Omron F3S-TGR-NMPR-21-05-R, F3S-TGR-NR Series Magnetic Non-Contact Safety Switch, 24V dc, Polyester Housing, 2NC, 5m Cable

Client Protection

Dedicated Support

Client Protection

Dedicated Support

Omron F3S-TGR-NMPR-21-05-R, F3S-TGR-NR Series Magnetic Non-Contact Safety Switch, 24V dc, Polyester Housing, 2NC, 5m Cable

Part Number : F3S-TGR-NMPR-21-05-R

Availability: Sold out

Detailed Description
Specifications
Downloads

Omron F3S-TGR-NR Series Non-Contact Safety Switch, 24V DC Supply Voltage, 2NC Safety Contacts - F3S-TGR-NMPR-21-05-R

This non-contact safety switch is a robust solution designed for industrial automation applications. Featuring a compact rectangular shape, it measures 41mm in length, 26mm in width, and a depth of 13mm. With a supply voltage of 24V DC, this switch utilises a magnetic sensor principle and is constructed with durable polyester housing. The device ensures a high ingress protection rating of IP69K, making it suitable for challenging environments.

Features & Benefits

• Non-contact design reduces wear and enhances longevity
• Utilises magnetic sensing technology for reliable operation
• Two normally closed (2NC) safety contacts ensure effective monitoring
• Polyester housing offers resistance to harsh conditions

Applications

• Used for safeguarding machine access in automated systems
• Ideal for integration in production lines needing reliability
• Suitable for environments requiring robust safety measures
• Effective in where traditional switches may fail

What are the installation considerations for this type of switch?

The switch comes with a 5m cable, allowing for flexible positioning, and should be mounted where it can effectively detect the magnetic field without obstructions. Ensure that the sensor's orientation aligns with the intended actuator for optimal performance.

How does the IP69K rating benefit this product?

The IP69K rating indicates resistance to high-pressure, high-temperature water jets, making it ideal for sanitised environments where moisture and dirt exposure is prevalent. This feature ensures longevity and dependable functionality even in harsh conditions.

Is the product suitable for extreme temperatures?

Yes, the safety switch operates effectively in temperatures ranging from -25°C to +80°C, making it suitable for diverse industrial environments where temperature fluctuations occur.

How does the non-contact design enhance safety?

The non-contact mechanism prevents mechanical wear and tear, reducing the risk of failure over time. This feature not only improves safety by maintaining a clear separation but also extends the lifecycle of the switch, ensuring consistent operational integrity.

Brand	Omron
Supply Voltage	24V dc
Safety Contacts	2NC
Housing Material	Polyester
Connection Type	5m Cable
Sensor Principle	Magnetic
Series	F3S-TGR-NR
IP Rating	IP69K
Length	41mm
Depth	13mm
Width	26mm

Omron F3S-TGR-NMPR-21-05-R, F3S-TGR-NR Series Magnetic Non-Contact Safety Switch, 24V dc, Polyester Housing, 2NC, 5m Cable

DOWNLOAD CATALOG

F3S-TGR-NMPR-21-05-R Selection Guide - Safety Components A700000014068218

F3S-TGR-NMPR-21-05-R Brochure - Safety Interlock Switches A700000014068375
