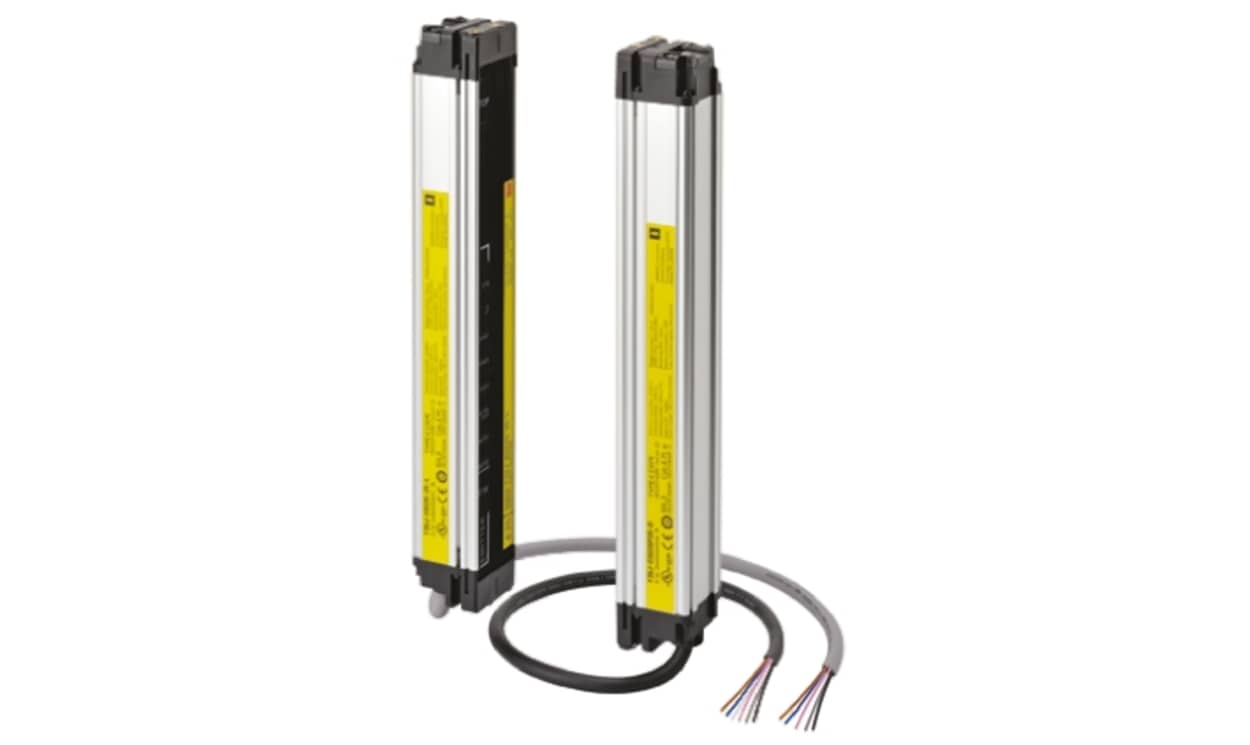

Omron F3SJ-E0785P25, F3SJ Series Light Curtain, Sender & Receiver, 38 Beam(s), 20mm Resolution

Name: Omron F3SJ-E0785P25, F3SJ Series Light Curtain, Sender & Receiver, 38 Beam(s), 20mm Resolution
Brand: OMRON
SKU: F3SJ-E0785P25
Availability: OutOfStock

Part Number : F3SJ-E0785P25

Availability: Sold out

Detailed Description
Specifications

Omron Safety Light Curtain

The Omron F3SJ-E series 38 beams 20mm resolution light curtain is the latest innovation ideal for straight forward on/off detection applications. This device simply stops the machine upon detection of personnel. The reduced wiring, quick-mount brackets, and easy to view alignment beams to ensure fast and easy installation. Additionally, one fixed response time ensures easy calculation of safety distance. The F3SJ-E is made with an aluminium case, PMMA resin (acrylic) optical cover, and ABS resin PBT cap.

Features and Benefits

Fast and easy installation
Easy to view diagnostics
Range is 7m
Protected height is 785mm
Very compact size of 30mm x 30mm
Cross talk prevention

Certifications

EC 61496-1,
EN 61496-1 UL 61496-1
IEC 61496-2
CLC/TS 61496-2
UL 61496-2
Type 4 AOPD
IEC 61508-1 to -3
EN 61508-1 to -3 SIL3 IEC 13849-1: 2006
EN ISO 13849-1: 2008 (PLe, Cat.4)
UL 508
UL 1998
CAN/CSA C22.2 No.14
CAN/CSA C22.2 No.0.8
TUV certified
CE certified

Brand	Omron
Series	F3SJ
Beam Resolution	20mm
Component Type	Receiver, Sender
Safety Type	4
SIL IEC 61508	3
PL EN ISO 13849-1	e
Number of Beams	38
Protective Height	785mm
Minimum Scanning Distance	0.2m
Maximum Scanning Distance	7m
Maximum Response Time	15 (On to Off) ms, 70 (Off to On) ms
Supply Voltage	24 V dc
Length	30mm
Height	854mm
Features	Muting
Terminal Type	M12 Connector
Dimensions	30 x 30 x 854 mm
Width	30mm
Application	Hand
