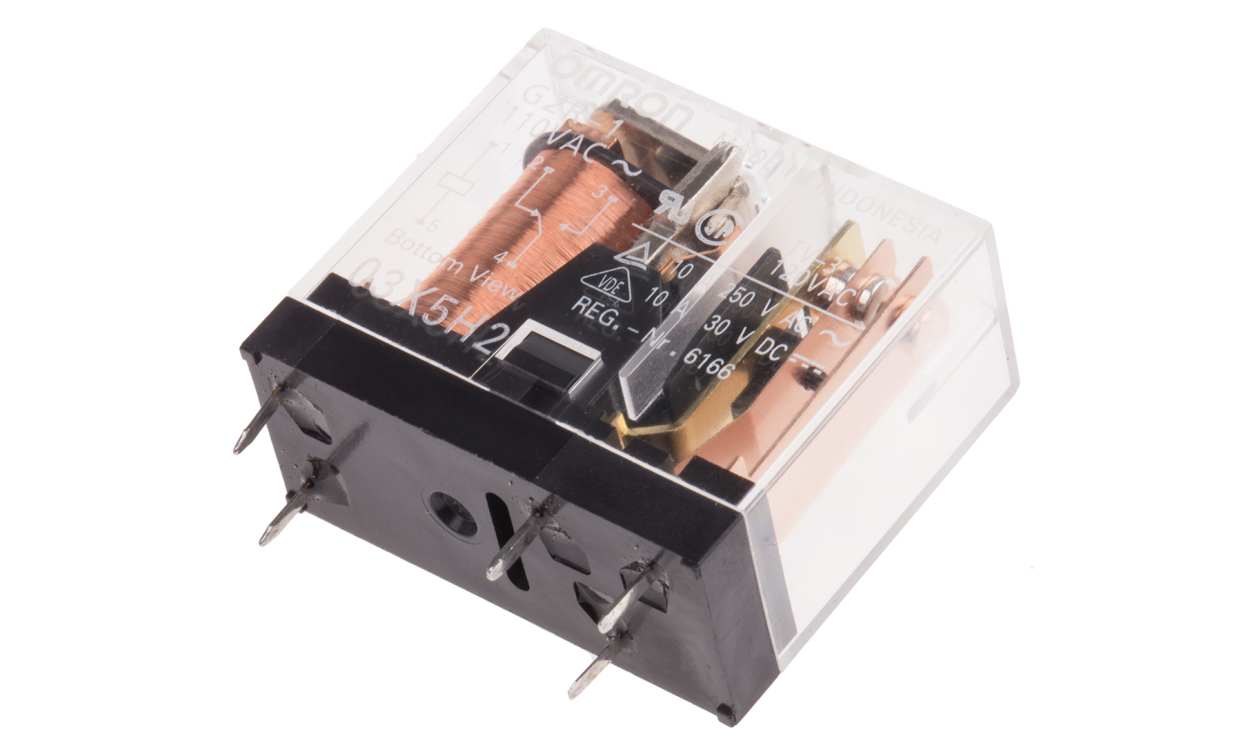

Name: OMRON G2R-1 AC110 | PCB Mount Power Relay | 110 V AC Coil, 10 A, SPDT
Brand: OMRON
SKU: G2R-1 AC110
Availability: OutOfStock

Part Number : G2R-1 AC110

This SPDT PCB-mount power relay from OMRON (part G2R-1 AC110) runs from a 110 V AC coil and is rated for 10 A switching current.

Contacts: SPDT, 1 pole, silver contacts
Switching: 10 A switching current, 2.5 kVA AC switching power, 300 W DC switching power
Size: length 29 mm, depth 13 mm, height 25.5 mm
Operating temperature: -40 °C to +70 °C
Mounting and type: PCB mount, through hole terminals, non-latching
Series: G2R-1

Availability: in stock

General purpose PCB power relay used in various domestic and commercial applications
8mm creepage/clearance
H25.5 x W13 x D29 mm

UL508; CSA22.2; EN 61810-1; SEV; SEMKO

Brand	Omron
Coil Voltage	110V ac
Contact Configuration	SPDT
Mounting Type	PCB Mount
Switching Current	10A
Number of Poles	1
Series	G2R-1
Latching	No
Terminal Type	Through Hole
Maximum Switching Current DC	10 A
Length	29mm
Minimum Operating Temperature	-40°C
Maximum Operating Temperature	+70°C
Contact Material	Silver
Height	25.5mm
Depth	13mm
Maximum Switching Power AC	2.5 kVA
Maximum Switching Power DC	300 W
Application	Power
