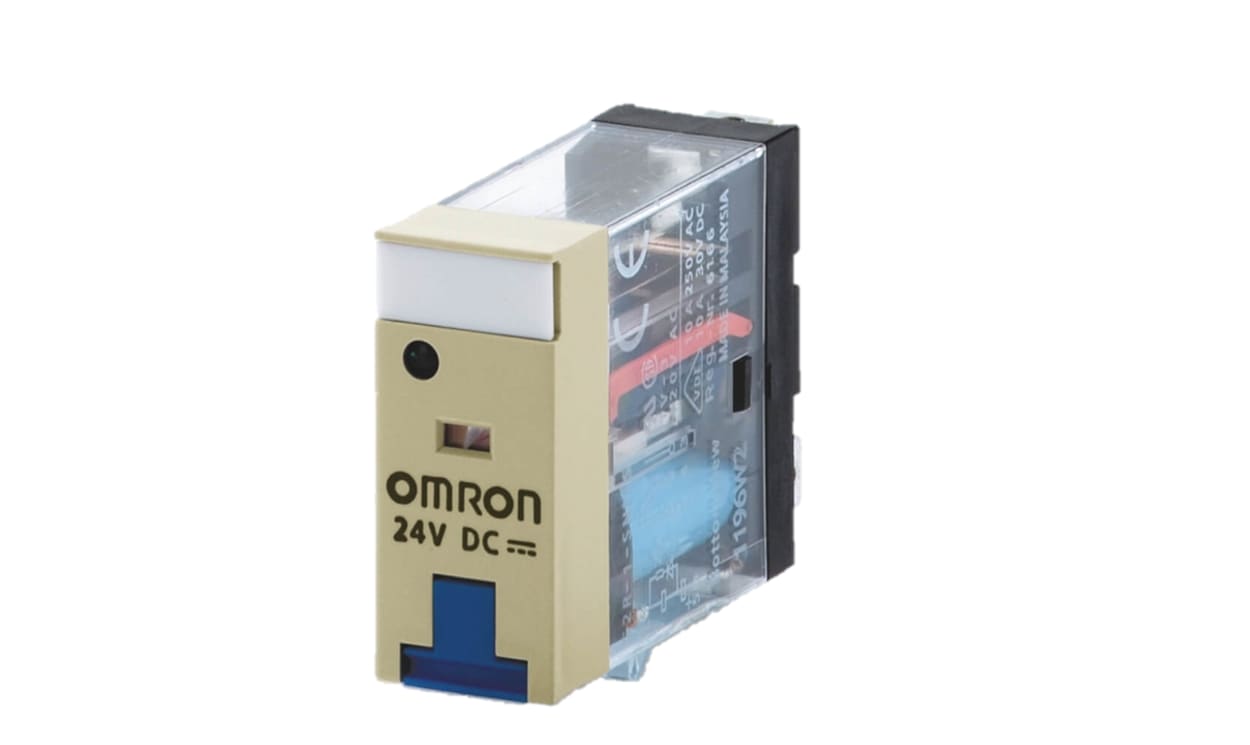

OMRON G2R-1-SD 24VDC (S) | Plug-In Relay | 24 V DC Coil, 10 A, SPDT

Name: OMRON G2R-1-SD 24VDC (S) | Plug-In Relay | 24 V DC Coil, 10 A, SPDT
Brand: OMRON
SKU: G2R-1-SD 24VDC (S)
Availability: OutOfStock

Part Number : G2R-1-SD 24VDC (S)

OMRON's G2R-1-SD 24VDC (S) plug-in relay pairs a 24 V DC coil with an SPDT contact arrangement rated for 10 A. The source description of the G2R-1-SD 24VDC (S) notes mechanical indicator and diode.

Coil: 24 V DC, 1.113 kΩ resistance, 530 mW power
Contacts: SPDT, 1 pole, silver alloy contacts
Switching: 10 A switching current, max. 440 V AC, max. 125 V DC
Size: length 29 mm, depth 13 mm, height 35.5 mm
Operating temperature: -40 °C to +70 °C
Standards: UL

Availability: in stock

Detailed Description
Specifications
Features
Downloads

Omron G2R Series Relay, 29mm Length, Plug-In Terminal - G2R-1-SD DC24(S)

This relay is intended for general-purpose applications in automation and electrical systems. Its compact plug-in design simplifies installation while ensuring effective operation. The Omron G2R relay functions at a 24V DC coil voltage, making it suitable for diverse electronic systems and industrial settings.

Features & Benefits

• Includes a built-in mechanical operation indicator
• Utilises AgSnIn contact material for enhanced durability
• Operates efficiently within a broad temperature range
• A coil power consumption of 0.53W for effective energy usage

Applications

• Suitable for automation control panels
• General heating and cooling systems
• Lighting control
• Security and alarm systems

What is the maximum switching voltage for this relay?

The maximum switching voltage for AC applications is 440V, while for DC it is 125V.

How does the relay perform in extreme temperatures?

It operates effectively between -40°C and +70°C, ensuring functionality in harsh environments.

Can it handle inductive loads reliably?

Yes, it can manage inductive loads up to 7.5A at 250VAC, providing versatility for various applications.

What type of diagnostic features does this relay offer?

A coil-disconnection self-diagnostic function is available in the AC type, assisting users in monitoring its operational status efficiently.

Brand	Omron
Coil Voltage	24V dc
Contact Configuration	SPDT
Mounting Type	Plug In
Switching Current	10A
Number of Poles	1
Latching	No
Series	G2R
Terminal Type	Plug In
Maximum Switching Voltage AC	440V ac
Maximum Switching Voltage DC	125V dc
Length	29mm
Coil Resistance	1.113 kO
Coil Power	530mW
Maximum Operating Temperature	+70°C
Minimum Operating Temperature	-40°C
Depth	13mm
Contact Material	Silver Alloy
Height	35.5mm
Standards Met	UL
