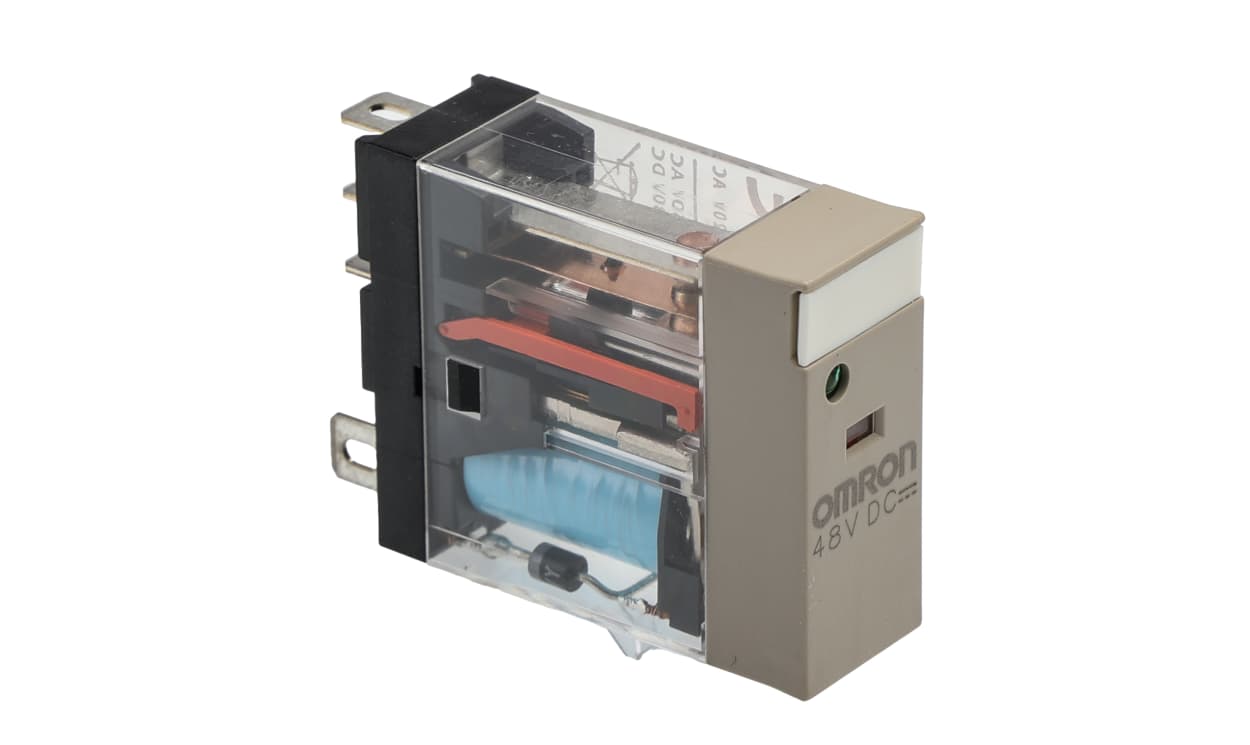

Name: Omron G2R-1-SND 48VDC (S), Plug In Non-Latching Relay, 48V dc Coil, 10A Switching Current, SPDT
Brand: OMRON
SKU: G2R-1-SND 48VDC (S)
Availability: OutOfStock

Omron G2R-1-SND 48VDC (S), Plug In Non-Latching Relay, 48V dc Coil, 10A Switching Current, SPDT

Client Protection

Dedicated Support

Client Protection

Dedicated Support

Omron G2R-1-SND 48VDC (S), Plug In Non-Latching Relay, 48V dc Coil, 10A Switching Current, SPDT

Part Number : G2R-1-SND 48VDC (S)

Availability: Sold out

Detailed Description
Specifications

Omron Series G2R Non-Latching Relay, 48V DC Coil Voltage, 10A Switching Current - G2R-1-SND DC48(S)

This non-latching relay is a reliable electromechanical device, designed for automation and electrical applications. Known for its SPDT configuration, it operates at a coil voltage of 48V DC. With dimensions of 13 x 29 x 40.5 mm and a maximum operating temperature of +70°C, this compact plug-in relay optimises space and enhances performance.

Features & Benefits

• Reduces wiring work by 60% when used with compatible sockets
• High switching power capability of 10A for efficient operation
• Lockable test button models available for secure testing
• Maximum switching voltage of 440V AC for robust requirement

Applications

• Used for switching circuits in control panels
• Ideal for automation systems requiring high reliability
• Effective in building management systems for HVAC controls
• Utilised in industrial machinery for process automation

What is the maximum switching power and current rating for this relay?

The relay can handle a maximum switching power of 2500VA for AC and 300W for DC, with a switching current of 10A, making it suitable for diverse applications.

How does the built-in mechanical operation indicator benefit users?

The mechanical operation indicator provides visual confirmation of the relay's status, enabling users to ensure proper functionality and facilitate troubleshooting when required.

Can you explain the importance of the relay's coil resistance?

The coil resistance of 4220 ohm is crucial as it determines the current required to energise the relay coil. This ensures efficient operation and prevents overheating during continuous use.

Brand	Omron
Coil Voltage	48V dc
Contact Configuration	SPDT
Mounting Type	Plug In
Switching Current	10A
Number of Poles	1
Series	G2R
Terminal Type	Plug In
Maximum Switching Voltage AC	440V
Maximum Switching Voltage DC	125V
Maximum Switching Current AC	10 A
Maximum Switching Current DC	10 A
Length	13mm
Coil Resistance	4220 Ω
Coil Power	530mW
Depth	29mm
Minimum Operating Temperature	-40°C
Standards Met	CE
Height	40.5mm
Contact Material	Silver Alloy
