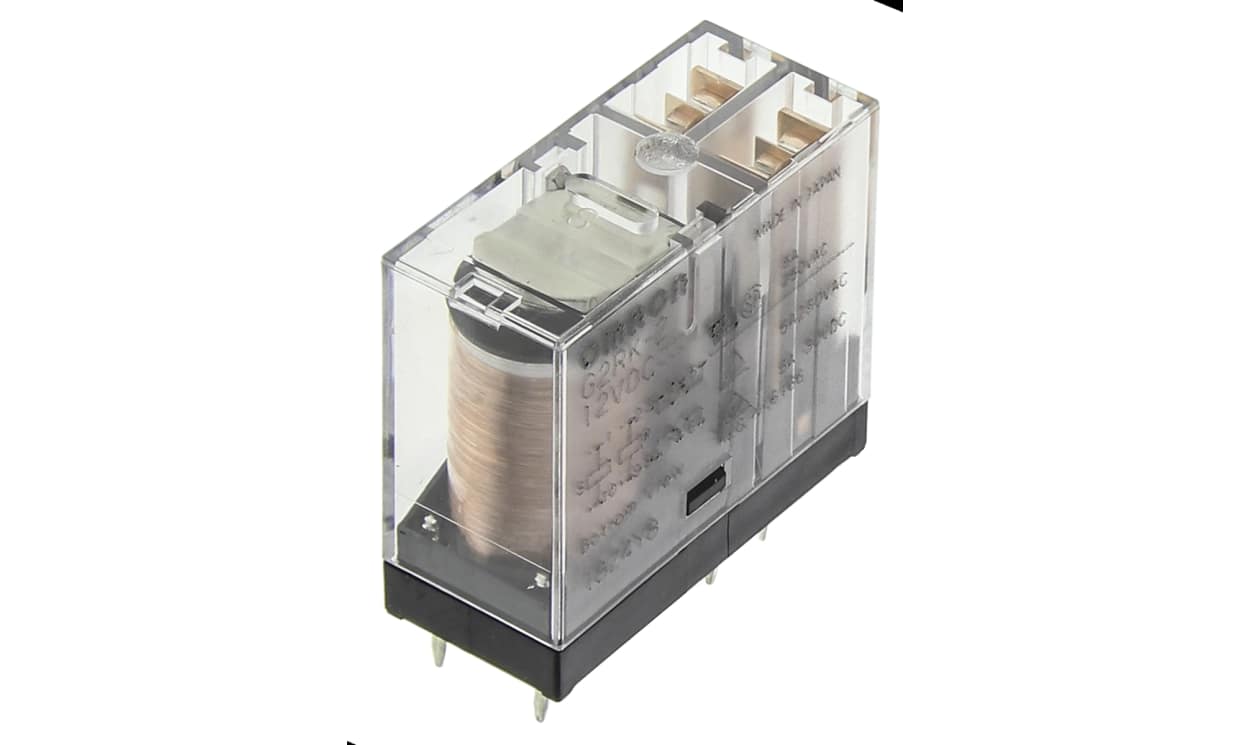

Omron G2RK-2 DC12, PCB Mount Latching Power Relay, 12V dc Coil, 5A Switching Current, DPDT

Name: Omron G2RK-2 DC12, PCB Mount Latching Power Relay, 12V dc Coil, 5A Switching Current, DPDT
Brand: OMRON
SKU: G2RK-2 DC12
Availability: OutOfStock

Part Number : G2RK-2 DC12

Availability: Sold out

Detailed Description
Specifications

Omron PCB Power Relay

The Omron PCB power relay has a single pole and switching current rating of 3A. This DC powered PCB power relay has double winding latching. It has a safety-oriented design with a dielectric strength of 5kV between coil and contacts. Its surge resistance is 10kV.

Features and Benefits

12VDC supply rated coil
Flux protected enclosure
Operating temperature ranging between -40°C and 70°C
DPDT contact configuration

Applications

Anti-condensation equipment
Car washing equipment
Coffee machines
Commercial cooking equipment
Driers and pumps
HVAC
Industrial cleaning equipment
Refrigeration

Certifications

CSA certified
UL approved
VDE certified

Brand	Omron
Coil Voltage	12V dc
Contact Configuration	DPDT
Mounting Type	PCB Mount
Switching Current	5A
Latching	Yes
Terminal Type	Through Hole
Maximum Switching Voltage AC	380V ac
Maximum Switching Voltage DC	125V dc
Length	29mm
Coil Resistance	170 (Set Coil) Ω, 240 (Reset Coil) Ω
Height	25.5mm
Maximum Operating Temperature	+70°C
Minimum Operating Temperature	-40°C
Contact Material	Silver
Depth	13mm
Maximum Switching Power AC	750VA
Maximum Switching Power DC	90 W
Dimensions	29 x 25.5 x 13mm
Application	Power
