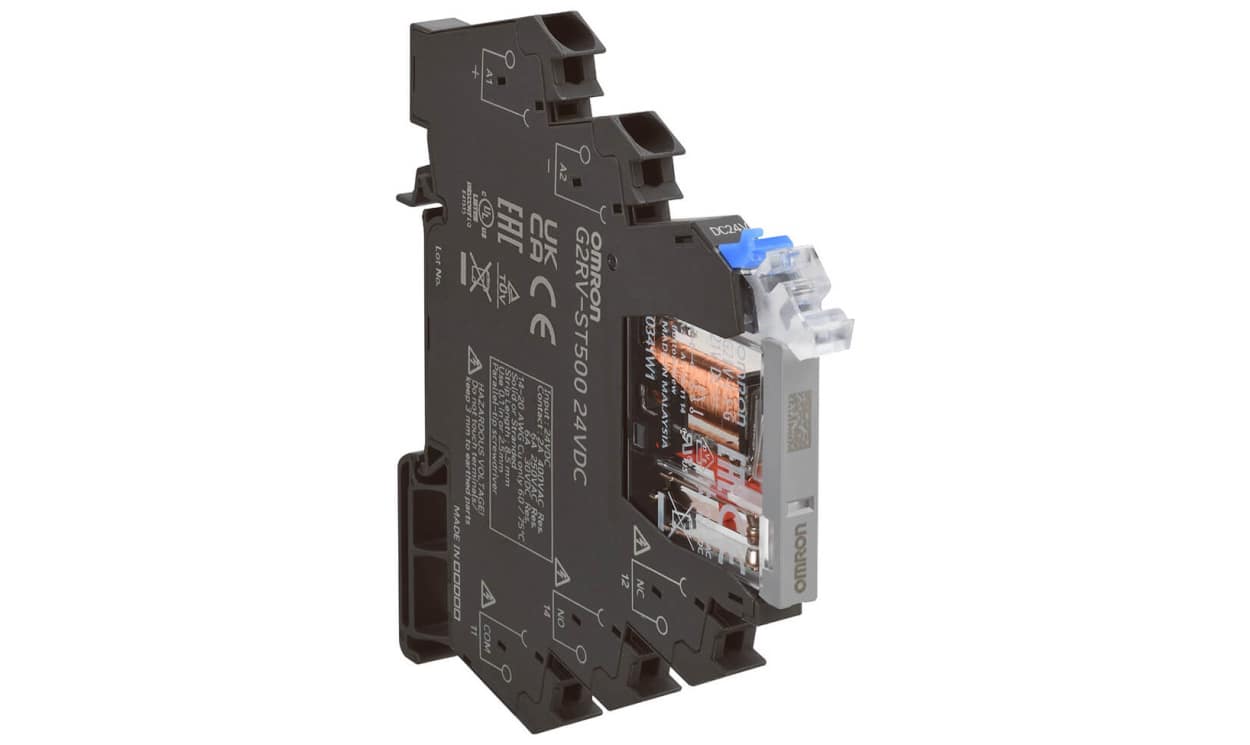

OMRON G2RV-ST500 24VDC | G2RV-ST Interface Relay | 24 V DC Coil, SPDT, 6 A, Push-In Terminals
This G2RV-ST series interface relay, OMRON G2RV-ST500 24VDC, has a 24 V DC coil, one SPDT pole and push-in terminals, and mounts on DIN rail. Rated for 6 A at 250 V AC, it lists a 440 V AC switching voltage and 13.5 mA input current.
- Coil voltage 24 V DC (input 21.6 to 26.4 V)
- Load rating 6 A at 250 V AC
- Switching voltage 440 V AC
- Push-in terminals, DIN rail mounting
- Ag alloy contacts
- Dimensions 88 x 90 x 6.2 mm
- Detailed Description
- Specifications
- Features
- Downloads
Omron G2RV-ST Series Electromechanical Interface Relay, 100 MΩ Control Resistance, 13.5 mA Input Current - G2RV-ST500 DC24
Features & Benefits
• SPDT configuration provides flexibility to switch between two different circuits
• Handles higher current loads of 6A without overheating
Applications
• Manages lighting circuits in buildings, warehouses, or outdoor areas
• Suitable for heating, ventilation, and air conditioning (HVAC) systems
What is the coil voltage of this relay?
Can I use this relay for motor control applications?
What load current can this relay handle?
| Brand | Omron |
| Series | G2RV-ST |
| Coil Voltage | 24V dc |
| Contact Configuration | SPDT |
| Mounting Type | DIN Rail |
| Number of Poles | 1 |
| Load Current Rating | 6A |
| Terminal Type | Push In |
| Depth | 6.2 mm (0.244 in) |
| Height | 90 mm (3.54 in) |
| Length | 88 mm (3.46 in) |
| Load Voltage Rating | 250V ac |
| Maximum Input Voltage | 26.4V |
| Minimum Input Voltage | 21.6V |
| Switching Voltage | 440V ac |
| Contact Material | Ag Alloy |
| Input Current | 13.5mA |
| Control Resistance | 100MΩ |
| Life | 70000 cycles |
| Turn On Time | 20ms |
İnce röle & siyah soket, 6 A, SPDT, Push-in Plus terminal, 24 VDC
