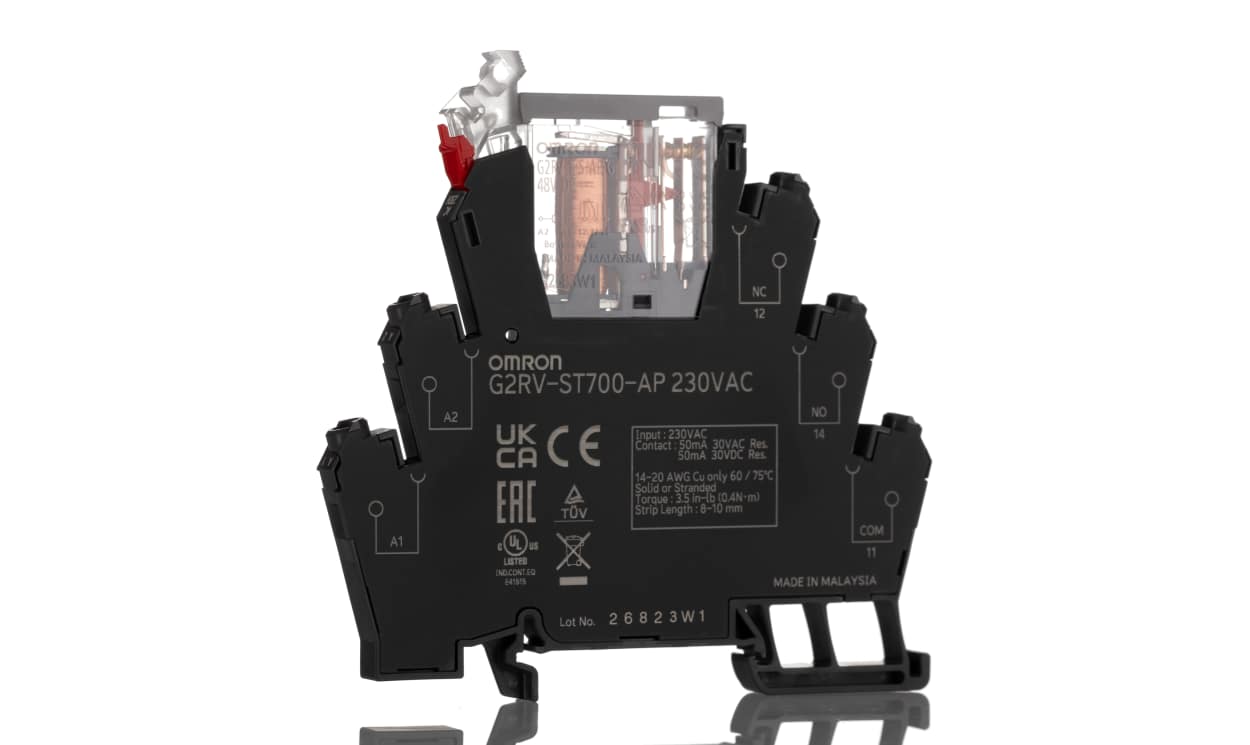

Omron G2RV-ST700-AP 230VAC, G2RV-ST Series Electromechanical Interface Relay, DIN Rail Mount, 230V ac Coil, SPDT, 1-Pole, 50mA Load - generaltechuae

OMRON G2RV-ST700-AP 230VAC | G2RV-ST Interface Relay | 230 V AC Coil, SPDT, 50 mA, Screw Terminals

Part Number : G2RV-ST700-AP 230VAC

OMRON's G2RV-ST700-AP 230VAC combines a 230 V AC coil with an SPDT, 1-pole contact in a DIN rail mounted G2RV-ST interface relay using screw terminals. Load current is 50 mA at 30 V; the listed switching voltage is 400 V AC and input current is 6.8 mA.

  • Coil voltage 230 V AC (input 184 to 253 V)
  • Load rating 50 mA at 30 V
  • Switching voltage 400 V AC
  • DIN rail mount with screw terminals
  • Contact material: Ag alloy
  • Operating temperature -40 to +55 °C
Availability: in stock
For pricing, please contact our experts.
