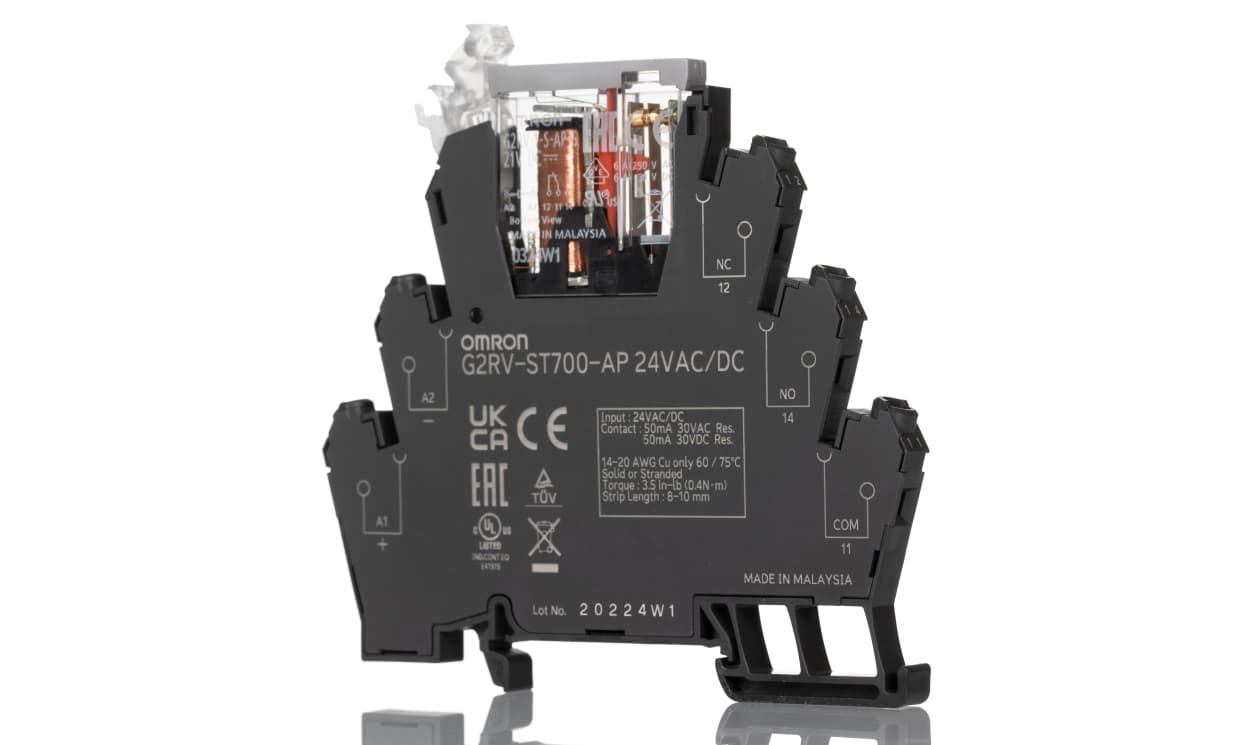

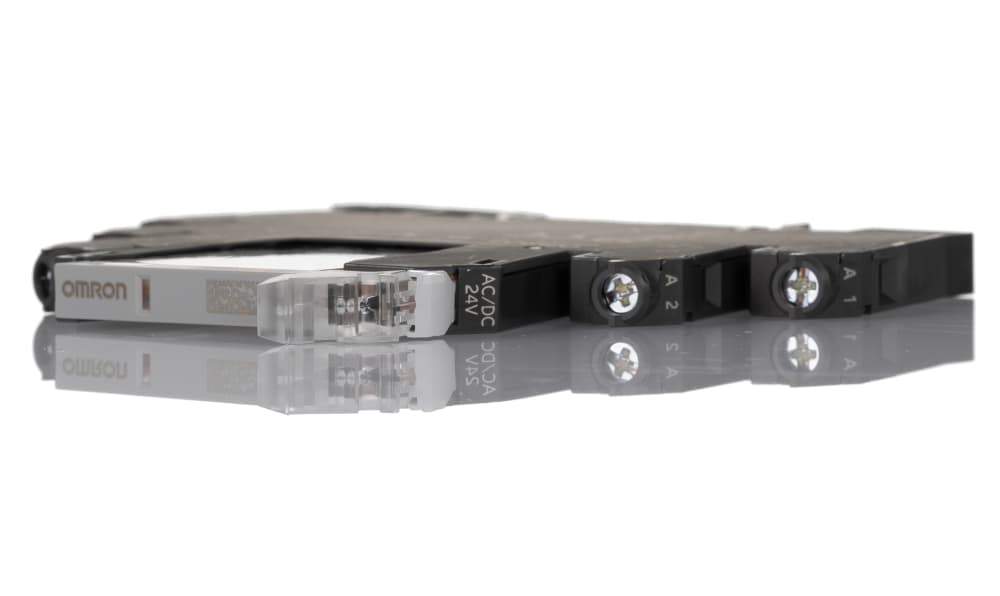

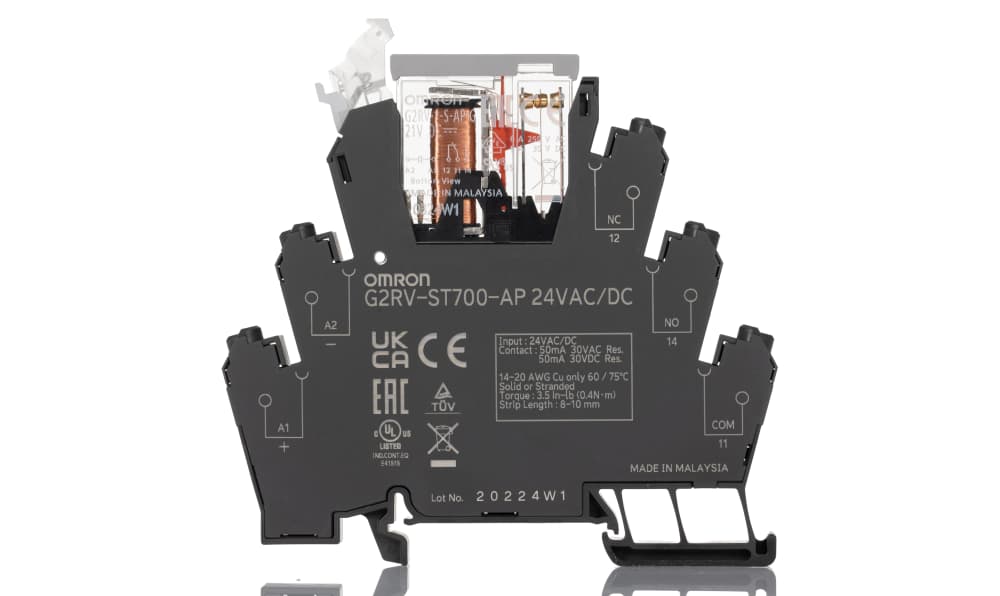

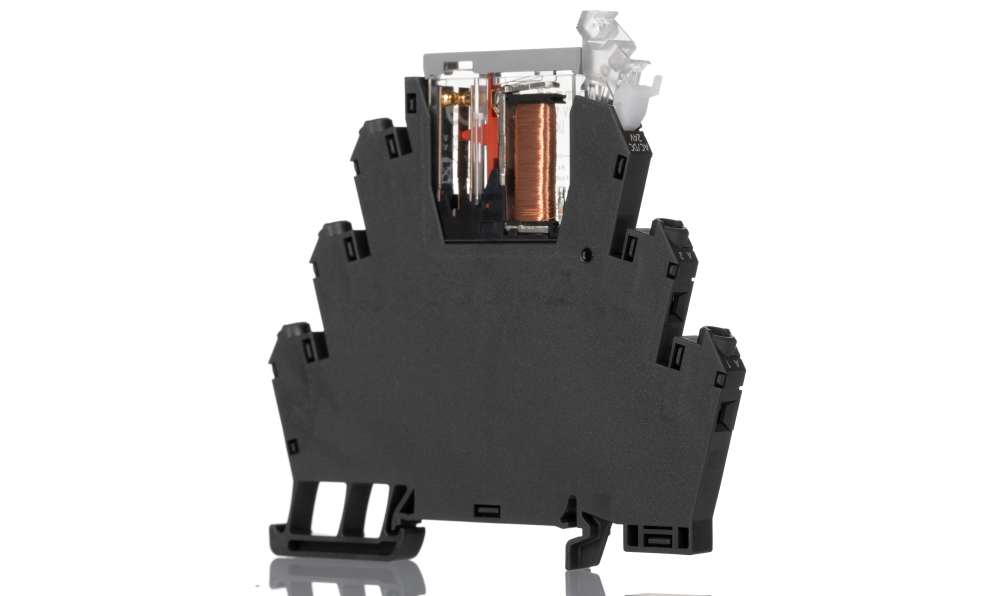

Name: Omron G2RV-ST700-AP 24VAC/DC, G2RV-ST Series Electromechanical Interface Relay, DIN Rail Mount, 24V ac/dc Coil, SPDT, 1-Pole, 50mA Load
Brand: OMRON
SKU: G2RV-ST700-AP 24VAC/DC
Availability: OutOfStock

Omron G2RV-ST700-AP 24VAC/DC, G2RV-ST Series Electromechanical Interface Relay, DIN Rail Mount, 24V ac/dc Coil, SPDT, 1-Pole, 50mA Load

Client Protection

Dedicated Support

Client Protection

Dedicated Support

Omron G2RV-ST700-AP 24VAC/DC, G2RV-ST Series Electromechanical Interface Relay, DIN Rail Mount, 24V ac/dc Coil, SPDT, 1-Pole, 50mA Load

Part Number : G2RV-ST700-AP 24VAC/DC

Availability: Sold out

Detailed Description
Specifications

Omron G2RV-ST Series Electromechanical Interface Relay, 100 MΩ Control Resistance, 12.6 mA Input Current - G2RV-ST700-AP AC/DC24

This Omron product is a DIN rail-mounted electromechanical interface relay. It features a 24V DC coil, SPDT configuration, and a load current of 50A.

Features & Benefits

• Easy installation and organization of multiple relays on a standard DIN rail
• SPDT configuration provides flexibility to switch between two different circuits
• Handles higher current loads of 50A without overheating

Applications

• Reliable control of motor-driven equipment in industrial automation and manufacturing processes
• Manages lighting circuits in buildings, warehouses, or outdoor areas
• Suitable for heating, ventilation, and air conditioning (HVAC) systems

What is the coil voltage of this relay?

The coil voltage is 24V DC.

Can I use this relay for motor control applications?

Yes, it’s suitable for motor control tasks such as switching pumps, fans, or conveyor belts.

What load current can this relay handle?

It can handle a load current of 50A.

Brand	Omron
Coil Voltage	24V ac/dc
Contact Configuration	SPDT
Mounting Type	DIN Rail
Series	G2RV-ST
Number of Poles	1
Load Current Rating	50mA
Maximum Input Voltage	26.4V
Load Voltage Rating	30V
Minimum Input Voltage	21.6V
Switching Voltage	400V ac
Terminal Type	Screw
Depth	6.2mm
Height	90mm
Length	88mm
Contact Material	Ag Alloy
Input Current	12.6mA
Life	5000000 cycles
Control Resistance	100MΩ
Turn On Time	20ms
