Omron G3NA-220B-UTU 5-24VDC, G3NA Series Solid State Relay, 20 A Load, Surface Mount, 240 V ac Load

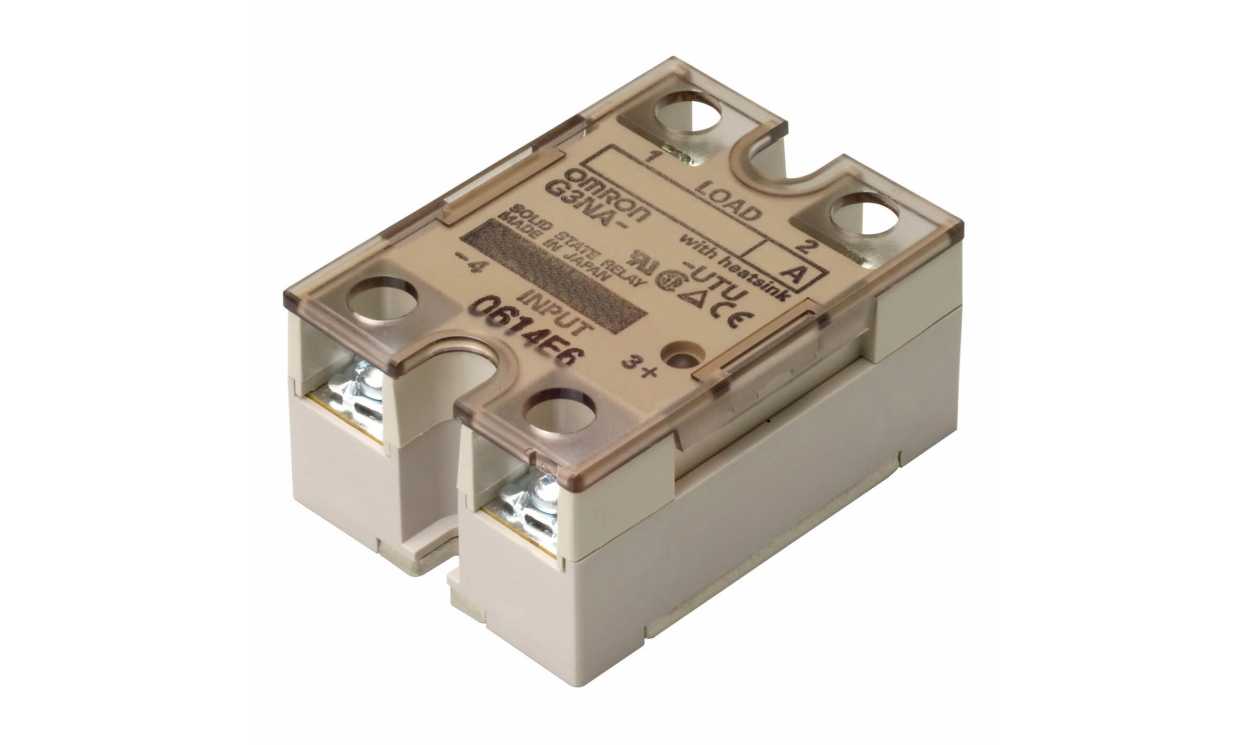

Name: Omron G3NA-220B-UTU 5-24VDC, G3NA Series Solid State Relay, 20 A Load, Surface Mount, 240 V ac Load
Brand: OMRON
SKU: G3NA-220B-UTU 5-24VDC
Availability: OutOfStock

Part Number : G3NA-220B-UTU 5-24VDC

Solid state relay, surface mounting, zero crossing, 1-pole, 20 A, 24 to 240 VAC

Availability: Sold out

Detailed Description
Specifications
Features

Omron G3NA Series Solid State Relay, 20A Maximum Load Current, 240V Maximum Load Voltage - G3NA-220B-UTU DC5-24

This solid state relay is designed for automation and control applications, providing effective switching capabilities in a compact package. With dimensions of 27 x 43 x 58mm, this relay is ideal for surface mounting in a variety of settings. It can handle a maximum load current of 20A and operates efficiently within a voltage range of 24 to 240V AC.

Features & Benefits

• Utilises zero crossing technology for reduced electrical noise
• Capable of switching high loads up to 20A
• Features a Triac output device for enhanced performance
• Designed for surface mounting for convenient installation
• Operates in extreme temperatures from -30°C to +80°C

Applications

• Suitable for controlling electric motors in industrial settings
• Used for switching heating elements and lighting controls
• Ideal for automation systems requiring reliable switching
• Integrates seamlessly into electronic control circuits

What is the significance of zero crossing technology in this relay?

Zero crossing technology helps to reduce electrical noise and wear on components by switching the load at the point when voltage is at zero, enhancing the longevity and performance of the relay.

What are the operational temperature limits for this relay?

The relay operates effectively in temperatures ranging from -30°C to +80°C, making it suitable for diverse environments and applications.

How does this relay support heavy electrical loads?

It is specifically designed to handle a maximum load current of 20A, ensuring it can manage substantial electrical demands safely and efficiently.

What types of terminals are used in this relay?

The relay features screw terminal type connections, which facilitate secure and stable electrical connections during installation.

Can this relay be used in automation systems?

Yes, it is tailored for use in automation settings, providing reliable switching and control for various industrial applications.

Brand	Omron
Maximum Load Current	20 A
Mounting Type	Surface Mount
Maximum Load Voltage	240 V ac
Minimum Load Voltage	24 V ac
Switching Type	Zero Crossing
Range	G3NA
Minimum Load Current	100 mA
Contact Configuration	SPST-NO
Terminal Type	Screw
Output Device	Triac
Relay Type	Solid State Relay
Series	G3NA
Dimensions	27 x 43 x 58mm
Maximum Operating Temperature	+80°C
Operating Temperature Range	-30 → +80°C
Minimum Operating Temperature	-30°C
Height	58mm
Standards Met	CSA, UL
Depth	27mm

Solid state relay, surface mounting, zero crossing, 1-pole, 20 A, 24 to 240 VAC
