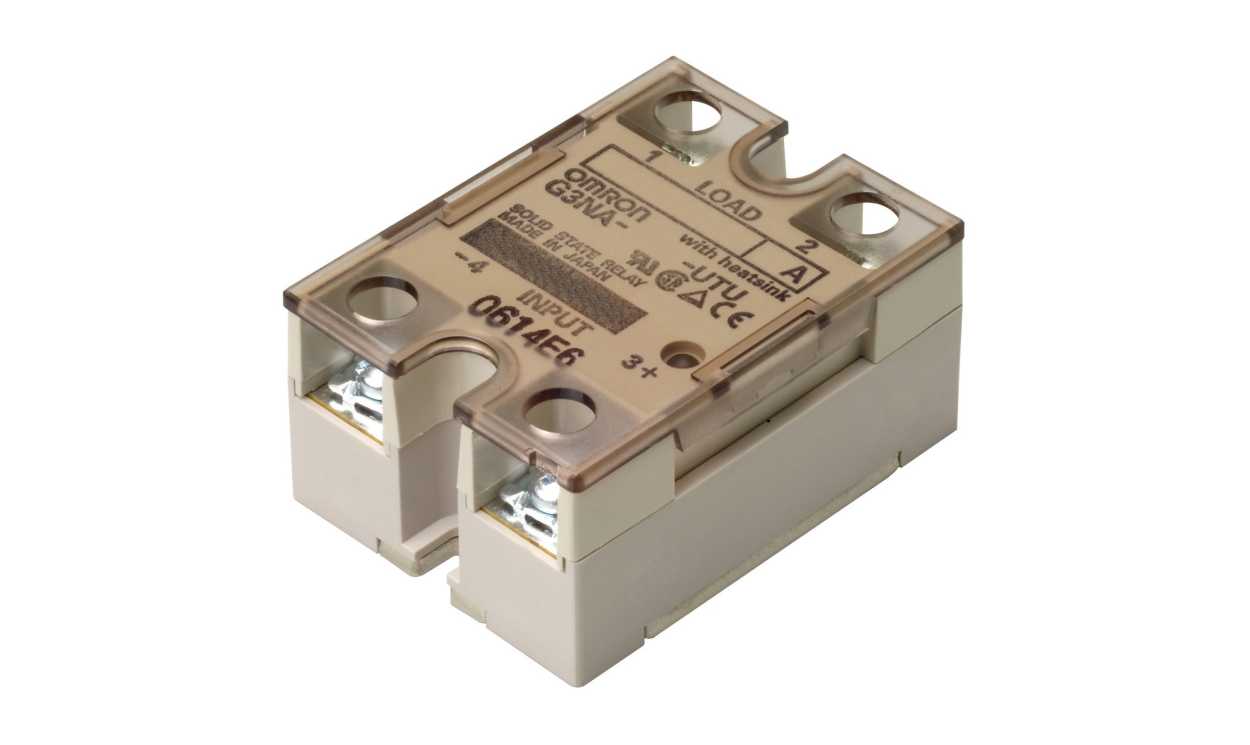

Name: Omron G3NA-425B-UTU-2 DC5-24, G3NA Series Solid State Relay, 25 A Load, Screw Fitting, 480 V Load
Brand: OMRON
SKU: G3NA-425B-UTU-2 DC5-24
Availability: OutOfStock

Client Protection

Dedicated Support

Client Protection

Dedicated Support

Omron G3NA-425B-UTU-2 DC5-24, G3NA Series Solid State Relay, 25 A Load, Screw Fitting, 480 V Load

Part Number : G3NA-425B-UTU-2 DC5-24

Availability: Sold out

Detailed Description
Specifications

Omron G3NA Series Solid State Relay, 25A Maximum Load Current, Screw Terminal - G3NA-425B-UTU-2 DC5-24

This solid state relay is essential for controlling electrical loads in various automation applications. Manufactured by Omron, it provides effective switching capabilities and durability, making it suitable for professionals in the electrical and mechanical fields. Equipped with features that meet contemporary needs, it is crucial for ensuring performance in challenging environments.

Features & Benefits

• Supports a maximum load current of 25A
• Operates within a voltage range of 200V to 480V
• Utilises zero cross switching to reduce electrical noise
• Designed for screw fitting for straightforward installation
• Functions effectively in temperatures from -30 to +80°C
• Features off state leakage current of just 20mA

Applications

• Suitable for industrial automation systems requiring precise control
• Ideal for managing AC loads in manufacturing equipment
• Used in power distribution for switching large loads

What type of installation is required for this product?

A screw fitting installation is necessary for secure mounting in control panels or other assemblies.

How does zero cross switching enhance performance?

This technique minimises electromagnetic interference during on/off transitions, leading to more stable operation and reduced wear on the relay.

Is the relay compatible with other automation components?

Yes, it can integrate with various automation systems and components, as long as they comply with the specified voltage and current ratings.

Brand	Omron
Maximum Load Current	25 A
Mounting Type	Screw Fitting
Maximum Load Voltage	480 V
Minimum Load Voltage	200 V
Switching Type	Zero Cross
Range	G3NA
Number of Poles	1
Terminal Type	Screw
Relay Type	Solid State Relay
Load Voltage Range	200 → 480V
Series	G3NA
Depth	30mm
Standards Met	CE, CSA
Height	58mm
Maximum Operating Temperature	+80°C
Operating Temperature Range	-30 → +80°C
Length	43mm
Off State Leakage Current	20 mA rms
Minimum Operating Temperature	-30°C
