Name: Omron G3NE-205T-US 24VDC, G3NE Series Solid State Relay, 5 A Load, Panel Mount, 264 V ac Load, 28.8 V dc Control
Brand: OMRON
SKU: G3NE-205T-US 24VDC
Availability: OutOfStock

Client Protection

Dedicated Support

Client Protection

Dedicated Support

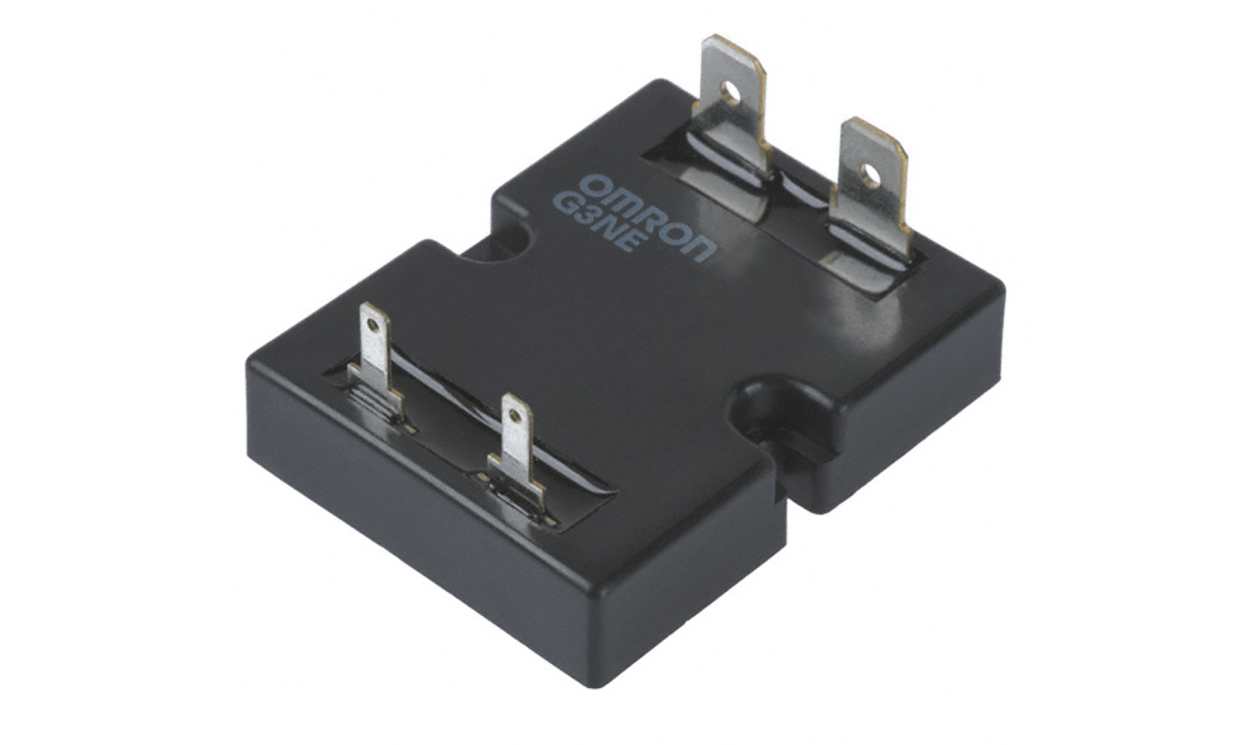

Omron G3NE-205T-US 24VDC, G3NE Series Solid State Relay, 5 A Load, Panel Mount, 264 V ac Load, 28.8 V dc Control

Part Number : G3NE-205T-US 24VDC

Availability: Sold out

Detailed Description
Specifications

G3NE Series

The G3NE Series of Omron Compact Solid State Relays, 5 to 20A

Wide array of features:-

Dedicated, high grade compact aluminium PCB and power elements.
Built-in varistor effectively absorbs external surges.

G3NE-205T-US-DC24 SSR – Solid State Relay.

Compact low cost series of switching solid state relays with a wide range of load voltages 75 to 264 V ac. Aluminium PCB and power elements. Built-in varistor absorbing external surges. Quick connect 110 input terminals, 250 output connections.

Features and Benefits of G3NE-205T-US-DC24 Compact SSR – Solid State Relay.

• Phototriac
• Zero cross function
• Rated output load 5 A at 100 to 240 V ac.
• Rated input voltage 24 V dc. (dependant on the ambient temperature).

SSR – Solid state relay Input Rating at 25°C Ambient.

• Operating voltage 19.2 to 28.8 V dc.
• Must operate voltage 19.2 V dc max.
• Must release voltage 1 V dc min.
• Input impedance with Zero cross function 1.6 kΩ ±20%

SSR – Solid state relay Output.

Rated load voltage 100 to 240 V ac.
Load voltage range 75 to 264 V ac.
Load current with heat sink 0.1 to 5 A at 40°C.
Load current without heat sink 0.1 to 5 A at 40°C.
Inrush current 60 A (60 Hz, 1 cycle).

(relay load current is dependent on the ambient temperature)

Additional Features G3NE-205T-US-DC24 Compact SSR – Solid State Relay.

• Operate and release time of load power source cycle + 1 ms max.
• Output ON voltage drop 1.6 V (RMS) max.
• Leakage current 2 mA max at 100 V ac, 5 mA max at 200 V ac.
• Vibration resistance – destruction 10 to 55 to 10 Hz, 0.75 mm single amplitude.
• Shock resistance – destruction 1000 m/s².
• Operating temperature -30°C to 80°C.
• SSR – Solid state relay Weight 37 g.

Mounting Plate for the G3NE Series SSR – Solid State Relay.

• Part number R99-12, Stock number 8278478. One-touch mounting plate.

What does Zero Cross Function mean in SSR in Solid State Relays?

Zero cross function will allow the relay to turn ON when the AC load power supply approaches 0 V suppressing any noise generated with a sudden load current increase. Zero cross function is effective across 2 types of noise, noise on power lines and noise emitted into open space.

Standards

UL 508, TUV, VDE, EN 60950.

Brand	Omron
Maximum Load Current	5 A
Mounting Type	Panel Mount
Maximum Load Voltage	264 V ac
Minimum Load Voltage	75 V ac
Maximum Control Voltage	28.8 V dc
Minimum Control Voltage	19.2 V dc
Switching Type	Zero Cross
Control Voltage Range	19.2 → 28.8 V dc
Minimum Load Current	0.1 A
Contact Configuration	SPST
Terminal Type	Quick Connect
Output Device	Phototriac
Load Voltage Range	75 → 264V ac
Maximum Turn On Time	1 (+1/2 cycle) ms
Series	G3NE
Dimensions	47.5 x 37.5 x 11.5mm
Maximum Operating Temperature	+80°C
Off State Leakage Current	5 mA
Length	47.5mm

Omron G3NE-205T-US 24VDC, G3NE Series Solid State Relay, 5 A Load, Panel Mount, 264 V ac Load, 28.8 V dc Control
