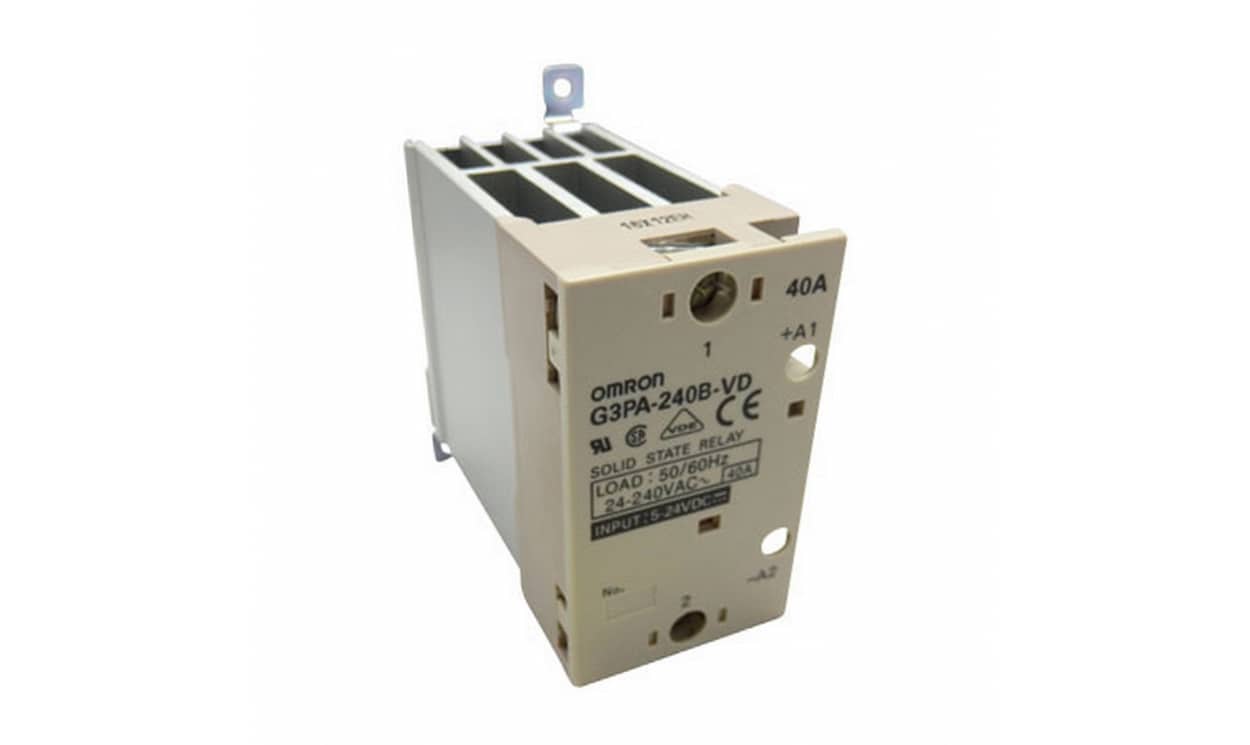

Name: Omron G3PA-240B-VD 5-24VDC, G3PA Series Solid State Relay, 40 A Load, DIN Rail Mount, 264 V Load
Brand: OMRON
SKU: G3PA-240B-VD 5-24VDC
Availability: OutOfStock

Client Protection

Dedicated Support

Client Protection

Dedicated Support

Omron G3PA-240B-VD 5-24VDC, G3PA Series Solid State Relay, 40 A Load, DIN Rail Mount, 264 V Load

Part Number : G3PA-240B-VD 5-24VDC

Availability: Sold out

Detailed Description
Specifications

Omron G3PA Series Solid State Relay, 40A Maximum Load Current, 19 to 264V AC Load Voltage Range - G3PA-240B-VD DC5-24

This solid state relay is engineered for the effective control of high voltage applications. With a maximum load current of 40A and the capability to handle voltages up to 264V, it is suitable for various industrial automation tasks. The relay supports a compact DIN rail mounting style with screw terminals, ensuring secure installation. Its dimensions of 100x47x100mm allow for versatility in standard control panels.

Features & Benefits

• Operates within a voltage range of 19 to 264V
• Quick load switching with a turn-on time of 1/2 cycle + 1ms
• Maximum operating temperature of +80°C
• Robust dielectric strength of 4000VAC for enhanced safety
• Compact design optimises space in applications
• Replaceable cartridges extend operational life

Applications

• Suitable for automation systems that require low response times
• Ideal for managing power distribution in electrical panels
• Effective in environments with fluctuating temperatures
• Utilised in machinery to ensure smooth operation

Can it handle three-phase loads?

Yes, it is designed for three-phase loads.

Will it ensure safe operation under high temperatures?

It operates safely at temperatures up to +80°C.

Is it easy to replace the power element?

Yes, it has replaceable power element cartridges.

Can I mount this device vertically?

Yes, vertical mounting is feasible for optimal operation.

Brand	Omron
Maximum Load Current	40 A
Mounting Type	DIN Rail
Maximum Load Voltage	264 V
Minimum Load Voltage	19 V
Switching Type	Zero Cross
Minimum Load Current	0.5 A
Number of Poles	1
Terminal Type	Screw
Relay Type	Solid State Relay
Load Voltage Range	19 → 264V ac
Maximum Turn On Time	1/2 cycle + 1 ms
Series	G3PA
Dimensions	100 x 47 x 100mm
Depth	100mm
Height	100mm
Minimum Operating Temperature	-30°C
Operating Temperature Range	-30 → +80°C
Maximum Operating Temperature	+80°C
