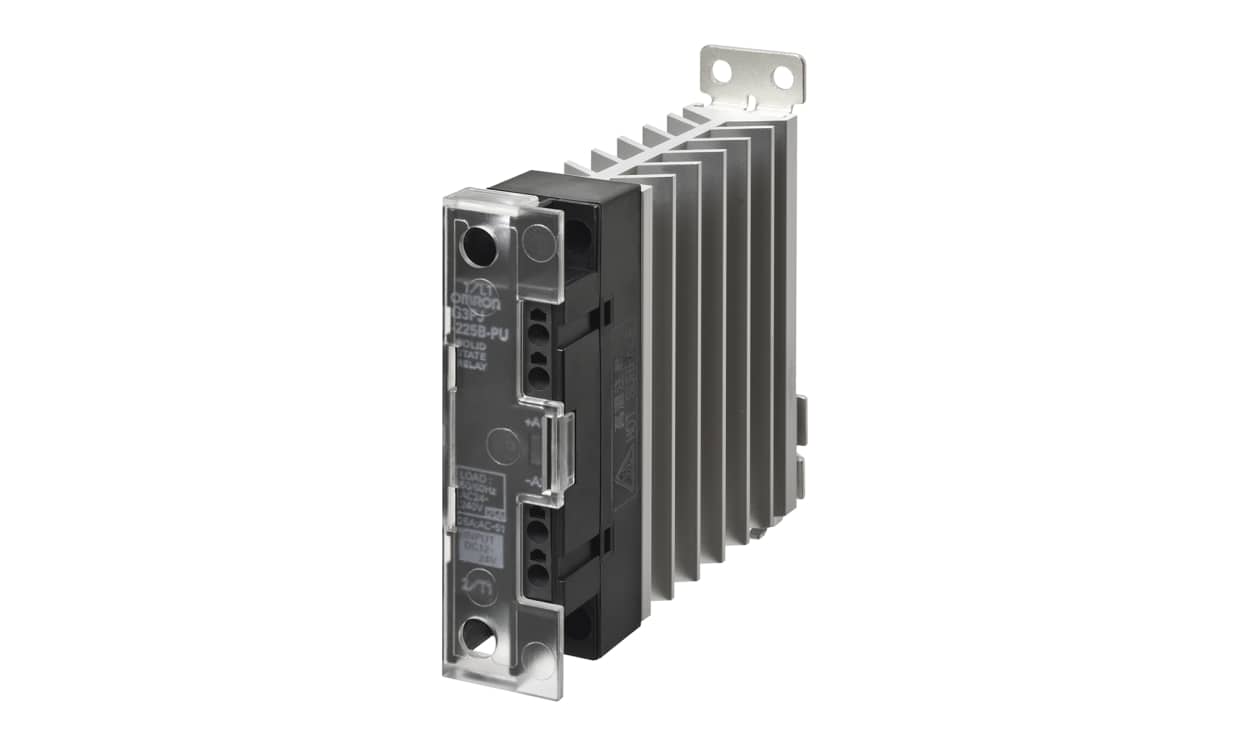

Omron G3PJ-515B-PU DC12-24, G3PJ Series Solid State Relay, 15 A Load, DIN Rail Mount, 528 V ac Load, 24V dc Control

Part Number : G3PJ-515B-PU DC12-24

Availability: Sold out

Detailed Description
Specifications

Omron G3PJ Series SSR

G3PJ solid state relays are part of the Value Design for Panel range from Omron that takes control panel design and manufacturing to a new level. G3PJ Series single phase solid state relays with heat sinks are suitable for a wide range of applications.

SCCR of 10kA
Surge pass protection
Both push-in and screw terminal input terminals available.
DIN Rail mount
RoHS compliant

G3PJ-515B-PU DC12-24 SSR – Slim Design, Single-Phase Low Heat Generation Solid State Relay.

Make the most of your control panels and increase their value with the single-phase solid state relay. Low heat generation means you can carry 25 A, even when close mounting. The slim design and easy wiring enables you to downsize your control panels and cooling equipment. RoHS compliant.

Features and Benefits of G3PJ-515B-PU DC12-24 Slim SSR –Solid State Relay.

• Push-In terminals, input.
• Screw terminals , output
• Single-phase relay.
• Phototriac coupler.
• Orange LED indicator.
• Rated output voltage 12 to 24 V dc.
• Zero cross function.
• Rated load voltage 100 to 480 V ac.
• Slim design.
• Easy wiring.
• Can be close mounted.
• Low heat generation.

Rated Load Current of the SSR - Relay at 40°C Ambient Temperature (dependant on ambient temperature).

• Close mounting for three SSR – Solid state relays – 15 A
• Separate mounting 23 A.

SSR – Solid State Relay Input Rating at 25°C.

• Operating voltage range 9.6 to 30 V dc.
• Current 7 mA max.
• Must operate voltage 9.6 V dc max.
• Must release voltage 1 V dc min.

SSR – Solid State Relay Output.

• Rated load voltage 100 to 480 V ac, 50 / 60 Hz.
• Load voltage range 75 to 528 V ac, 50 / 60 Hz.
• Inrush resistance 150 A, 60 Hz, 1 cycle.
• 1350A²S.

Additional Features G3PJ-515B-PU DC12-24 Slim, SSR – Solid State Relay.

• Operate and release time of load power source cycle + 1 ms max.
• Output ON voltage drop 1.8 V (RMS) max.
• Leakage current 20 mA max at 240 V ac.
• Vibration resistance 10 to 55 to 10 Hz, 0.35 single amplitude, 0.7 mm double amplitude, DIN rail mounted.
• Shock resistance, destruction, 300 m/s², DIN rail mounted.
• Operating temperature, ambient, -30°C to 80°C, no icing or condensation.
• Relay weight 240 g.
• SCCR (UL508) 10 kA.

What does Zero Cross Function mean in SSR in Solid State Relays?

Zero cross function will allow the relay to turn ON when the AC load power supply approaches 0 V suppressing any noise generated with a sudden load current increase. Zero cross function is effective across 2 types of noise, noise on power lines and noise emitted into open space.

Standards

cULus, TUV, EN 60947-4-3.

Zero Voltage Relays

Note

Temperature can affect current rating; please consult the data sheet for potential derating.

Brand	Omron
Maximum Load Current	15 A
Mounting Type	DIN Rail
Maximum Load Voltage	528 V ac
Minimum Load Voltage	75 V ac
Maximum Control Voltage	24V dc
Minimum Control Voltage	12 V dc
Switching Type	Zero Cross
Control Voltage Range	12 → 24 V dc
Minimum Load Current	15 A
Number of Poles	1
Contact Configuration	SP
Terminal Type	Push In
Output Device	Triac
Relay Type	Single Phase
Series	G3PJ
Maximum Turn On Time	1/2 cycle + 1 ms
Load Voltage Range	75 → 528V ac
Dimensions	22.5 x 100 x 100mm
Operating Temperature Range	-30 → +80°C
