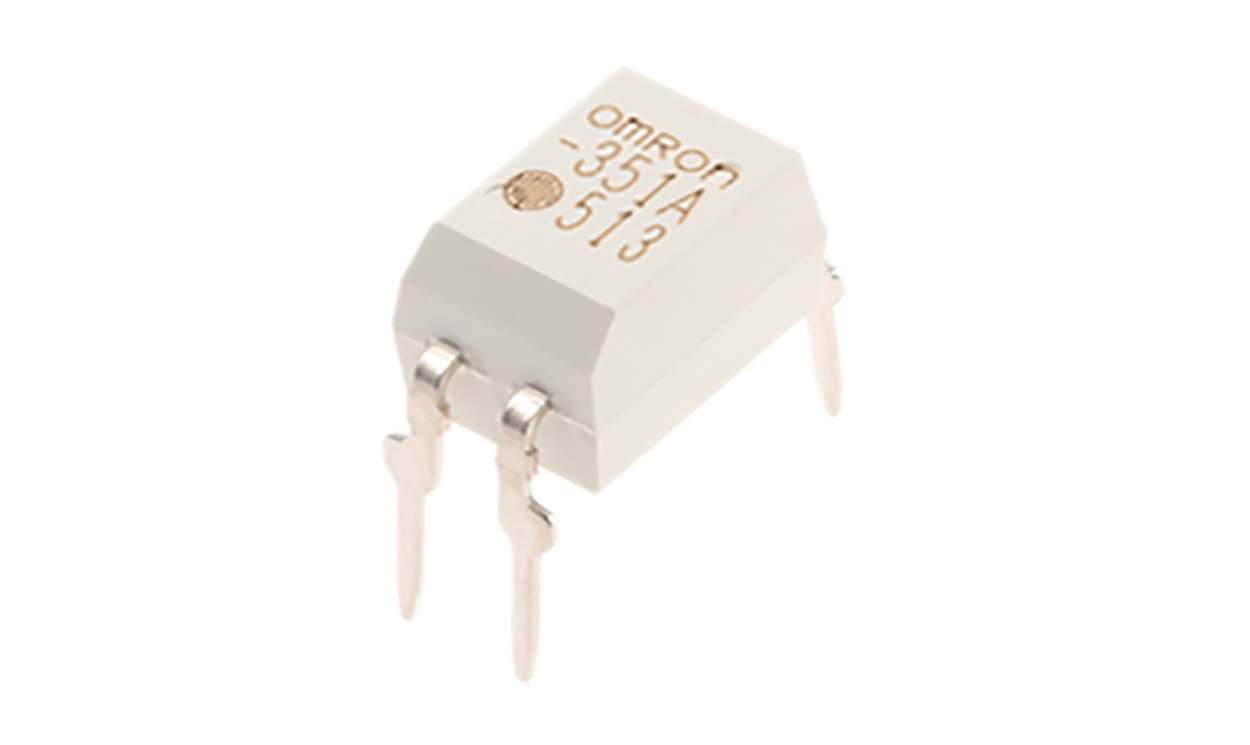

OMRON G3VM-351A | MOSFET Solid State Relay | 0.12 A, 350 V AC, PCB
With a 0.12 A maximum load current and 350 V AC load voltage rating, the OMRON G3VM-351A G3VM series MOSFET relay is built for PCB mounting. Key characteristics are a maximum control voltage of 1.3 V, an SPST contact form and a PDIP package.
- Maximum load current: 0.12 A
- Maximum load voltage: 350 V AC
- Maximum control voltage: 1.3 V
- Contact configuration: SPST
- Output device: MOSFET
- Dimensions: 4.58 x 6.4 x 3.65 mm
- Detailed Description
- Specifications
- Downloads
G3VM MOSFET SSR
Combines advantages of mechanical and solid state technology
Low on-resistance and output capacitance
Long life
Wide range of models available
Ideal for telecom solutions, including line seizing, switching, hook switching, line transformer control and other phone functions
G3VM-351A MOS FET General Purpose Series SSR – Solid State Relay.
Features and Benefits G3VM-351A General Purpose SSR – Solid Sate Relay.
• DIP 4 – (dual in line package)
• Contact form SPST-NO (1a) (normally open).
• Through hole relay.
• PCB Terminals.
• 4 Relay terminals.
• Load voltage 350 V ac.
• Load current 120 (240) mA max.
• Maximum resistance with output ON 35 Ohm.
• Current leakage when relay is open 1000 nA max.
• Capacitance between terminals 30 pF.
• SSR -Turn ON time 1 ms max.
• SSR -Turn OFF time 1 ms max.
• Dielectric strength between I/O 2500 Vrms.
• RoHS Compliant.
onal Features G3VM-351A General Purpose SSR – Solid State Relay.
• Small leakage current.
• SSR has excellent shock resistance.
• High insulation.
• Silent operation.
• High-speed switching.
• Control the micro analogue signal.
• Photo-LED input.
• Status output.
• Compact
Other Application Examples.
• Customized power supply.
• Factory automation.
• PLC.
• Thermostat timers.
• Test and measurement equipment.
• Security equipment.
• Amusement equipment.
| Brand | Omron |
| Series | G3VM |
| Maximum Load Voltage | 350 V ac |
| Maximum Load Current | 0.12 A |
| Mounting Type | PCB Mount |
| Minimum Load Voltage | 0 V ac |
| Contact Configuration | SPST |
| Output Device | MOSFET |
| Minimum Load Current | 120 mA |
| Switching Type | DC |
| Terminal Type | PCB Pin |
| Load Voltage Range | 0 → 350V ac |
| Dimensions | 4.58 x 6.4 x 3.65 mm (0.180×0.252×0.144 in) |
| Maximum Control Voltage | 1.3 V |
| Control Voltage Range | Maximum of 1.3 V |
| Length | 4.6 mm (0.181 in) |
| Depth | 6.4 mm (0.252 in) |
| Operating Temperature Range | -40 → +85 °C (-40 to 185 °F) |
| Package Style | PDIP |
| Off State Leakage Current | 50 mA |
