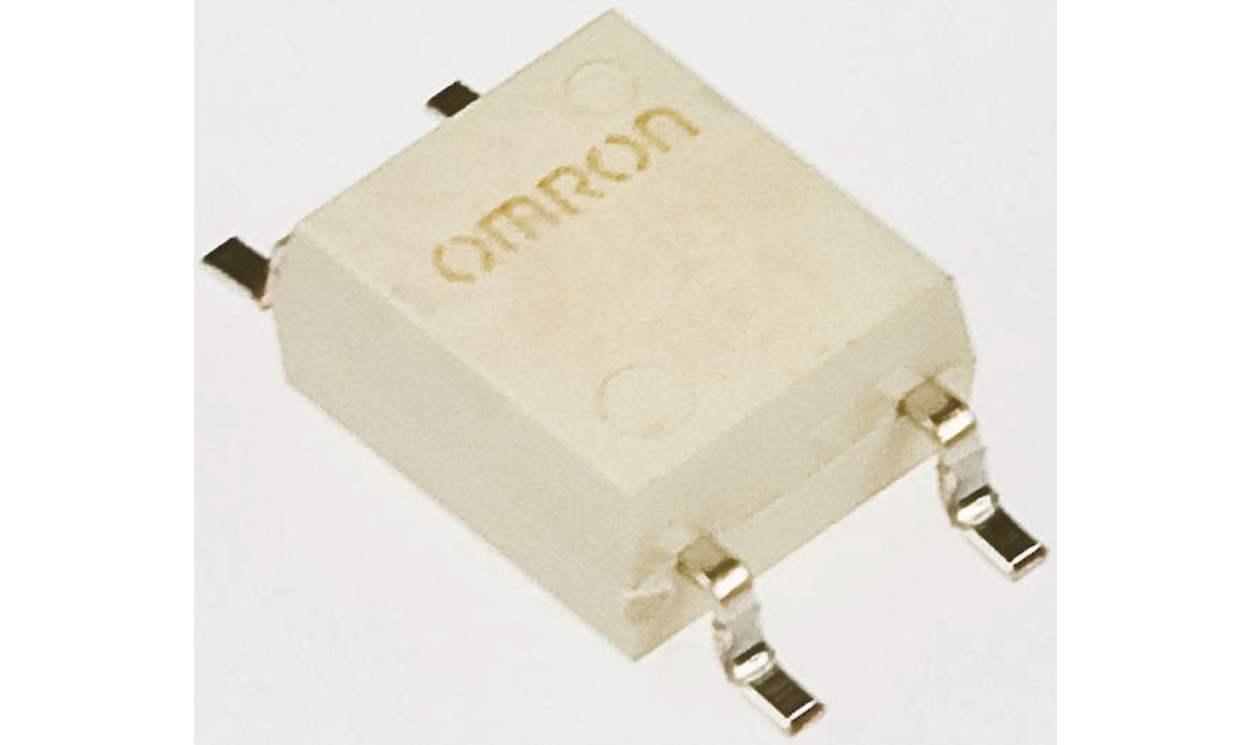

Omron G3VM-353G, G3VM Series Solid State Relay, 90 mA Load, Surface Mount, 350 V Load, 1.3 V Control

Part Number : G3VM-353G

Availability: Sold out

Detailed Description
Specifications

G3VM MOSFET SSR

Solid-state relay with MOSFET output and photo-LED input
Combines advantages of mechanical and solid state technology
Low on-resistance and output capacitance
Long life
Wide range of models available
Ideal for telecom solutions, including line seizing, switching, hook switching, line transformer control and other phone functions

G3VM-353G MOS FET General Purpose Series SSR – Solid State Relay.

The G3VM-353G General purpose MOS FET relay offers a wealth of benefits required from maintenance free relays. NC (normally closed) through hole, SOP package relay with 4-pin PCB relay terminals, high speed and a load voltage of 350 V.

Features and Benefits G3VM-353G General Purpose SSR – Solid Sate Relay.

• MOS FET Solid state relay.
• Surface mounted relay terminals.
• Contact form SPST-NC 1b (normally closed).
• SOP Package.
• 4 Relay terminals.
• Load voltage 350 V ac.
• Load current 120 mA max.
• Maximum resistance with output ON 15 Ω.
• Current leakage when relay is open 1000 nA max.
• Capacitance between terminals 65 pF.
• SSR -Turn ON time 1 ms max.
• SSR -Turn OFF time 3 ms max.
• Dielectric strength between I/O 1500 Vrms.
• Single pole, single throw.
• Switches minute analogue signals.
• Switching AC and DC.
• RoHS Compliant.

Additional Features G3VM-353G General Purpose SSR – Solid State Relay.

• Long operational life.
• Small leakage current.
• SSR has excellent shock resistance.
• High insulation.
• Silent operation.
• High-speed switching.
• Control the micro analogue signal.
• Photo-LED input.
• Status output.
• Compact

Other Application Examples.

• Communication equipment.
• Security equipment.
• Amusement equipment.
• Measurement devices.
• Data loggers.
• Broadband systems.

Brand	Omron
Maximum Load Current	90 mA
Mounting Type	Surface Mount
Maximum Load Voltage	350 V
Maximum Control Voltage	1.3 V
Minimum Load Current	90 mA
Contact Configuration	SPST
Terminal Type	PCB Pin
Output Device	MOSFET
Package Style	SOP4
Series	G3VM
Load Voltage Range	0 → 350V ac
Dimensions	3.9 x 4.4 x 1.9mm
Depth	4.4mm
Length	3.9mm
Operating Temperature Range	-40 → +85°C
Minimum Operating Temperature	-40°C
Height	1.9mm
Maximum Operating Temperature	+85°C
