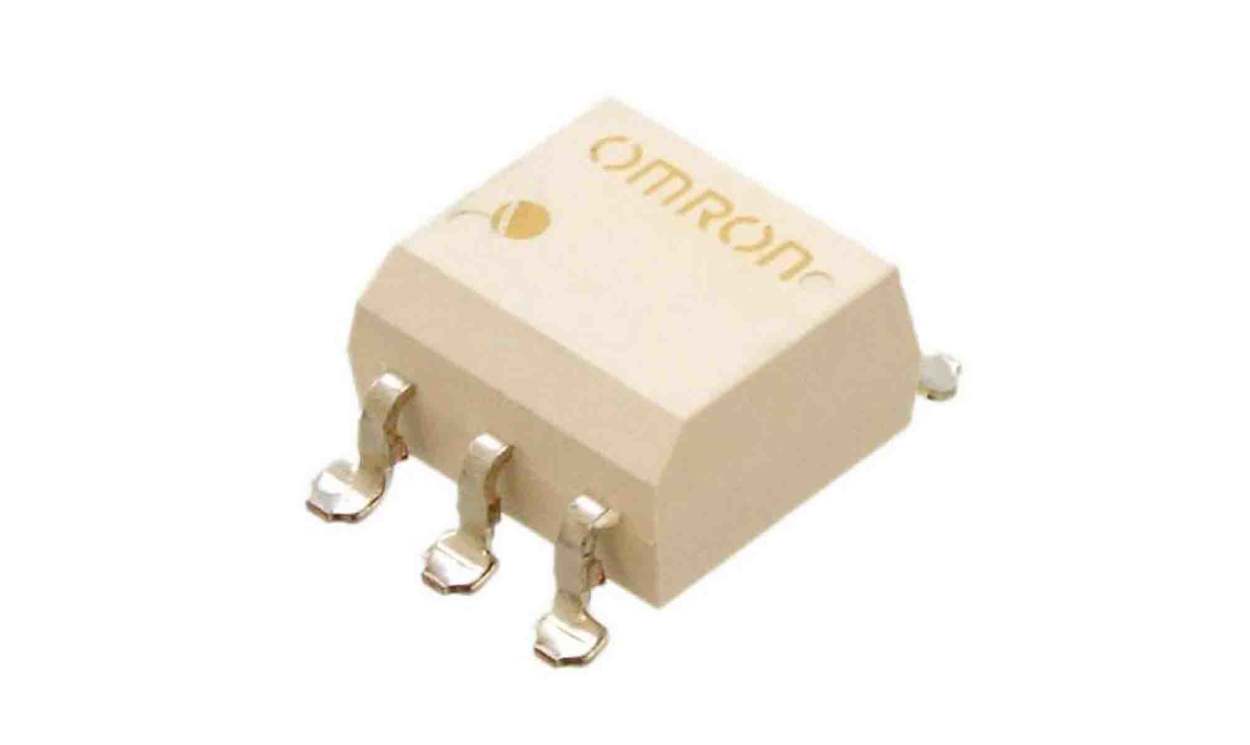

Omron G3VM-41ER, G3VM Series Solid State Relay, 3.5 A Load, Surface Mount, 40 V Load

Part Number : G3VM-41ER

Availability: Sold out

Detailed Description
Specifications

The Omron Electronic Components MOS FET Relays in DIP 6 pin packages that achieve the low ON resistance and high switching capacity of a mechanical relay. This relay can be used in Communication equipment, Test and measurement equipment, Security equipmen

-40 to +85°C ambient operating temperature
-0.3mA/°C LED forward current reduction rate
2500Vrms dielectric strength between Input and Output

Brand	Omron
Maximum Load Current	3.5 A
Mounting Type	Surface Mount
Maximum Load Voltage	40 V
Minimum Load Voltage	1 V
Minimum Load Current	1 A
Range	G3VM
Contact Configuration	SPST
Output Device	MOSFET
Series	G3VM
