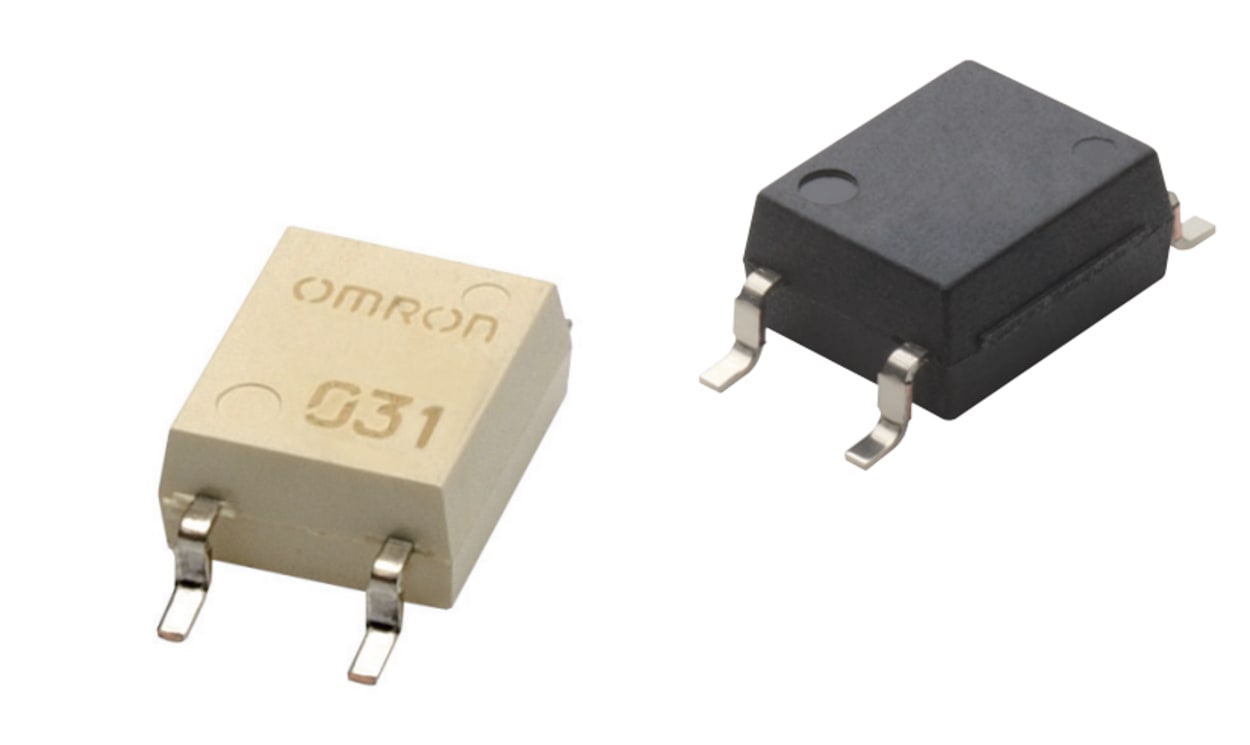

Omron G3VM-61VR, G3VM Series Solid State Relay, 1400 mA Load, Surface Mount, 60 V Load

Name: Omron G3VM-61VR, G3VM Series Solid State Relay, 1400 mA Load, Surface Mount, 60 V Load
Brand: OMRON
SKU: G3VM-61VR
Availability: OutOfStock

Part Number : G3VM-61VR

Availability: Sold out

Detailed Description
Specifications
Downloads

MOS FET Relays featuring the low ON resistance and high switching capacity as a mechanical relay.

Special SOP4-pin package with Dielectric strength AC 3.75 kV
60-V Relay: Continuous load current of 1.4 A max.

Brand	Omron
Maximum Load Current	1400 mA
Mounting Type	Surface Mount
Maximum Load Voltage	60 V
Number of Poles	1
Contact Configuration	SPST
Terminal Type	PCB Pin
Package Style	SOP
Maximum Turn On Time	3ms
Load Voltage Range	60V
Series	G3VM
Dimensions	3.7 x 4.55 x 2mm
Operating Temperature Range	-40 → +110°C
Special Features	60-V Relay: Continuous Load Current of 1.4 A Max, Special SOP4-Pin Package with Dielectric Strength AC 3.75 kV
Depth	4.6mm
Length	3.7mm
Off State Leakage Current	1000nA
Maximum Operating Temperature	+110°C
Capacitance	70pF
Height	2mm

Omron G3VM-61VR, G3VM Series Solid State Relay, 1400 mA Load, Surface Mount, 60 V Load

DOWNLOAD CATALOG
