Omron G6EK-134P-US 12DC, PCB Mount Latching Signal Relay, 12V dc Coil, 3A Switching Current, SPDT

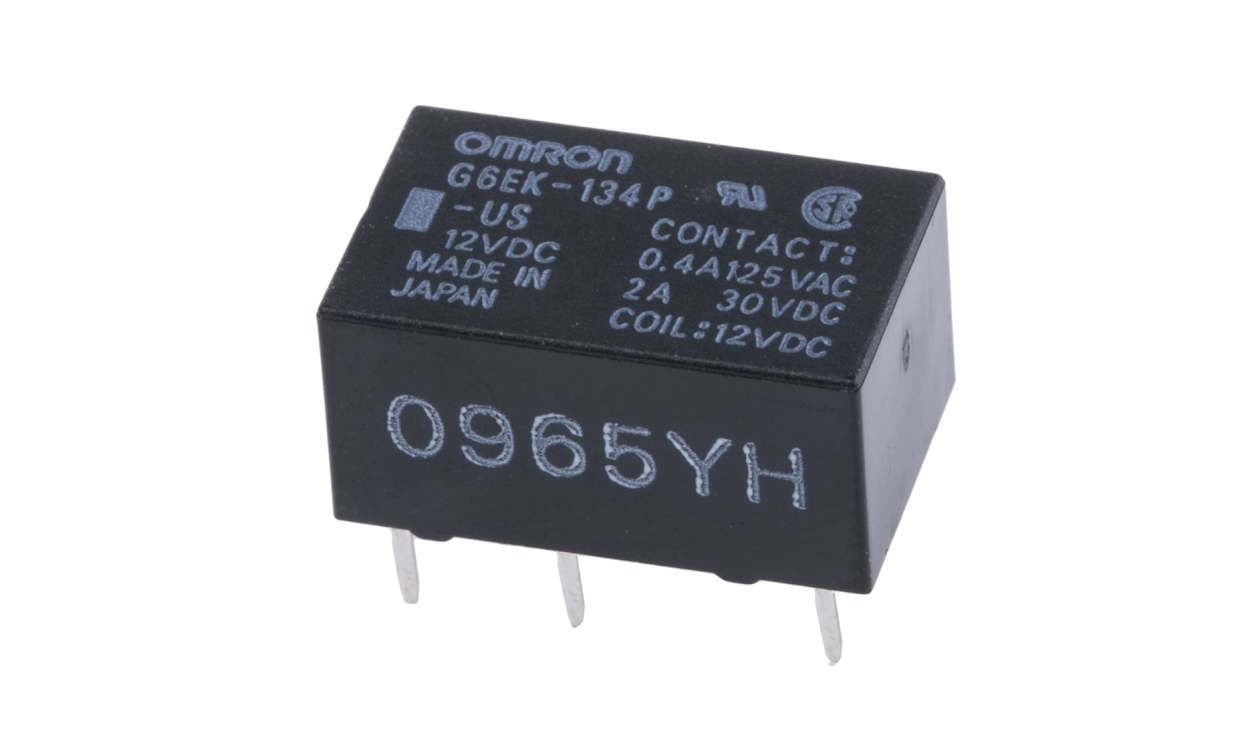

Name: Omron G6EK-134P-US 12DC, PCB Mount Latching Signal Relay, 12V dc Coil, 3A Switching Current, SPDT
Brand: OMRON
SKU: G6EK-134P-US 12DC
Availability: OutOfStock

Part Number : G6EK-134P-US 12DC

Availability: Sold out

Detailed Description
Specifications
Downloads

G6E Series

SPDT subminiature signal switching relays
Fully sealed construction allows immersion cleaning of PCB
High sensitivity
Impulse withstand voltage meets FCC Part 68 requirements

Approvals

UL, CSA

Brand	Omron
Coil Voltage	12V dc
Contact Configuration	SPDT
Mounting Type	PCB Mount
Maximum Switching Current AC	3 A
Maximum Switching Current DC	3 A
Maximum Switching Voltage AC	250V ac
Maximum Switching Voltage DC	220V dc
Maximum Switching Power DC	60 W
Length	16mm
Latching	Yes
Depth	10mm
Height	8mm
Dimensions	16 x 8 x 10mm
Terminal Type	Through Hole
Switching Current	3A
Application	Signal
Minimum Operating Temperature	-40°C
Operating Temperature Range	-40 → +70°C
Isolation Coil To Contact	1.5kV ac
