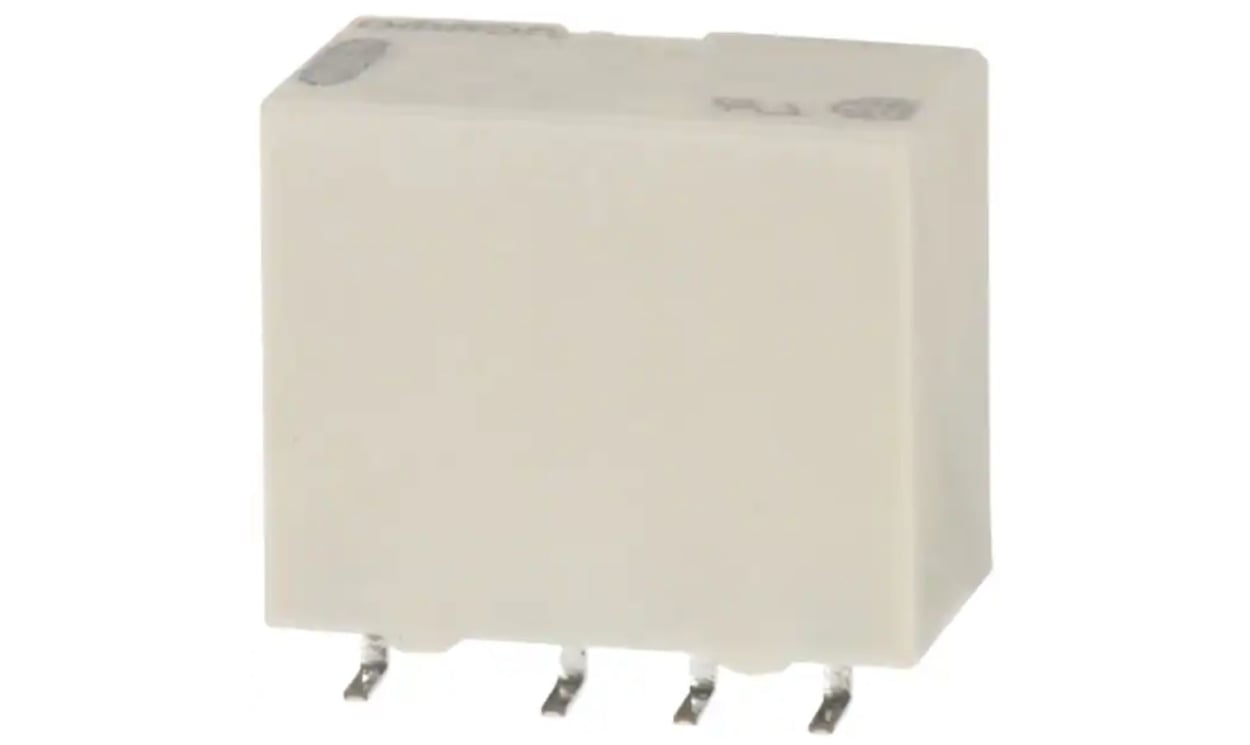

Omron G6J-2FL-Y DC24, Surface Mount Signal Relay, 24V dc Coil, 1A Switching Current, DPDT

Name: Omron G6J-2FL-Y DC24, Surface Mount Signal Relay, 24V dc Coil, 1A Switching Current, DPDT
Brand: General Tech Services LLC
SKU: G6J-2FL-Y DC24
Availability: OutOfStock

Part Number : G6J-2FL-Y DC24

Availability: Sold out

Detailed Description
Specifications

The Omron G6J surface mounting relay has double-pole with 1A Switching current. The G6J surface mounting relay has Surface-mounting terminals long with DPDT contacts type. The G6J surface mounting relay has applications such as Communication equipment, Test & measurement equipment, Office automation equipment, Audio-visual products, Security equipment, Building automation equipment, Industrial equipment and Amusement equipment.

Single-winding latching models to save energy
Single-side stable relay
Fully sealed

Brand	Omron
Coil Voltage	24V dc
Contact Configuration	DPDT
Mounting Type	Surface Mount
Maximum Switching Current DC	1 A
Maximum Switching Voltage AC	125V ac
Maximum Switching Voltage DC	110V dc
Series	G6J
Maximum Switching Power DC	60 W
Length	10.6mm
Latching	No
Depth	5.7mm
Height	9mm
Dimensions	10.6 x 9 x 5.7mm
Terminal Type	Surface Mount
Number of Poles	2
Switching Current	1A
Operating Temperature Range	-40 → +85°C
Coil Resistance	2600Ω
Contact Material	Gold Plated
