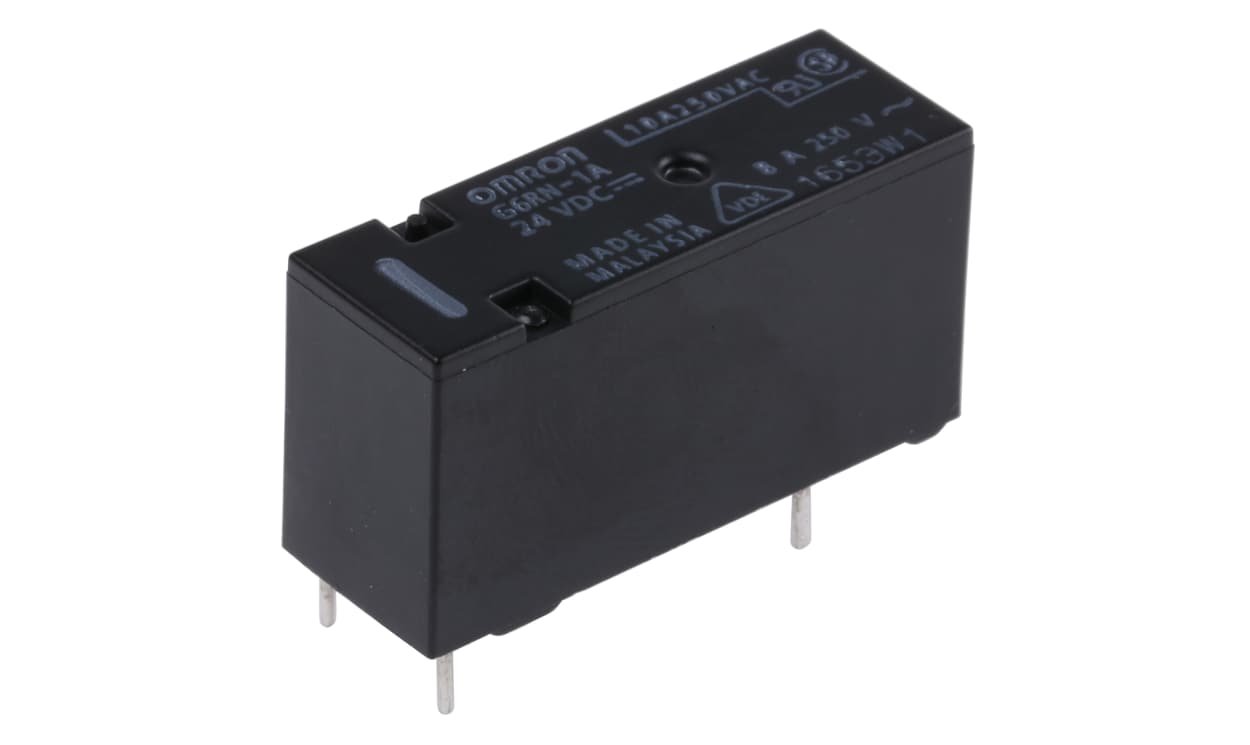

OMRON G6RN-1A DC24 | PCB Mount Power Relay | 24 V DC Coil, 8 A, SPST
Part Number : G6RN-1A DC24
Built around a 24 V DC coil, the OMRON G6RN-1A DC24 PCB-mount non-latching power relay switches up to 8 A through SPST contacts. Here, coil resistance is listed as 2,620 Ω, and maximum switching power is 2 kVA AC / 150 W DC.
- SPST contact configuration, 1 pole
- Contact material: gold plated
- Operating temperature: -40 to +85 °C
- Dimensions (L x D x H): 28.8 x 10.5 x 15.3 mm
- Terminal type: through hole
- Listed application: power
For pricing, please contact our experts.
G6RN Series
Fully sealed
8mm creepage and clearance
Minimum contact load: 100mA @ 5mVdc
Switching Voltage: 250 Vac
Contact Resistance: 50mΩ
Mechanical Life: 10 x 106
Contact Material: AgNi
Operating Temperature: -40 → +85°C
H15, W28.5, D10mm
8mm creepage and clearance
Minimum contact load: 100mA @ 5mVdc
Switching Voltage: 250 Vac
Contact Resistance: 50mΩ
Mechanical Life: 10 x 106
Contact Material: AgNi
Operating Temperature: -40 → +85°C
H15, W28.5, D10mm
Standards
IEC,CENELEC
Approvals
VDE
Approvals
VDE
