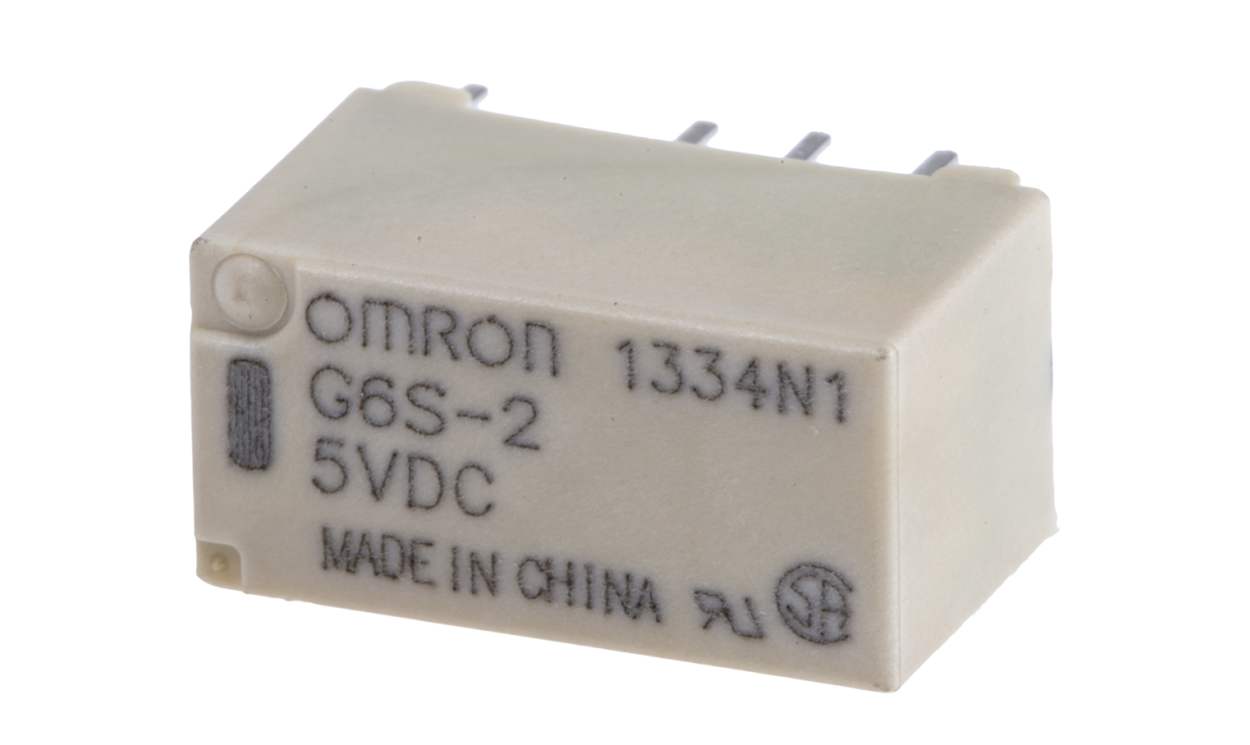

OMRON G6S-2 DC5 | PCB Mount Signal Relay | 5 V DC Coil, DPDT, 2 A
The OMRON G6S-2 DC5 is a PCB-mount signal relay with a 5 V DC coil, DPDT contacts and a 2 A switching current. Ratings for the G6S-2 DC5 include maximum switching voltages of 250 V AC and 220 V DC and a maximum DC switching power of 60 W.
- Coil voltage: 5 V DC
- Contact configuration: DPDT (2 poles)
- Maximum switching voltage: 250 V AC / 220 V DC
- Maximum switching power: 60 W DC
- Dimensions: 14.8 x 9.2 x 7.3 mm
- Operating temperature: -40 to +85 °C
- Detailed Description
- Specifications
- Downloads
G6S Series
High dielectric strength between coil and contacts (2000Vac) and between contacts of different polarity (1500Vac)
High impulse withstand voltages between coil and contacts, and between contacts of different polarity (2500V, 2x10 μs: Bellcore requirements)
Long terminals ideal for soldering and mounting reliability (Surface mounting terminal models)
PCB mount terminal versions now added to the range
High sensitivity with 140 mW rated power consumption
Ultra miniature (H 9.4 mm x W 7.5 mm x L 15mm)
Applicable to IRS using heat resistance material
BSI (EN60950) certified models available (-Y type)
Approvals
| Brand | Omron |
| Series | HFD23 |
| Coil Voltage | 5V dc |
| Contact Configuration | DPDT |
| Mounting Type | PCB Mount |
| Switching Current | 2A |
| Maximum Switching Current DC | 2 A |
| Maximum Switching Voltage AC | 250V |
| Maximum Switching Voltage DC | 220V |
| Maximum Switching Power DC | 60 W |
| Length | 14.8 mm (0.583 in) |
| Latching | No |
| Depth | 7.5 mm (0.295 in) |
| Height | 9.2 mm (0.362 in) |
| Dimensions | 14.8 x 9.2 x 7.3 mm (0.583×0.362×0.287 in) |
| Terminal Type | PCB Pin |
| Number of Poles | 2 |
| Application | Signal |
| Minimum Operating Temperature | -40 °C (-40 °F) |
| Operating Temperature Range | -40 → +85 °C (-40 to 185 °F) |
