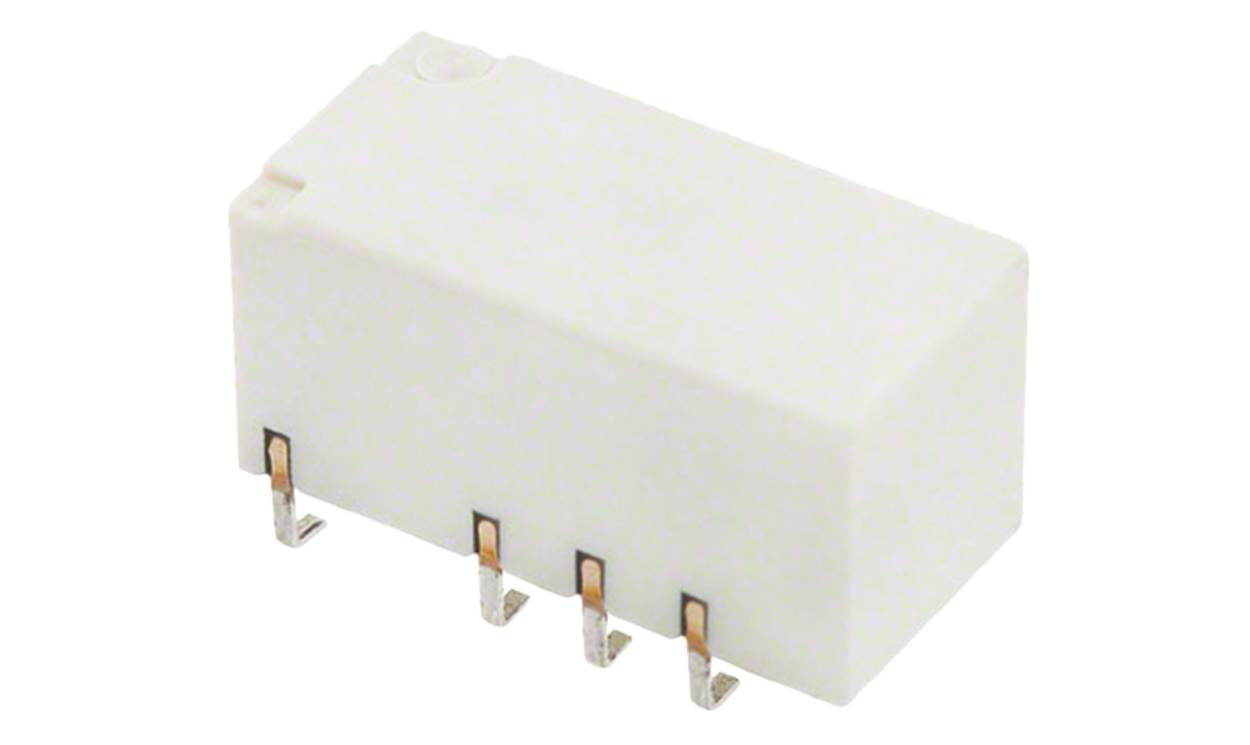

OMRON G6SK-2G DC5 | Surface Mount Latching Signal Relay | 5 V DC Coil, DPDT, 2 A
The OMRON G6SK-2G DC5 is a surface-mount latching signal relay with a 5 V DC coil, DPDT contacts and a 2 A switching current. Ratings for the G6SK-2G DC5 include maximum switching voltages of 250 V AC and 220 V DC, a maximum DC switching power of 60 W and a coil resistance of 125 Ω.
- Coil voltage: 5 V DC
- Contact configuration: DPDT
- Latching type
- Maximum switching voltage: 250 V AC / 220 V DC
- Maximum switching power: 60 W DC
- Maximum switching current: 2 A AC, 2 A DC
- Detailed Description
- Specifications
Omron G6S Series
High dielectric strength between coil and contacts (2000Vac) and between contacts of different polarity (1500Vac)
High impulse withstand voltages between coil and contacts, and between contacts of different polarity (2500V, 2x10 μs: Bellcore requirements)
EN60950/EN41003 supplementary insulation-certified type available, see G6S 2FY types
Approvals

| Brand | Omron |
| Coil Voltage | 5V dc |
| Contact Configuration | DPDT |
| Mounting Type | Surface Mount |
| Switching Current | 2A |
| Maximum Switching Current DC | 2 A |
| Maximum Switching Voltage AC | 250V ac |
| Maximum Switching Voltage DC | 220V dc |
| Maximum Switching Power DC | 60 W |
| Length | 14.8 mm (0.583 in) |
| Latching | Yes |
| Depth | 7.3 mm (0.287 in) |
| Height | 9.2 mm (0.362 in) |
| Dimensions | 14.8 x 7.3 x 9.2 mm (0.583×0.287×0.362 in) |
| Terminal Type | Surface Mount |
| Application | Signal |
| Isolation Coil To Contact | 1kV ac |
| Coil Resistance | 125Ω |
| Maximum Switching Current AC | 2 A |
| Operating Temperature Range | -40 → +70 °C (-40 to 158 °F) |
